The X-Rite i1Display Pro is the ultimate choice for discerning photographers, filmmakers, designers and imaging professionals looking for the highest level of on-screen color accuracy for displays, laptops, mobile devices and projectors. Two user modes (Basic and Advanced) provide serious Color Perfectionists with the perfect combination of unrivaled color precision, speed, options and controls to fit any workflow.

Perfect Color And More Control Than You Ever Thought Possible
Color Perfectionists shouldn’t guess when it comes to on-screen color accuracy. The color you see on your monitor or projector is the color you should expect from your printer. Once you take the guesswork and frustration out of calibrating and profiling your displays, you’ll save time and money while gaining full creative control over your images.

And now, with the ability to change the color grading of video footage growing by leaps and bounds the necessity for accurate color representation on screen is even more paramount. The only way to edit video accurately is to view your footage accurately. With the newly included video color standards you can also make sure that what you see is what you’ll get throughout your digital video workflow.

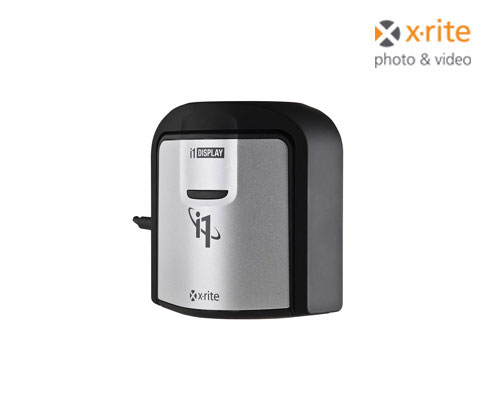

State of the Art Instrument for Unrivaled Color Measurement Accuracy
i1Display incorporates technologically advanced filter and optical systems, amazingly fast measurement speed, and unrivaled color accuracy on all modern display technologies including LED & Wide Gamut LCD displays and mobile devices. It’s also spectrally calibrated, which makes it field upgradeable to support future display technologies.

The ultra-modern ergonomic design incorporates three functions – ambient light measurement, monitor profiling, and projector profiling – into a very sleek, compact and fully integrated device with no parts to misplace.

Intuitive all-in-one design is very easy to use
Blazing fast speed – measures 5X faster than previous devices
Compact and self-contained for maximum portability
Custom designed RGB filter set provides accurate color measurements
Refined optical design allows for high repeatability on the same display and across different display types for more consistent color matching
Rotatable diffuser arm can be used as a stand for table top projector profiling, ambient light measurement, and as a cover for instrument optics
Conveniently integrated tripod mount for projector profiling in larger venues

i1Profiler Software with “Basic” and “Advanced” Mode Flexibility
The next generation of our top of the line color management software offers the ultimate in flexibility and control. “Basic” mode offers a wizard driven interface with predefined options for the quickest path to professional on-screen color. “Advanced” mode offers user-defined options for more sophisticated profiling workflows to deliver the highest quality color results on monitors and projectors, as well as display testing and quality assurance tools. No matter which mode you use, you’ll be able to attain professional color results for a more perfect match between your display and printer.

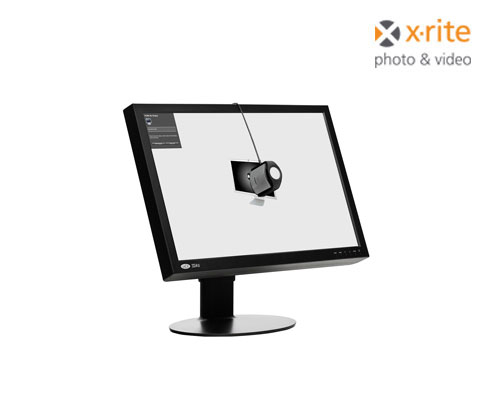

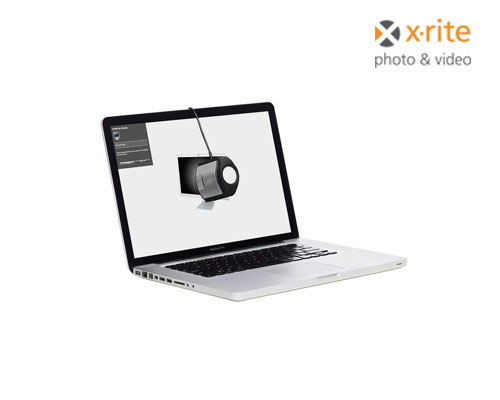

Monitor Profiling
Calibrate and profile all modern laptop and desktop monitor technologies, such as LED, Plasma, RG Phosphor, OLED and Wide Gamut
Infinite control of white point, luminance, contrast ratio, gamma and more
Broadcast video standards support – NTSC, PAL SECAM, Rec. 709, Rec. 2020 and DCI-P3
Ambient Light Measurement – automatically determine the optimum display luminance for comparing prints to your display, based on a measurement of the lighting conditions where prints will be viewed
Ambient Light Smart Control – the intensity or amount of ambient light surrounding your workspace affects the way you perceive colors on your display. i1Display Pro can compensate for this effect and provide the option to automatically adjust your profile or simply notify you as ambient light conditions change
Flare Correct™ measures and adjusts your display profile for reduced contrast ratios caused by flare light (or glare) falling on surface of display. By accurately measuring your effective display contrast ratio, you’ll have an even more accurate display profile
Intelligent Iterative Profiling, an adaptive technology that produces optimized results for maximum color accuracy on each unique display every time you profile
3 patch set sizes – small, medium, or large – allow you to increase your profile accuracy by measuring a higher number of patches
Profile optimization – create custom patch sets to optimize your profiles by choosing a combination of patch set size, extracted colors from specific images and/or PANTONE spot colors selected from the included PANTONE Color Manager software
Automatic Display Control (ADC) technology automates the adjustment of your display’s hardware (brightness/backlight, contrast, and color temperature) to speed up the profiling process and eliminate manual adjustments
Workflow Flexibility – advanced user-defined controls support more sophisticated workflows. For example, White Point can be set from predefined values, custom xy values, based on measurement of ambient light, based on measurement of another display, or from previously measured values, etc.
Multiple Display and Workgroup Matching – re-use profile settings on multiple displays connected to the same computer or to multiple computers within a workgroup
Before and after images show instant results – using one of our images or your own
Profile reminder notifies you when it is time to re-profile your display
Easy to follow on-screen help guides and videos – no extra manuals needed

Projector Profiling
Quickly and accurately create projector profiles to show your images on the big screen with color confidence
Intelligent adaptive profiling technology for maximum color accuracy from each unique projector
Compact device for maximum portability on location
Diffuser arm adjusts to a stand for table top applications
Conveniently integrated tripod mount for larger venues

Display QA Workflow
Visual validation using pre-defined and user defined images
Measurement based validation using industry standard targets and reference data sets (SWOP, Gracol, Fogra, etc.)
Measurement based validation using PANTONE color and libraries
Measurement based validation using colors extracted from user defined images
User defined PASS/FAIL deltaE tolerance for average and maximum values
Color accuracy trending over time (per connected display)

Display Uniformity Test
Measure white point and luminance uniformity over 9 locations on display
User defined PASS/FAIL tolerance

ColorTRUE Mobile App Support
i1Display Pro is supported in X-Rite ColorTRUE mobile app. This free app extends your calibration power to profile mobile phones and tablets. In just minutes, you’ll achieve the perfect mobile to desktop color match.
