Description |
Productive wide format B&W print / copy / scan system |
|
Technology |
LED - Océ Radiant Fusing |
|
Speed |
B&W: |
4.7A0/min. |
|
Warm-up Time |
Instant On |
|
Configuration |
Printer, multifunction with 1 printer and choice of 3 scanners |
|
Roll Options |
2 roll + cut sheet tray default - up to 6 roll upgrade |
|
Output Delivery |
Top integrated receiving tray (other options available) |
|
Certifications |
ENERGY STAR@, TuV GS, CETECOM, CE, UL, cUL, RoHS |
Printer
|
|
|
Print Resolution |
True 600 x 1200dpi |
|
Paper Capacity |
Up to 200m per roll, max. 6 rolls |
|
Output Sizes Width |
210 - 914mm |
|
Output Sizes Length |
297mm - 150m |
|
Paper Weight |
75 -100g/m2 |
Media Type
(www.mediaguide.oce.com) |
Plain, transparent, recycled, coloured papers, films and vellums |
|
|
|
|
Controller Type |
Océ Power Logic Controller |
|
Memory |
Standard 2GB |
|
Hard Drive |
2 x 250GB |
|
Page Description Language |
HPGL, HPGL2, TIFF, JPEG, DWF, Adobe PostScript 3 / PDF, CALS-I, Nirs, ASCII, CalComp, C4 |
|
|
|
|

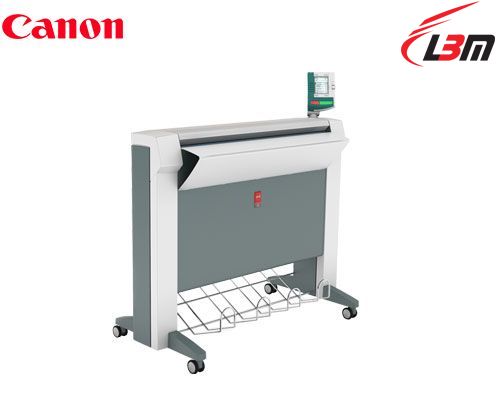

Scanner Type |
Océ Direct Scan Colour technology (single camera, single mirror) |
|
Scan Resolution |
Optical 575dpi, max. 600dpi |
|
Scan Speed |
B&W: |
3m/min. up to 5m/min. |
|
Colour: |
1m/min. up to 4m/min. |
|
Scan Format |
TIFF, PDF / A, JPEG, CALS, multi-page PDF / A and TIFF |
|
Scan Destination |
FTP, Network Directory, Controller |
|
Original Size Width / Length |
200 - 1016mm / 200mm - 22m |
|
Original Thickness |
Up to 3mm (optional scanner up to 15mm) |
|
Scaling |
10 - 1000% |
|
Preset Modes |
Lines & Text, Photo, Greys & lines, Dark original, Blueprint |
Print, Copy and Scan Workflow
|
|
|
General Workflow |
Concurrent print, copy, scan and file processing |
|
Submission |
Print Exec Basic (standard) |
|
Job Management |
Print and history queue, inbox, manage queue, remote monitor
Secure controller access / rights |
|
Accounting |
Standard, Océ Account Console (optional) |
|
Templates |
5 copy & scan templates, unlimited print templates |
Options
|
|
|
Hardware |
Océ TC4 Colour Scanner, Océ TDS600 Scanner, Océ CS4336
Online Folder, Copy Delivery Tray, Double Decker Stacker
2 roll loaders |
|
Software |
Adobe PS3 / PDF
Océ ReproDesk
Express Software Bundle
Professional Software Bundle |
|
|
|
|
Client Operating System Support |
Windows XP / Vista / 7 / server2003 / server 2008 / Terminal Server / Citrix Metaframe
MAC OS9 / X (Adobe PS3 driver) |
|
Standard Interface |
10 / 100 BaseT with RJ4 |
|
Network Protocols |
TCP/IP, SMB (for scan-to-file only), IPV6, IPX/SPX, FTP, LPD |
Additional Information
|
|
|
Power Consumption Active Mode (printing) |
1560W |
|
Power Consumption Ready Mode (standby) |
108W |
|
Power Consumption Sleep Mode |
61W |
|
Power Requirements (V / Hz / Ams) |
100 - 120V, 200 - 230V, 50 / 60Hz |
|
Noise Level (Active / Ready) |
58dB (A) / 18dB (A) |
|
Size Print Engine |
144 x 80 x 147.5cm |
|
Weight Print Engine |
290kg |
|
Size Scanner |
130 x 65 x 130cm |
|
Weight Scanner |
70kg |
Supplies
|
|
|
Consumable Type |
TDS700 / TDS750 Toner |
|
Size / Yield |
1000g per carton |
