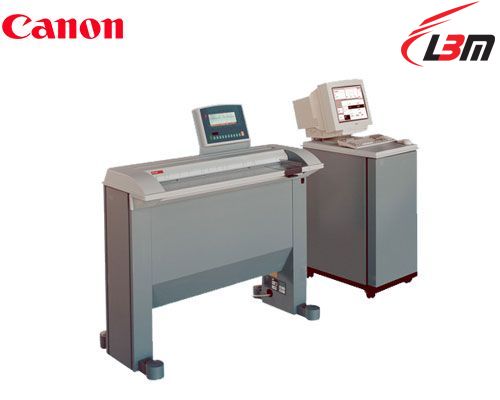

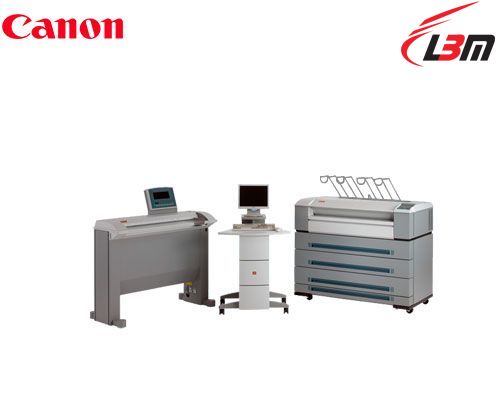

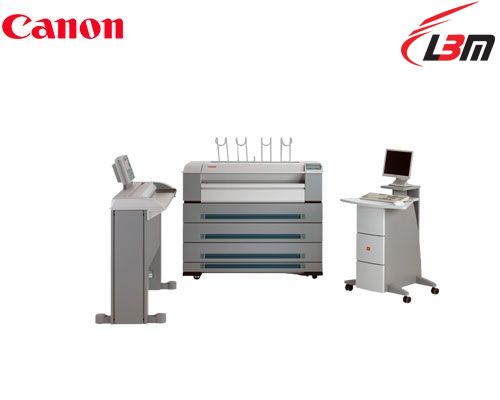

| Description | Versatile wide format monochrome print, copy and scan system |
| Technology | LED - Océ Radiant Fusing |
| Speed | 4 A0/min. |
| Warm-up Time | Instant On |
| Configuration | Printer, Multifunction with 1 printer and 1 scanner |
| Roll Options | 4 rolls plus cut sheet tray |
| Output Delivery | Integrated receiving tray - top (other options available) |
| Certifications | ENERGY STAR@, TuV GS, CETECOM, CE, UL, cUL, CB, FCC Class B, RoHS |
Printer | |
| Print Resolution | True 400 x 800dpi |
| Paper Capacity | Up to 150m per roll, maximum 4 rolls |
| Output Sizes Width | 296 - 914mm |
| Output Sizes Length | 297mm - 15m |
| Paper Weight | 75 -100g/m2 |
| Media Type | Plain, transparent, recycled, coloured papers, films and vellums |
| | |
| Controller Type | Power Logic Controller with embedded Windows XP |
| Memory | 2GB |
| Hard Drive | 250GB |
| Page Description Language | HPGL, HPGL2, CalComp, TIFF, CALS-I, Adobe PS 3 / PDF (optional) |
| | |
| Scanner Type | B&W scanner - CCD with Océ Image Logic |
| Scan Resolution | 400dpi |
| Scan Speed | 5m/min. |
| Scan Format | TIFF (uncompressed, G3, G4), PDF, CALS |
| Scan Destination | FTP, Network Directory, Controller |
| Original Size Width / Length | 210 -1020mm / 150 - 15mm |
| Original Thickness | 3mm |
| Scaling | 25 - 400% |
| Preset Modes | Photo, grays & lines, dark original, blueprint, printed matter |
Print, Copy and Scan Workflow | |
| General Workflow | Concurrent print, copy, scan and file processing |
| Submission | Océ Print Exec Workgroup |
| Job Management | Print and history queue, inbox, manage queue, secure user rights management
Océ Remote Logic® for remote job management |
| Templates | 4 copy & scan templates, unlimited print templates |
Options | |
| Hardware Options | Folder, stacker and Océ Image Logic scanner |
| Software | Océ Repro Desk
Adobe PS 3 / PDF |
| | |
| Client Operating System Support | Windows XP / Vista / server2003 / Terminal Server / Citrix Metaframe (WPD)
MAC OS9 / X (Adobe PS3 driver) |
| Standard Interface | 10 / 100BaseT with RJ4 |
| Network / Printing Protocols | TCP/IP, SMB (for scan-to-file only), IPX/SPX, FTP, LPD |
Additional Information | |
| Power Consumption Active Mode (printing) | 1470W |
| Power Consumption Ready Mode (standby) | 50W |
| Power Consumption Sleep Mode | 15W |
| Power Requirements (V / Hz / Ams) | 100 - 120V, 200 - 240V, 50 / 60Hz |
| Noise Level (Active / Ready) | 55dB (A) / 28dB (A) |
| Size Print Engine | 147 x 140 x 75.3cm |
| Weight Print Engine | 250kg |
| Size Scanner | 135.3 x 131.4 x 58.3cm |
| Weight Scanner | 90kg |
Supplies | |
| Consumable Type | B5 Toner |
