Tính năng

Effortless, cloud integrated plotting and scanning

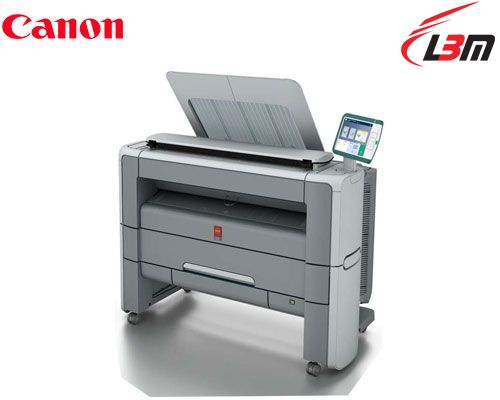

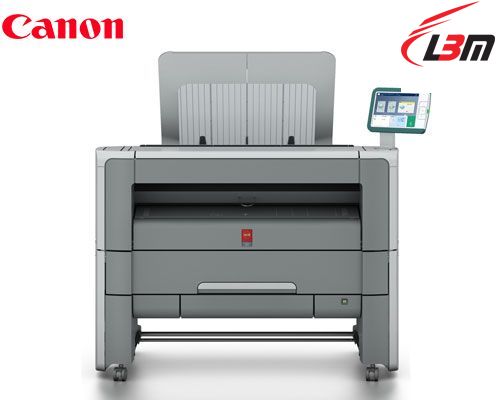

With instant printing, full cloud integration and ClearConnect multi-touch panel access, the Océ PlotWave 360 is the ideal all-in-one large format B&W plotter for project drawings and technical documents.

Benefits

Easy ClearConnect multi-touch operation
Full cloud integration
Up to 6 A1 plots per minute
Instant start-up and print with Océ Radiant Fusing
Colour scanning
Reliable 600 x 1200 dpi B&W printing
Efficient folding & document delivery
Energy efficient

Detailed Features

Multi-touch user access

Operation is as easy as using a tablet thanks to the Océ ClearConnect multi-touch user panel. Crisp and clear it allows you to effortlessly pan, zoom, swipe, spread and more. Pull up a document, zoom and pan to different areas – even preview live while scanning or copying to avoid errors.

Full cloud integration

Wherever documents reside, you and your project team are always able to share and work with them. Print from and scan to a cloud, mobile phone, tablet, USB flash drive or your network.

High-speed instant printing

The Océ PlotWave 360 prints at a productive 6 A1 plots per minute – making it ideal for all your project drawings and technical documents. And thanks to Océ Radiant Fusing technology, there is virtually no warm-up time. This means your first print is in-hand in just 40 seconds – unlike the typical 4 minutes or so associated with traditional B&W toner plotters.

Colour scanning

Océ Colour Image Logic® is incorporated which ensures dependable, high quality scans every time – automatically compensating for wrinkles and light colours. Originals are inserted face-up and the paper width is automatically detected.

Reliable, high quality performance

With a robust construction, count on high quality prints over the system’s lifetime with high resolution 600 x 1200 dpi. The powerful Océ PowerM® embedded controller ensures that jobs are processed at speeds in-line with the plotter – so even complex files never leave you waiting around.

Practical and time-saving

For simplicity, rolls are placed on the built-in roll loading station, fed into the printer and automatically cut and sized. When printing, up to 50 A0-size plots can be collated and neatly stacked in the top delivery tray, completely separate from the original tray. And to help keep your desk free from clutter, folding options are available to make plan sizes more manageable.

Energy efficient

The Océ Radiant Fusing technology means the plotter only heats up when printing. When idle it remains cold, consuming almost zero energy. It is also virtually ozone free and extremely quiet, allowing it to fit comfortably into office workgroups.

Thông số kỹ thuật

Chi tiết

ẨnHiện

General
Description	Monochrome all-in-one wide format print / copy / scan system with colour scanner
Technology	Electrophotography (LED) with organic photoconductor (OPC) and clean closed toner system, Océ Radiant Fusing
Speed	Black & white: Océ PlotWave 340: 4 ppm (A1 / D-size) Océ PlotWave 360: 6 ppm (A1 / D-size)
First Print Out Time	31secs. (A1 / D-size)
Warm-up Time	Instant with Océ Radiant Fusing technology
Roll Options	1 - 2 rolls plus manual feed
Output Delivery	Compact and ergonomic top delivery tray with air separation; up to 50 A0 plots collated
Certifications	EPA ENERGY STAR®, FEMP, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class A, RoHS
Printer
Print Resolution	600 x 1200dpi
Paper Capacity	Up to 200m per roll, maximum 2 rolls
Output Sizes Width	297 - 914mm
Output Sizes Length	0.42 - 176m for long plots
Paper Weight	60 -110g/m2
Media Type (www.mediaguide.oce.com)	Paper:	plain, recycled, coloured and transparent
	Film:	polyester, antistatic and contrast
Controller
Controller Type	Océ PowerM controller with Windows® 7 Embedded
Memory	4GB DDR2
Hard Drive	500GB
Page Description Language	HP-GL, HP-GL/2, TIFF, JPEG, DWF, PS / PDF option, CALS, NIFF, NIRS, Calcomp 906 / 907 / 951, C4
Scanner
Scanner Type	Contact Image Sensor (CIS) with Océ Colour Image Logic technology
Scan Resolution	600 x 600dpi resolution
Scan Speed	9.7 m/min. (copying) 14.6 m/min. (Black & white scanning) 4.8 m/min. (Color scanning)
Scan Format	TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF
Scan Destination	Local USB flash drive, FTP, SMB, Cloud, Controller, mobile device via Océ Mobile WebTools
Original Size	Width:	208 - 914mm (maximum image width 914mm)
	Length:	208mm - 16m
Original Thickness	Up to 0.8mm (non-rigid documents)
Scaling	Scale to standard format, custom scale 10 - 1000%
Preset Modes	Lines & text, lines & text draft, folded line & text, coloured, photo, dark originals, blueprint
Print, Copy and Scan Workflow
General Workflow	Concurrent print, copy and scan of single documents or sets
Submission	Single files:	Local USB flash drive, Océ Mobile WebTools, local USB flash drive, Microsoft® certified Océ Windows Printer Driver 2.0, Océ PostScript® 3 driver
	Sets of files:	local USB flash drive, web-based job submission Océ Publisher Express, advanced Windows based job submission Océ Publisher Select
	Océ Express WebTools:	Single interface to view and control the system via an Internet browser without installing additional software
	Océ Mobile WebTools:	Submit files from your Mobile device or retrieve scanned files from the inbox
Job Management	Monitor and manage the system status, print jobs, settings, network configurations, updates, remote shutdown & restart. Includes personal smart inbox.
Accounting	Optional customizable print, copy and scan tracking with Océ Account Center Enables recurring tasks to be performed at the touch of a single button Four user-defined copy & scan templates
Options
Hardware	Océ Scanner Express, integrated on top colour scanner for copying and scanning Additional roll unit (maximum 2 rolls) Front original tray for productive copying and scanning Océ estefold 2400 inline fanfolder: automated fan-fold, manual cross-fold
Software	Adobe® PostScript 3 / PDF file interpreter Enables the submission of PDF files with USB flash drive or job submission tools directly to the printer Océ Repro Desk Studio for easy viewing, printing and job accounting, Mobile submission via ReproDesk Web Client Océ Repro Desk Select / Professional print production software for job printers and reprographers Océ Client tools for viewing and printing
Network Information
Client Operating System Support	Certified Océ Windows Printer Driver for 2.0 for Windows 7 (32 and 64 bits), Windows Vista, Windows XP, Windows Server 2003 & 2008, Windows Terminal Server, Citrix MetaFrame and Presentation Server Océ PostScript 3 for Windows 7, Windows Vista, Windows XP and Windows Server 2003 & 2008, Mac OS X Océ Publisher Select for Windows 7, Windows Vista, Windows XP and Windows Server 2003 Océ Express WebTools for Windows Internet Explorer and Mozilla® Firefox® Océ Mobile WebTools for IOS (need a web browser with an embedded file system, iCab Mobile), Android, Symbian and BlackBerry
Standard Interface	Ethernet 100Mbits/s, 1Gbits/s.
Network Protocols	TCP/IP (IPv4), TCP/IP (IPv6), IPsec, SNMP
Printing Protocols	LPR, Novell®NDPS, FTP
Scanning Protocols	FTP, SMB
Security	Electronic file shredding permanently removes all traces of deleted jobs on the controller Complies with DoD 522-22M standard IPsec secures Internet Protocol communications between the client and the printer
Environment Data
Power Consumption Active Mode (printing)	1.4kW (printer + scanner + controller)
Power Consumption Ready Mode (standby)	88W (printer + scanner + controller)
Power Consumption Sleep Mode	41W (printer + scanner + controller) EPA ENERGY STAR
Power Requirements (V / Hz / A)	100 - 240V, 50 / 60Hz, 20 - 10A (20A for < 150V)
Energy Consumption Per Print	45Wh/A0 calculated average based on an A0-size print and EPA ENERGY STAR TEC method
Sound Pressure Active Mode (printing)	58dB(A) measured at operator level conform ISO norm 7779
Sound Pressure Ready Mode (standby)	26dB(A) measured at operator level conform ISO norm 7779
Ozone Concentrations	0.001mg/m3 (< 0.0005ppm) in a 25m3 room with natural ventilation conform ISO norm 28360
Recyclability Hardware	Made of steel or highly recyclable plastics:	Up to 95% of the engine can either be upcycled or recycled. Remaining 5% are non toxic waste.
Recyclability Toner	Bottles made of highly recyclable HDPE (High Density Polyethyle)
Size Print Engine (W x D x H)	1527 x 800 x 1495mm including top delivery tray
Weight Print Engine	180kg
Size Scanner (W x D x H)	1097 x 308 x 140mm fits on top of print engine
Weight Scanner	24.5kg
Supplies
Consumable Type	Océ black toner
Size	Bottle of 0.4kg
