Description |

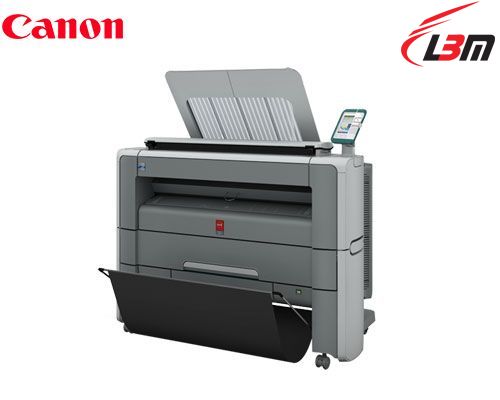

Monochrome all-in-one wide format print / copy / scan system with colour scanner |
|
Technology |
Electrophotography (LED) with organic photoconductor (OPC) and clean closed toner system, Océ Radiant Fusing |
|
Speed |
3.1 A0 per minute; 5.9 A1 per minute |
|
First Print Out Time |
31secs. for an A1 |
|
First Pint Out Time From Cold Sleep |
40secs. for an A1
Low energy consumption, low heat emission |
|
Interpage Distance |
Variable interpage distance per print job to optimize the productivity |
|
Warm-up Time |
Instant with Océ Radiant Fusing technology |
|
Roll Options |
1 - 2 rolls plus manual feed |
|
Output Delivery |
Compact and ergonomic top delivery tray with air separation; up to 50 A0 plots collated |
|
Certifications |
EPA ENERGY STAR®, FEMP, TuV GS, CETECOM, CE, UL, cUL, FCC Class A, RoHS |
Printer
|
|
|
Print Resolution |
True 600 x 1200dpi |
|
Paper Capacity |
Up to 200m per roll, maximum 2 rolls |
|
Output Sizes Width |
279 - 914mm |
|
Output Sizes Length |
0.42 - 176m for long plots |
|
Paper Weight |
60 -110g/m2 |
Media Type
(www.mediaguide.oce.com) |
Paper: |
plain, recycled, coloured and transparent |
|
Film: |
polyester, antistatic and contrast |
|
|
|
|
Controller Type |
Embedded powerM with Windows® Xpe |
|
Memory |
1GB |
|
Hard Drive |
160GB |
|
Page Description Language |
HP-GL, HP-GL/2, TIFF, JPEG, DWF, PS / PDF option, CALS, NIFF, NIRS, ASCII, Calcomp 906 / 907 / 951, C4 |
|
|
|
|
Scanner Type |
Contact Image Sensor (CIS) with Océ Colour Image Logic technology |
|
Scan Resolution |
600 x 600dpi optical resolution |
|
Scan Speed |
Up to 7m/min. (copying), 11.7m/min. (monochrome scanning) and 3.9m/min. (colour scanning) |
|
Scan Format |
TIFF, PDF, PDF-A, JPEG, CALS, Multipage TIFF, PDF, PDF-A |
|
Scan Destination |
Local USB flash drive, controller, network via FTP or SMB (10 programmable destinations),
mobile device via Océ Mobile WebTools |
|
Original Size |
width / length 208mm - 965mm (maximum image width 914mm) / 208mm - 16m |
|
Original Thickness |
Up to 0.8mm (non-rigid documents) |
|
Scaling |
Scale to standard format, custom scale 10 - 1000% |
|
Preset Modes |
Lines & text, lines & text draft, folded line & text, coloured, photo, dark originals, blueprint |
Print, Copy and Scan Workflow
|
|
|
General Workflow |
Concurrent print, copy and scan of single documents or sets |
|
Submission |
Single files: |
Local USB flash drive, Océ Mobile WebTools, local USB flash drive,
Microsoft® certified Océ Windows Printer Driver 2.0, Océ PostScript® 3 driver |
|
Sets of files: |
local USB flash drive, web-based job submission Océ Publisher Express, advanced
Windows based job submission Océ Publisher Select |
|
Océ Express WebTools: |
Single interface to view and control the system via an Internet browser without installing additional software |
|
Océ Mobile WebTools: |
Submit files from your Mobile device or retreive scanned files from the inbox |
|
Job Management |
Monitor and manage the system status, print jobs, settings, network configurations, updates, remote shutdown & restart. Includes personal smart inbox. |
|
Accounting |
-
Optional customizable print, copy and scan tracking with Océ Account Center
-
Enables recurring tasks to be performed at the touch of a single button
-
Four user-defined copy & scan templates
|
|
Templates |
4 |
Options
|
|
|
Hardware |
-
Océ Scanner Express, integrated on top colour scanner for copying and scanning
-
Additional roll unit (maximum 2 rolls)
-
Front original tray for productive copying and scanning
-
Océ estefold 2400 inline fanfolder: automated fan-fold, manual cross-fold
|
|
Software |
-
Adobe® PostScript 3 / PDF file interpreter
-
Enables the submission of PDF files with USB flash drive or job submission tools directly to the printer
-
Océ Repro Desk Studio for easy viewing, printing and job accounting, Mobile submission via ReproDesk Web Client
-
Océ Repro Desk Select / Professional print production software for job printers and reprographers
-
Oce Client tools for viewing and printing
|
|
|
|
|
Client Operating System Support |
-
Certified Océ Windows Printer Driver for 2.0 for Windows 7 (32 and 64 bits), Windows Vista, Windows XP, Windows Server 2003 & 2008, Windows Terminal Server, Citrix MetaFrame and Presentation Server
-
Océ PostScript 3 for Windows 7, Windows Vista, Windows XP and Windows Server 2003 & 2008, Mac OS X
-
Océ Publisher Select for Windows 7, Windows Vista, Windows XP and Windows Server 2003
-
Océ Express WebTools for Windows Internet Explorer and Mozilla® Firefox®
-
Océ Mobile WebTools for IOS (need a web browser with an embedded file system, iCab Mobile), Android, Symbian and BlackBerry
|
|
Standard Interface |
Ethernet 100Mbits/s, 1Gbits/s. |
|
Network Protocols |
TCP/IP (IPv4), TCP/IP (IPv6), IPsec, SNMP |
|
Printing Protocols |
LPR, Novell®NDPS, FTP |
|
Scanning Protocols |
FTP, SMB |
|
Security |
-
Electronic file shredding permanently removes all traces of deleted jobs on the controller
-
Complies with DoD 522-22M standard
-
IPsec secures Internet Protocol communications between the client and the printer
|
Environment Data
|
|
|
Power Consumption Active Mode (printing) |
1.4kW (printer + scanner + controller) |
|
Power Consumption Ready Mode (standby) |
88W (printer + scanner + controller) |
|
Power Consumption Sleep Mode |
41W (printer + scanner + controller) EPA ENERGY STAR |
|
Power Requirements (V / Hz / A) |
100 - 240V, 50 / 60Hz, 20 - 10A (20A for < 150V) |
|
Energy Consumption Per Print |
45Wh/A0 calculated average based on an A0-size print and EPA ENERGY STAR TEC method |
|
Sound Pressure Active Mode (printing) |
58dB(A) measured at operator level conform ISO norm 7779 |
|
Sound Pressure Ready Mode (standby) |
26dB(A) measured at operator level conform ISO norm 7779 |
|
Ozone Concentrations |
0.001mg/m3 (< 0.0005ppm) in a 25m3 room with natural ventilation conform ISO norm 28360 |
|
Recyclability Hardware |
Made of steel or highly recyclable plastics: |
Up to 95% of the engine can either be upcycled or recycled.
Remaining 5% are non toxic waste. |
|
Recyclability Toner |
Bottles made of highly recyclable HDPE (High Density Polyethyle) |
|
Size Print Engine (W x D x H) |
1527 x 800 x 1495mm including top delivery tray |
|
Weight Print Engine |
180kg |
|
Size Scanner (W x D x H) |
1097 x 308 x 140mm fits on top of print engine |
|
Weight Scanner |
24.5kg |
Supplies
|
|
|
Consumable Type |
Océ black toner |
|
Size |
Bottle of 0.4kg |
