Machine Type UV flatbed printer
Image Technology
  • Piezoelectric inkjet using Océ VariaDot® Imaging Technology
  • 1272 piezoelectric nozzles per colour
Resolution Near-photographic image quality, perfect text as small as 6-pt in size

System Design

Flatbed True flatbed architecture for printing to rigid media or objects
Roll media Roll Media Option for flexible media

Ink System

  • UV curable inks in quick-exchange ink bags
  • Black, Cyan, Magenta, Yellow in two liter bags
  • White and Varnish UV curable ink packaged in one liter
Ink configuration CMYK & CM2, or
CMYK & White, Varnish, or
CMYK & Double White

Print Speed

Print Speed Print Mode Flatbed
Roll Media Option (m2/hr)
Express mode 64.7 43.3
Production-Squared mode (*) 49.7 38.1
Production-Smooth mode (*) 40.0 28.7
Quality-Squared mode 33.3 25.3
Quality-Density mode (2 layers) 15.4 11.7
Fine Art mode 22.4 17.0
White Ink, 2-layer (**) 13.9 10.5


Rigid Media Size 2.50m x 3.05m x 50.8mm thick
Rigid Media Printing Width 2.51m x 3.06m, edge-to-edge printing (full bleed)
Roll Media Width 0.9m to 2.2m wide
Roll Media Printing Width 2.19m max.
Media Assortment Canon provides a complete assortment of roll-based media including self-adhesive vinyl, banner and textiles, as well as various indoor and outdoor paper products
Media Handling Flatbed and Roll Media Option operate independently; no conversion required between media types

Image Processing and Connectivity

Image Processing ONYX® ThriveTM print workflow software Océ Edition
Connectivity 10 / 100 / 1000Base-T Ethernet

Operational Environment and Dimensions

  • 2 x 50Hz, 200 - 240VAC, single phase, 16A
  • 2 x 60Hz, 200 - 240VAC, single phase, 20A
Operating Environment
  • Temperature: 18°C to 30°C
  • RH: 30% - 70%, non-condensing
  • Printer only: 4.66m x 3.83m; 1,625kg, uncrated
  • Printer + Roll Media Option: 4.66m x 4.12m; 1,875kg, uncrated


Service & Support Canon offers several contract options tuned to individual customer needs, to ensure the highest printer uptime, enabling our customers to achieve their business goals.


Tính năng

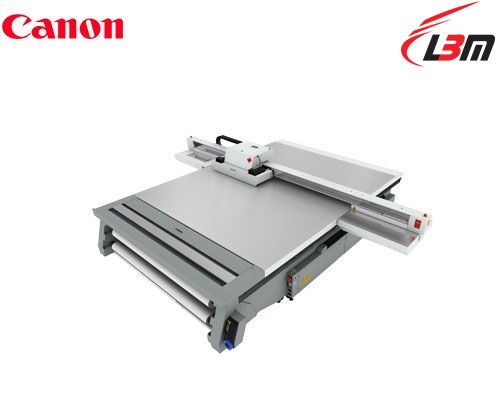

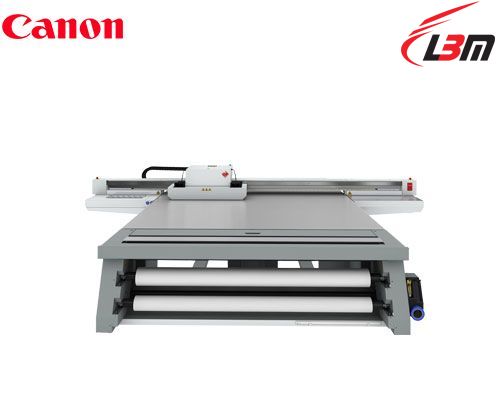

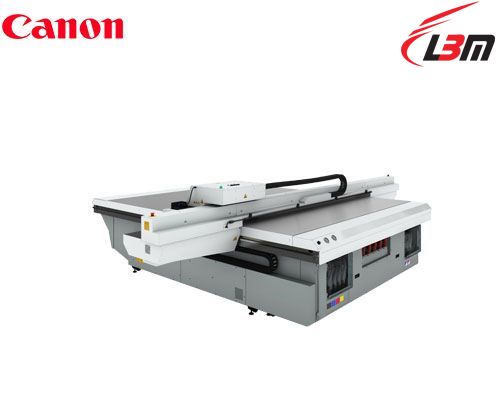

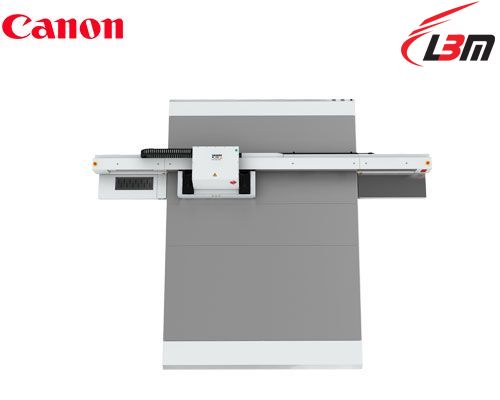

The Océ Arizona® 660 XT UV flatbed printer is an extra large table model that prints on any reasonably flat surface for just about any application. This 6 channel model is productive, easy to use and delivers outstanding image quality.

  • 6 independent ink channels
  • Océ VariaDot™ imaging technology for superior print quality
  • Varnish, double opacity white or CM² printing
  • Extra large table model with roll media option
  • Up to 64.7m² per hour
  • Active pixel placement compensation
  • Improved vacuum zone control
  • Batch mode
