Printer | |

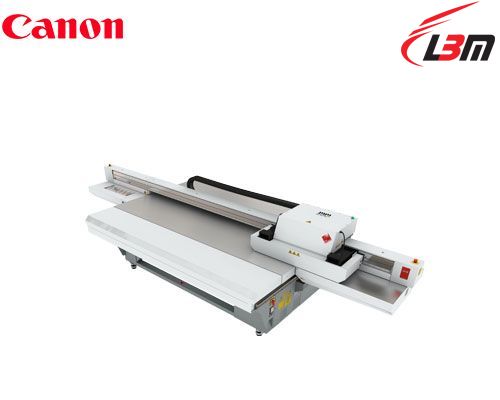

| Machine Type | UV flatbed printer |
| Image Technology | - Piezoelectric inkjet using Océ VariaDot® Imaging Technology
- 1272 piezoelectric nozzles per colour
|
| Resolution | Near-photographic image quality, perfect text as small as 6-pt in size |
System Design | |
| Flatbed | True flatbed architecture for printing to rigid media or objects |
| Roll media | Roll Media Option for flexible media |
Ink System | |
| Colours | - UV curable inks in quick-exchange ink bags
- Black, Cyan, Magenta, Yellow in two liter bags
- White and Varnish UV curable ink packaged in one liter
|
| Ink configuration | CMYK & CM2, or
CMYK & White, Varnish, or
CMYK & Double White |
Print Speed | |
| Print Speed | Print Mode | Flatbed
(m2/hr) | Roll Media Option (m2/hr) |
| Express mode | 60.0 | 43.3 |
| Production-Squared mode (*) | 46.3 | 38.1 |
| Production-Smooth mode (*) | 37.5 | 28.7 |
| Quality-Squared mode | 31.3 | 25.3 |
| Quality-Density mode (2 layers) | 14.6 | 11.7 |
| Fine Art mode | 21.1 | 17.0 |
| White Ink, 2-layer (**) | 13.2 | 10.5 |
Media | |
| Rigid Media Size | 1.25m x 2.5m x 50.8mm thick |
| Rigid Media Printing Width | 1.26m x 2.51m, edge-to-edge printing (full bleed) |
| Roll Media Width | 0.9m to 2.2m wide |
| Roll Media Printing Width | 2.19m max. |
| Media Assortment | Canon provides a complete assortment of roll-based media including self-adhesive vinyl, banner and textiles, as well as various indoor and outdoor paper products |
| Media Handling | Flatbed and Roll Media Option operate independently; no conversion required between media types |
Image Processing and Connectivity | |
| Image Processing | ONYX® ThriveTM print workflow software Océ Edition |
| Connectivity | 10 / 100 / 1000Base-T Ethernet |
Operational Environment and Dimensions | |
| Electrical | - 2 x 50Hz, 200 - 240VAC, single phase, 16A
- 2 x 60Hz, 200 - 240VAC, single phase, 20A
|
| Operating Environment | - Temperature: 18°C to 30°C
- RH: 30% - 70%, non-condensing
|
| Physical | - Printer only: 4.66m x 2.0m; 785kg, uncrated
- Printer + Roll Media Option: 4.66m x 2.3m; 1035kg, uncrated
|
Other | |
| Service & Support | Canon offers several contract options tuned to individual customer needs, to ensure the highest printer uptime, enabling our customers to achieve their business goals. |
