Technology | |

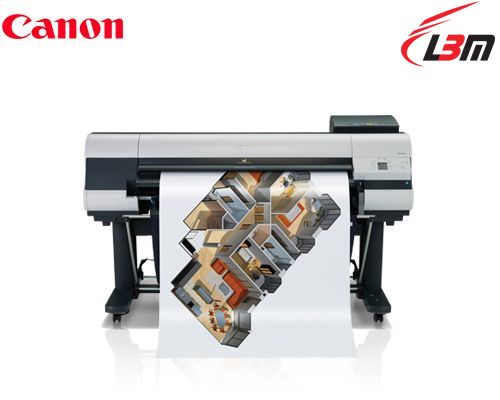

Printer Type | 5 Color - 44" |
Number of Nozzles | 15,360 nozzles (5,120 nozzles for MBK, 2,560 nozzles for BK, C, M, Y) 1 print head |
Print Resolution | 2400 x 1200dpi |
Nozzle Pitch | 1200dpi x 2 rows |
Line Accuracy | ±0.1% or less |
Ink Droplet Size | 4 Picoliter |
Ink Capacity | 330ml or 700ml Bundled starter ink: 330ml |
Ink Type | Dye / Pigment Reactive ink - 5 colors Dye: C, M, Y, BK Pigment: MBK |
OS Compatibility | Windows 32 bit – XP, Vista, 7, 8, 8.1, Server 2003 / 2003R2, Server 2008 Windows 64 bit – Vista, 7, 8, 8.1, Server 2003 / 2003R2, Server 2008 / 2008R2, Server 2012 / 2012R2 Mac: OSX – 10.6.8 - 10.10.x |
Printer Language | GARO (Graphic Arts language with Raster Operations), HP-GL/2, HP RTL |
Standard Interfaces (Built-in) | Hi-Speed USB Ethernet 10 / 100 / 1000 Base-T/TX |
Printing Speed | |
A0 size, Plain Paper (CAD Drawing) | Fast Economy Mode: | 42secs. |
Fast Mode: | 45secs. |
Standard Mode: | 1min 12secs. |
A0 size, Coated Paper (Poster) | Fast Mode | 1min 12secs. |
Standard Mode | 2min 19secs. |
High Quality Mode | 3min 37secs. |
Memory | |
Buffer RAM | 32GB |
Hard Disk | 320GB |
Media Handling | |
Media Width | Roll Paper: | 254 - 1118mm |
Cut Sheet: | 203.2 - 1118mm |
Media Thickness | Roll Paper: | 0.07 - 0.8mm |
Cut Sheet: | 0.07 - 0.8mm |
Maximum Printable Length | Roll Paper: | 18m (varies according to the OS and application) |
Cut Sheet: | 1.6m |
Maximum Media Roll Outer Diameter | 150mm |
Paper Feed Method | Roll Paper: | One Roll, Front Loading, Front Output |
Cut Sheet: | Manual Feed: Front Loading, Front Output |
Borderless Printing Width (Roll Paper only) | 10" (254 mm), 14" (356 mm), 17" (432 mm), B2 (515 mm), A1 (594 mm), 24" (610 mm), A0 (841mm), 36" (914mm), B0 (1,030mm), 42" (1,066mm) |
Dimensions and Weight | |
Physical Dimensions (W x D x H) | Main unit with printer stand and basket open: | 1893 x 975 x 1144mm |
Weight (Main unit) | 138kg |
Power And Operating Requirements |
Power Supply | AC 100 - 240V (50 - 60Hz) |
Power Consumption | Operation: | 190W or less |
Power off (Standby): | 0.5W or less |
Operating Environment | Temperature: | 15 - 30°C |
Humidity: | 10 - 80% (Condensation-free) |
Noise Level (Approx.) | Operation: | 52dB or less |
Standby: | 35dB or less |
Accoustic Power: | 6.8Bels or less |
Options | |
Roll Holder Set | RH2-44 |
Media Basket | BU-03 |
Roll Holder Set | TU-06 (Note: TU-06 cannot be used with BU-03 at the same time) |
