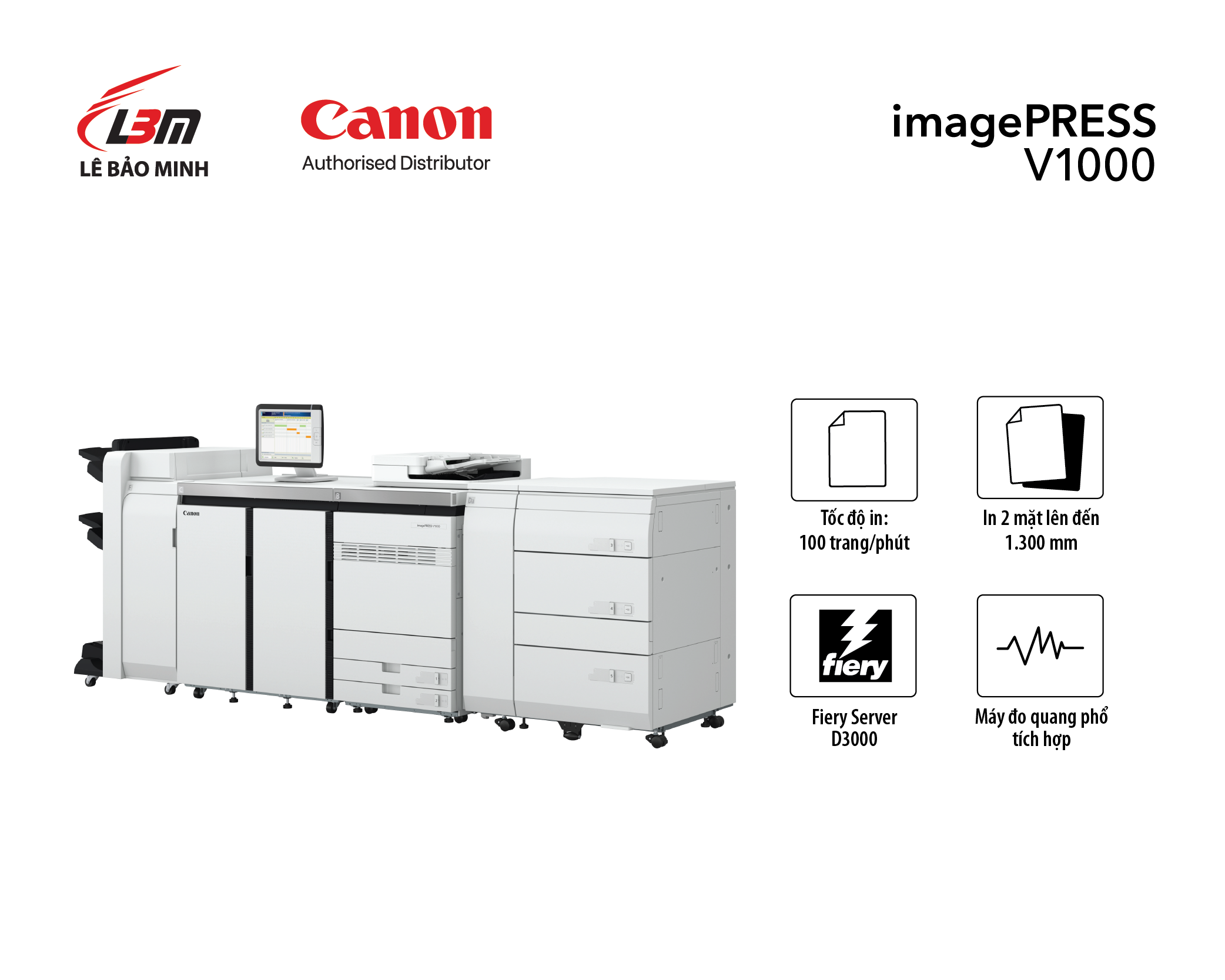

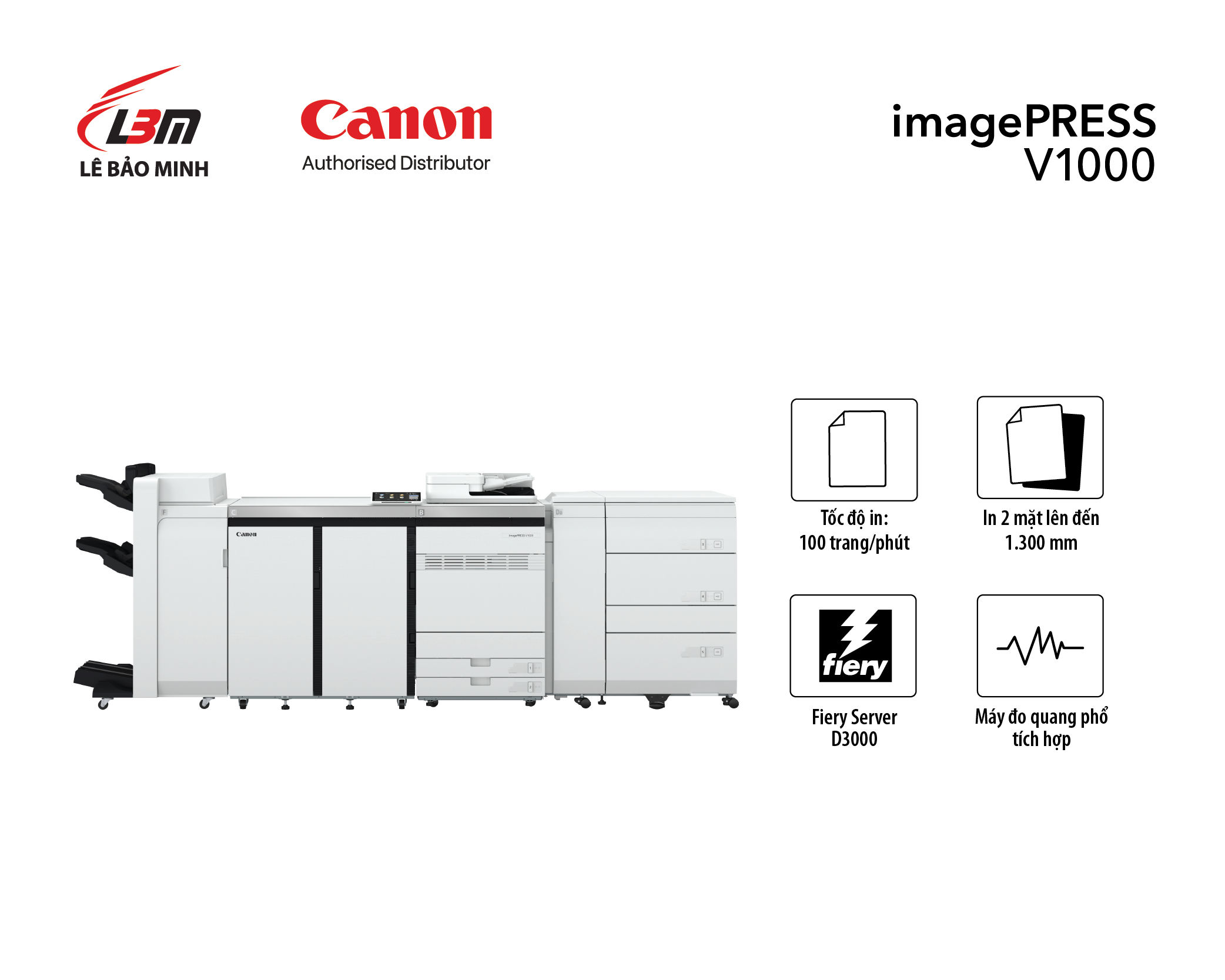

imagePRESS V1000

The imagePRESS V1000 digital press is the tool you need to compete and thrive in the demanding print market

The imagePRESS V1000 series is designed to allow you to realize your vision more easily and efficiently than ever before. Canon has taken the proven quality, productivity, and versatility of the imagePRESS brand and elevated it. Canon has synergized form and function so that even the most inexperienced operator can impress with superb colour and exquisite output!

  • Optimum productivity with media ranges from 52- 400 gsm
  • New embedded cooling unit delivers high productivity with same print speed across range of media weighs
  • Small footprint design and meet your daily work requirements

Chi tiết

ẨnHiện

Main Unit

Machine Type

Digital colour cut-sheet press

Core Functions

Print, Copy, Scan, Send, Store

Processor Speed

1.8 GHz, 1.3 GHz Dual

Control Panel

10.1 inch

Memory

6 GB

Interface Connection

NETWORK

Network Protocols

Standard: 1000Base-T/100Base-TX/10Base-T

Paper Input (Standard)

Standard: 1,100 sheets
550-sheet Paper Cassette x 2
Maximum: 11,100 sheets
Engine 550 x 2, Multi-drawer Deck (1,500 + 1,500 + 2000) x 2

Paper Supply Capacity (A4, 80 gsm)

11,100 sheets

Finishing Capabilities

Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch (multiple patterns), Document Insertion, Fold (C-, Z-, Half, Double parallel, Accordion-Z fold), Trimming

Supported Media Types

Thin (52-63 gsm), Plain (64-105 gsm), Recycled, Colour, Thick (106-400 gsm), Coated (70-400 gsm), Embossed, Bond, Transparency, Label, Pre Punched, Letterhead, Index, Transparent film, Translucent film, Envelope, Synthetic, Magnetic

Supported Media Sizes

A3S, B4S, A4L, A4S, B5S, B5L, A5S, A5L, A6S, SRA3S, 11”x17”S, LGLS, LTRL, LTRS, EXE_L, STMTS, 12”x18”S, 13”x19”S, 8KS, 16KL, 16KS, Envelope, Custom size (Cross track: 100~330.2 mm, In track: 148~487.7 mm), Long Sheet (210.0x487.8-330.2x1, 300.0 mm)

Supported Media Weights

52-400 gsm

Dimensions (W x D x H)

1,583 x 872 x 1,040 mm

Print Specifications

Printing Method

Colour Laser Beam Printing

Print Speed

100 ppm

Print Resolution (dpi)

2,400 x 2,400 dpi

Copy Specifications

Copy Speed

100 ppm

First-Copy-Out Time

20 seconds or less

Copy Resolution (dpi)

600 dpi x 600 dpi,
600 dpi x 300 dpi,
300 dpi x 300 dpi

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

25% - 400% (1% Increments)

Preset Reductions

25%, 50%, 70%

Preset Enlargements

141.4%, 200%, 400%

Basic Copy Features

Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel

Special Copy Features

Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed, Free Size Original

Scan Specifications

Type

Colour Platen and Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]

Scan Resolution (dpi)

600 dpi x 600 dpi,
600 dpi x 300 dpi,
300 dpi x 300 dpi

Document Feeder Paper Capacity (80 gsm)

200 sheets

Acceptable Originals/Weights

38-220 gsm

Supported Media Sizes

A3S, A4L, A4S, A5L, A5S, A6S, B4S, B5L, B5S, B6S, 11”x17”S, LGLS, LTRL, LTRS, STMTL, STMTS, 8KS, 16KL

Scan Speed

BW: 270 ipm (A4/LTR)
CL: 270 ipm (A4/LTR)

Fiery Print Controller Specifications

Optional/Standard

Optional

Name

imagePRESS Server D3000

Print Resolution (dpi)

1200 x 1200, 600 x 600

Page Description Language(s)

PS3, PCL6

Memory

16 GB

Hard Disk Drive

240 GB (2.5" SSD),
1x1 TB (2.5" HDD)

Processor Speed

Core i7-8700,
Coffee lake,
4.6 GHz, 6 Core

System

FS500Pro

Fonts

138 PS fonts

Supported Operating Systems

Windows 7 32 and 64 bit / Windows 8.1 32 and 64 bit / Windows10 32 and 64 bit / Windows11 / Windows Server 2008 R2 64bit only / Windows 2012 64bit only / Windows 2012 R2 64 bit only / Windows Server 2016 64bit / Windows Server 2019 64bit / Windows Server 2022 64bit / MAC OS (10.14, 10.15, 11, 12)

Interface

2 x Ethernet (1000Base-T/100Base-TX/10 Base-T), USB3.2 x 5, USB2.0 x 2

Network Protocols

TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port 9100, SNTP, 802.1X, DHCP, DNS, NTP)

Direct Print

PDF2.0, EPS, TIFF, JDF1.8/JMF

VDP

PPML3.0, PDF/VT-1, PDF/VT1,VPS, FreeForm Plus

Fiery Print Controller Standard Features

Fiery Command WorkStation 6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers

Fiery Print Controller Options

Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Graphic Arts Package / Removable HDD Kit

HW Platform

NX Pro

Dimensions (W x D x H)

235 mm x 464 mm x 527 mm

Weight

17 kg

Consumables

Toner Cartridge

Toner T11 BK/C/M/Y

Other Options

Staple Cartridge

STAPLE-N1 - for Stapling (3 x 5,000 pcs) (for Staple Finisher-AF1 and Booklet Finisher-AF1)
STAPLE-P1 - for Saddle Stitching (2 x 5,000 pcs) (for Booklet Finisher-AF1)
