Tính năng

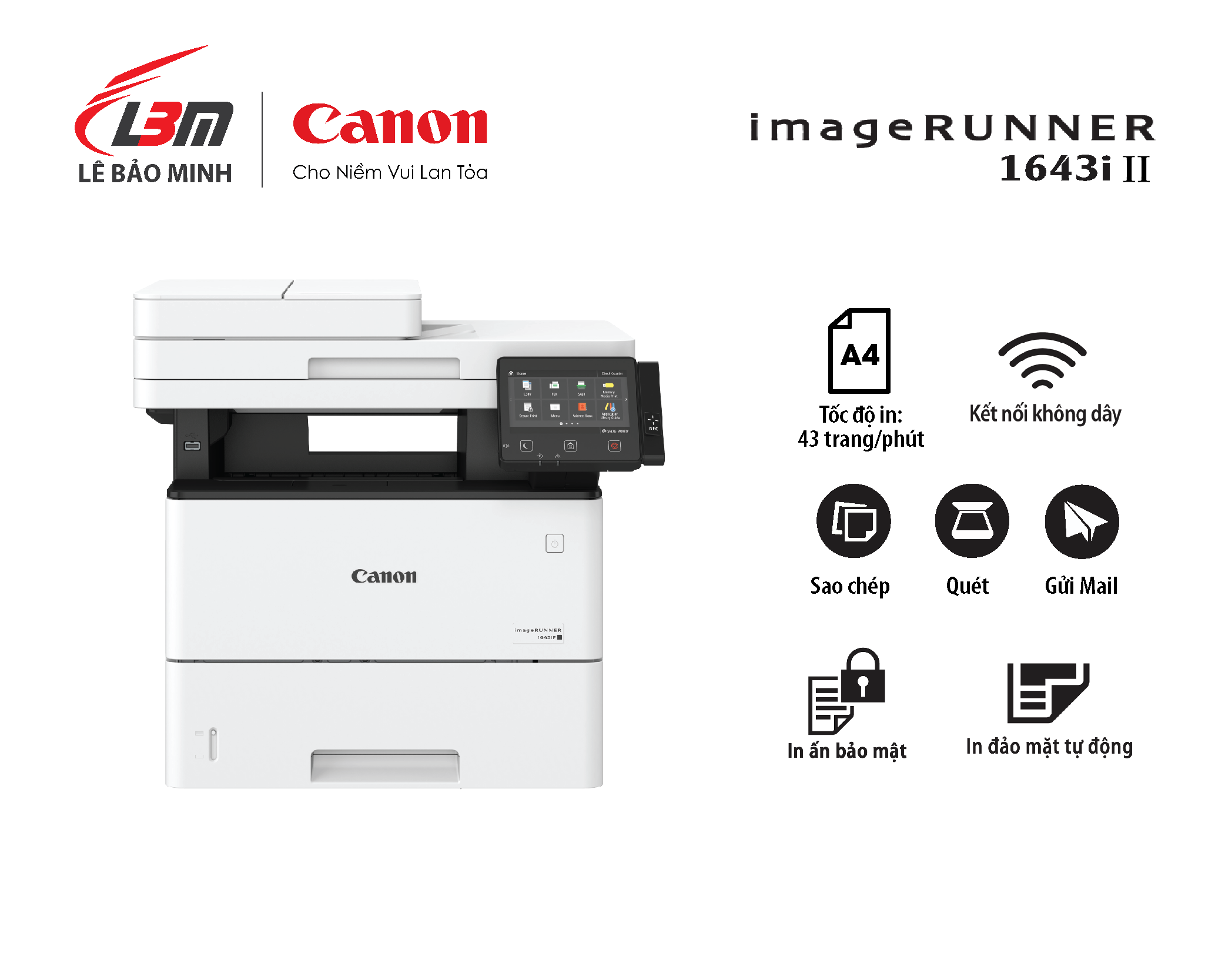

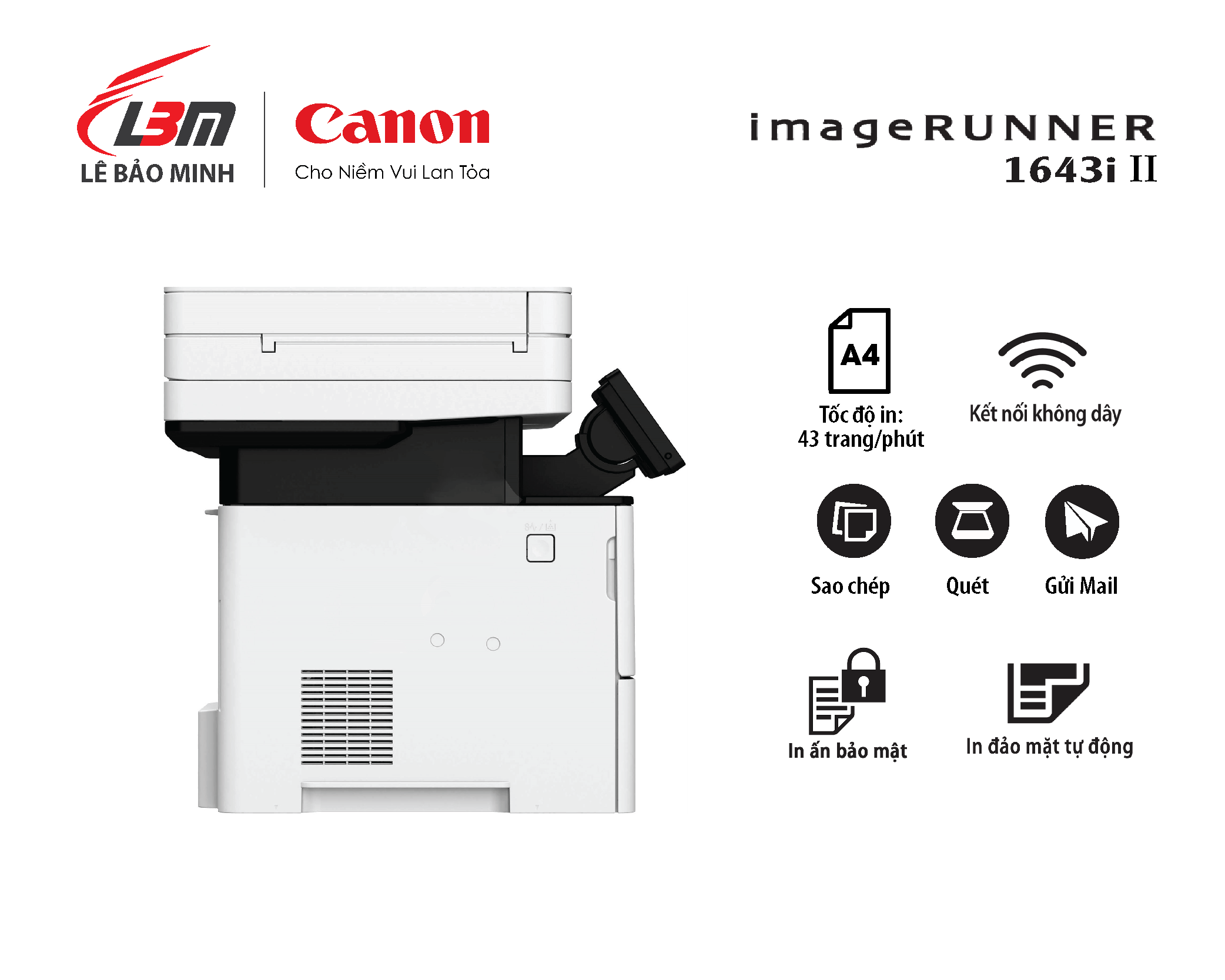

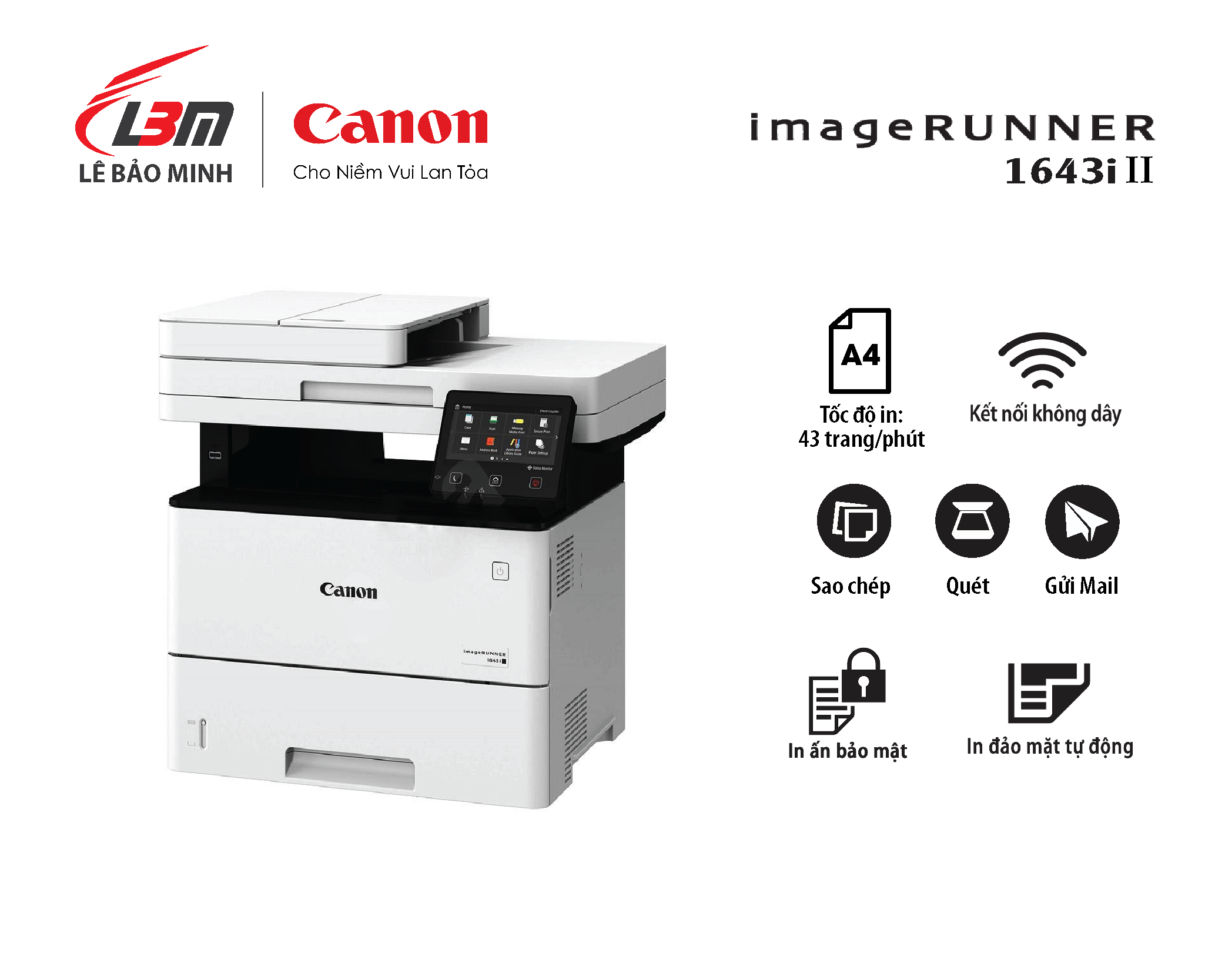

Introducing a compact A4 mono multifunction device with fast scanning capabilities and advanced mobile connectivity. Reliable and versatile, the iR1643 series offers a wide range of functions tailored to suit the demands of busy work groups.

  • A4 Monochrome
  • Print speed of up to 43 pages per minute

Application Library

The Application Library is packed with innovations to help you work smarter and more efficiently than ever. You can print frequently-used forms from the printer, or personalise the printer with your corporate logo with just a tap of the button.

Increased Productivity

Improve your workflow efficiency with fast outputs, large paper input capacity and rich media support. Single-pass document feeder with automatic, two-sided scanning ensures document digitisation processing is at its optimum..

Intuitive Control

The iR1643 series features a simple to operate and intuitive colour touchscreen, allowing for easy customisation of day-to-day tasks via selectable onscreen icons.

High Security

Control access and keep your files confidential with a range of advanced security and encryption options. The iR1643 Series also include latest technology to verify that the device boot process, firmware, and applications initialise without alterations or tampering.

Mobile Connectivity

Print, scan, or send documents from any portable device via various mobile connections. With Canon’s latest mobile business solution, you can print documents, photos and web pages with just one app.
Machine TypeMonochrome A4 Laser Multifunctional
Core FunctionsiR1643i: Print, Copy, Scan and Send
Control Panel5 inch TFT LCD WVGA Colour Touch panel
MemoryStandard: 1.0GB RAM
Interface Connection
iR1643iFNETWORK Standard:
1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), NFC, Wi-Fi Direct Connection

OTHERS Standard:
USB 2.0 (Host) x2, USB 2.0 (Device) x1

iR1643iNETWORK Standard:
1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection

OTHERS Standard:
USB 2.0 (Host) x2, USB 2.0 (Device) x1

Memory MediaStandard: USB Memory
Network SecurityStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
Document SecurityStandard: Secure Print, Encrypted PDF, Device signature
Paper Supply Capacity (A4, 80gsm)Standard: 650 sheets
Paper Cassette: 550-sheet
Multi-purpose tray: 100-sheet
Maximum: 2,300 sheets (with PAPER FEEDER PF-C1x3)
Paper Output Capacity (A4, 80 gsm)150 sheets
Supported Media TypesUpper Cassette 1:
Thin, Plain, Thick, Colour, Recycled, Bond
Multi-purpose tray:
Thin, Plain, Thick, Colour, Recycled, Bond, Label, Envelope
Supported Media SizesUpper Cassette 1:
Standard size: A4, B5, A5, A5R, A6
Custom size: Min. 105.0 x 148.0 mm up to 216.0 x 355.6 mm

Multi-purpose tray:
Standard size: A4, B5, A5, A5R, A6, Index Card, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size: Min. 76.2 x 127.0 mm up to 216.0 x 355.6 mm

Supported Media WeightsUpper Cassette 1: 60 to 120 gsm
Multi-purpose tray: 60 to 199 gsm
Duplex: 60 to 120 gsm
Warm-up Time
(Time from device power-on until copy ready, not print reservation)
From Power On: 14 Seconds or Less*1
From Sleep Mode: 4 Seconds or Less
Dimensions (W x D x H)iR1643i: 480 x 595 x 452 mm (with the multi purpose tray extended)
Installation Space (W x D)iR1643i: 694 x 1,105 mm (with Cassette open + 100 mm gap around the main body)
WeightStandard: Approx. 19 kg without toner

Print

Print Speed (BW)43 ppm (A4)
Print Resolution (dpi)600 × 600
Page Description LanguagesiR1643i: UFR II, PCL6, PCL5, Optional: Adobe®PostScript®3™
Direct PrintDirect printing available from USB memory, LPR
Supported file types: TIFF, JPEG, PDF and XPS (only LPR)
FontsPCL fonts: 93 Roman
PS fonts: 136 Roman
Operating SystemUFRII/PCL/PS: Windows®7/8.1/10/Server2008/Server2008 R2/Server2012/Server2012 R2/Server2016, Mac OS X (10.9 or later)

Copy

Scan

Document Feeder Type1PDS
Paper CapacityA4: 50 sheets (80 gsm)
Acceptable Originals and WeightsPlaten: Sheet, Book, 3-Dimensional Objects (Height: up to 20mm)

Document Feeder sheet media weight :
1-sided/2-sided continuous scanning: 50 to 105 gsm

Supported Media SizesSheet media size: A4R, B5R, A5R, A6R
Custom size: 105×128 mm to 215.9×355.6 mm
Scan Speed (ipm: BW/CL; A4)Copy:
1-sided Scanning: 20
2-sided Scanning: 34

Send:
1-sided Scanning(BW/CL): 38/13
2-sided Scanning(BW/CL): 70/26

Scan Resolution (dpi)Copy: 600 x 600
Send (Push, Pull)/Fax: up to 600 x 600
Pull Scan SpecificationsScanGear MF For both TWAIN and WIA ScanGear MF For both TWAIN and WIA
Windows® 7/8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016, Mac OS X (10.9 or later)
Scan MethodSend functionality available on both models
Scan to USB Memory Key
TWAIN/WIA Pull scanning available on both models

Send

Store
Memory MediaStandard: USB Memory

Security

NetworkStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DocumentStandard: Secure Print, Encrypted PDF, Device signature

Environmental

Operating EnvironmentTemperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)
Power SourceAC220-240V:3.9A,50/60Hz
Power ConsumptionMaximum: Approx. 1420W or less

Consumables

Paper Supply Options

Hardware Accessories

System and Controller options

  1. Time from device power-on, until copy ready (not print reservation).
  2. Sent as A4.
  3. Attached to the main unit.
