Product type |
Projector |
|
Imaging device, number |
DMD x1 |
|
|
|
|
Number of pixels |
1024x768 (XGA) |
|
Size / Aspect ratio |
0.55 type/ 4:3 |
|
|
|
|
Zoom ratio / Focal length / F value |
1.5x / 20.7–31.1mm / F2.42–2.97 |
|
Projection distance |
W: 1.49 - 9.67 m
T: 1.68 - 9.50 m |
|
Projection distance for 100” |
3.72 – 5.59 m |
|
Projection ratio (*1) |
1.39:1 - 2.09:1 |
|
Operation |
Zoom: manual, Focus: manual |
|
Light source |
|
|
Lamp type |
Super-high pressure lamp for projectors |
|
Lamp power (*2) |
310 / 245W |
|
Images |
|
|
Optical system |
Time division color extraction, sequential display |
|
Brightness (*2) |
4200 / 3360lm |
|
Marginal lumination ratio |
80% |
|
Contrast ratio (*3) |
10000:1 |
|
Amount of lens shift |
64%, fixed |
|
Electrical zoom (by length) |
2x maximum |
|
Keystone correction range |
H ±30°, V ±30° |
|
Image signal |
|
|
Analog PC input |
WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA / MAC |
|
Digital PC input |
WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA |
|
Digital video input |
1080p / 1080i / 720p / 576p / 480p |
|
MHL input |
1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
|
Component video input |
1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
|
Video input / S-video input |
NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N |
|

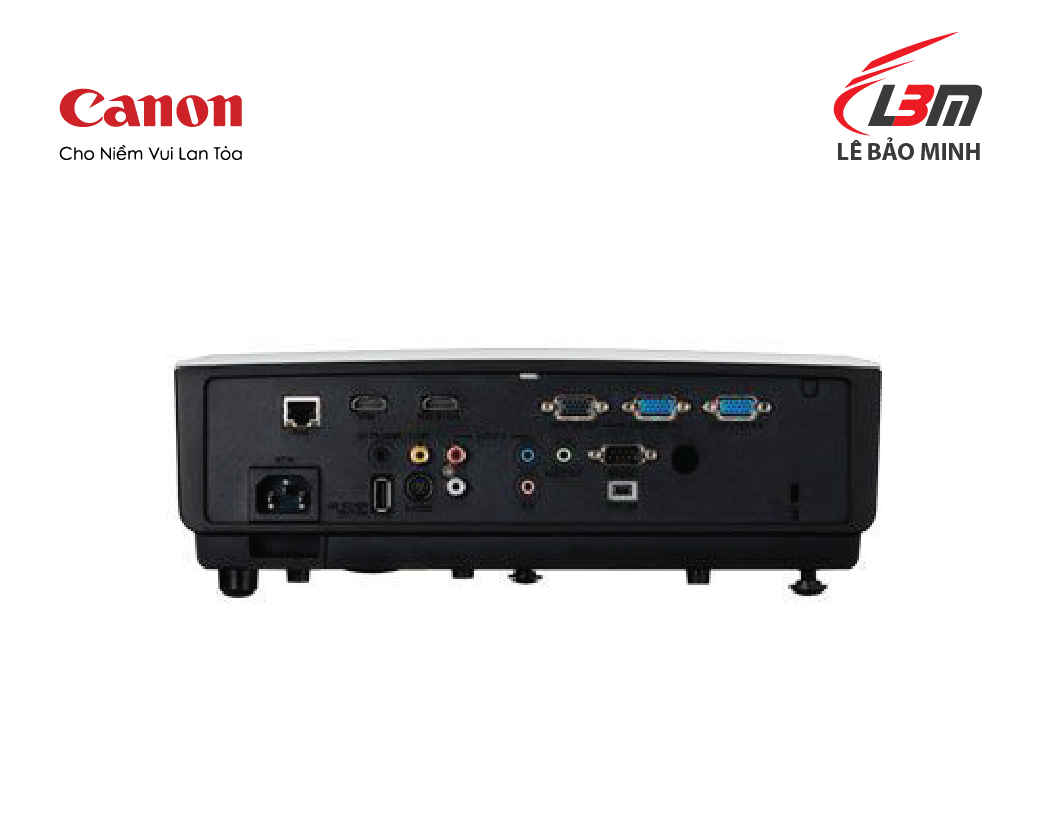

Terminal |
|
|
Mini Dsub 15 x 2 |
Analog PC / Component video input |
|
Mini D-sub 15 |
Analog PC / Component video output |
|
HDMI / MHL |
Digital PC / Digital video / MHL input |
|
HDMI |
Digital PC / Digital video input |
|
RCA x 3 |
Video input / Audio-L / Audio-R |
|
Mini DIN4 |
S-video input |
|
Mini Jack x 2 |
Audio input x 1, Audio output x 1 |
|
Dsub9 |
RS-232C connection |
|
RJ45 |
100BASE-TX / 10BASE-T |
|
USB mini B |
Service port |
|
USB type A |
Power supply terminal (1.5A) |
|
Mechanics |
|
|
Adjustable feet |
Front: 1, Rear: 1 (the angle of elevation of up to 3°) |
|
Speaker |
10W monaural |
|
Dimensions (W x H x D) |
W: 314 mm, H: 112 mm, D: 231 mm |
|
Weight |
3.4 kg |
|
Noise (*2) |
40 / 36dB |
|
Others |
|
|
Power supply |
AC100V - 240V 50 / 60Hz |
|
Power consumption (*2) |
410 W / 320 W |
|
Standby power consumption (*4)
|
2.0 / 0.5 W |
|
Operating temperature |
5°C to 40°C |
|
Accessories |
Remote control LV-RC11, Computer Connection Cable, Power Cord |
