| Product type | Projector |
| Imaging device, number | DMD x1 |
| | |
| Number of pixels | 1920 x 1080 (1080P) |
| Size / Aspect ratio | 0.65 type/ 16:9 |
| | |
| Zoom ratio / Focal length / F value | 1.5x / 20.7–31.1mm / F2.42–2.97 |
| Projection distance | W: 1.23 - 9.85m
T: 1.39 - 9.72m |
| Projection distance for 100” | 3.08 – 4.63m |
| Projection ratio (*1) | 1.83:1 - 2.75:1 |
| Operation | Zoom: manual, Focus: manual |
| Light source | |
| Lamp type | Super-high pressure lamp for projectors |
| Lamp power (*2) | 310 / 245W |
| Images | |
| Optical system | Time division color extraction, sequential display |
| Brightness (*2) | 4200 / 3360lm |
| Marginal lumination ratio | 80% |
| Contrast ratio (*3) | 8000:1 |
| Amount of lens shift | 65%, fixed |
| Electrical zoom (by length) | 2x maximum |
| Keystone correction range | H ±30°, V ±30° |
| Image signal | |
| Analog PC input | WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA / MAC |
| Digital PC input | WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA |
| Digital video input | 1080p / 1080i / 720p / 576p / 480p |
| MHL input | 1080p / 1080i / 720p / 576p / 480p / 576i / 480i |
| Component video input | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Video input / S-video input | NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N |

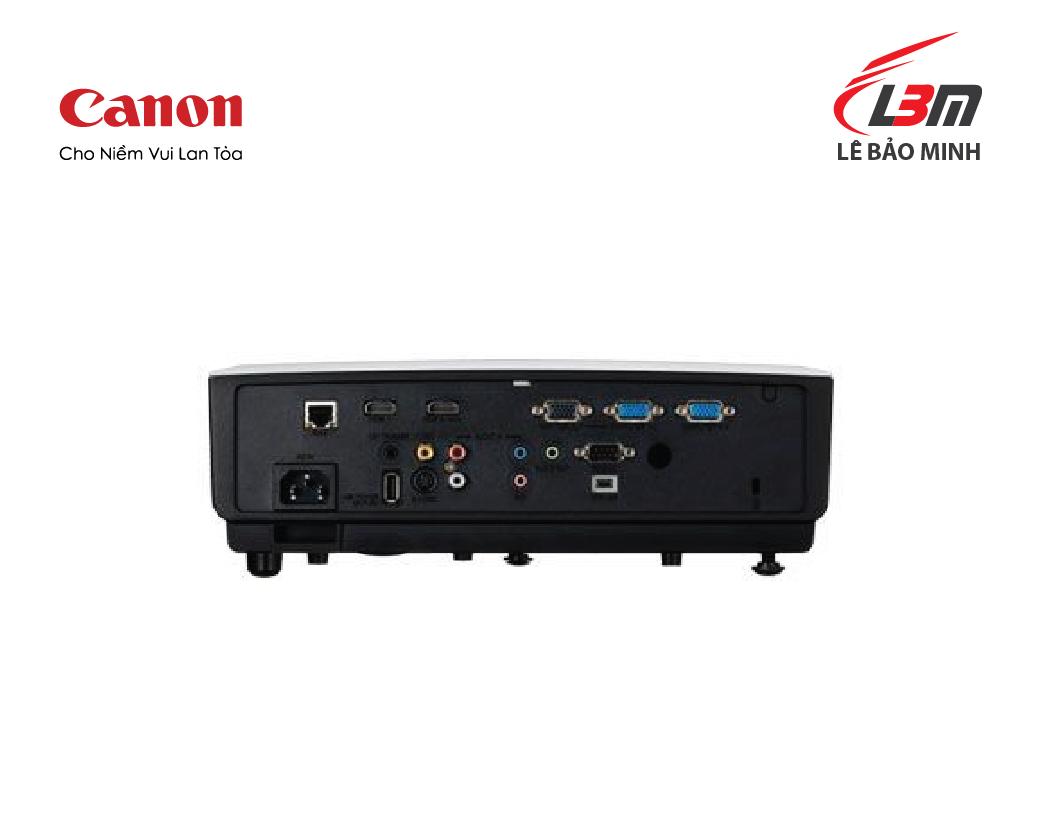

| Terminal | |
| Mini Dsub 15 x 2 | Analog PC / Component video input |
| Mini D-sub 15 | Analog PC / Component video output |
| HDMI / MHL | Digital PC / Digital video / MHL input |
| HDMI | Digital PC / Digital video input |
| RCA x 3 | Video input / Audio-L / Audio-R |
| Mini DIN4 | S-video input |
| Mini Jack x 2 | Audio input x 1, Audio output x 1 |
| Dsub9 | RS-232C connection |
| RJ45 | 100BASE-TX / 10BASE-T |
| USB mini B | Service port |
| USB type A | Power supply terminal (1.5A) |
| Mechanics | |
| Adjustable feet | Front: 1, Rear: 1 (the angle of elevation of up to 3°) |
| Speaker | 10W monaural |
| Dimensions (W x H x D) | W: 314 mm, H: 112 mm, D: 231 mm |
| Weight | 3.4 kg |
| Noise (*2) | 40 / 36dB |
| Others | |
| Power supply | AC100V - 240V 50 / 60Hz |
| Power consumption (*2) | 410 W / 320 W |
Standby power consumption (*4) | 2.0 / 0.5 W |
| Operating temperature | 5°C to 40°C |
| Accessories | Remote control LV-RC11, Computer Connection Cable, Power Cord |
