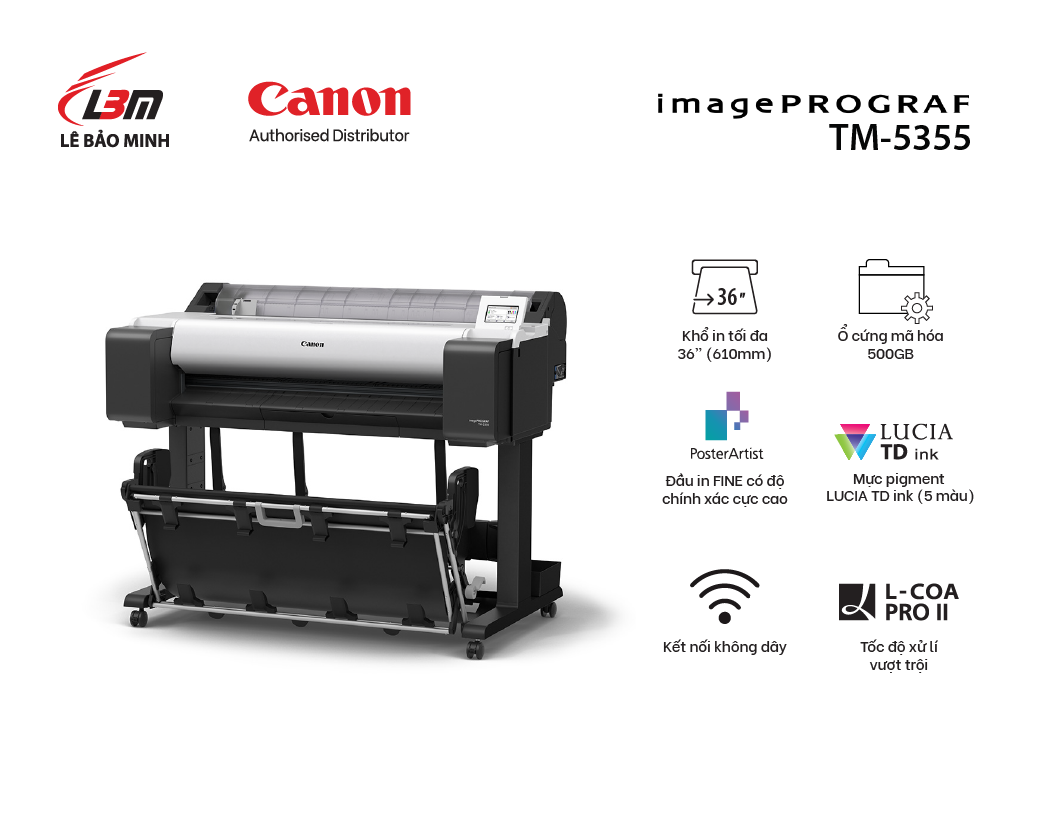

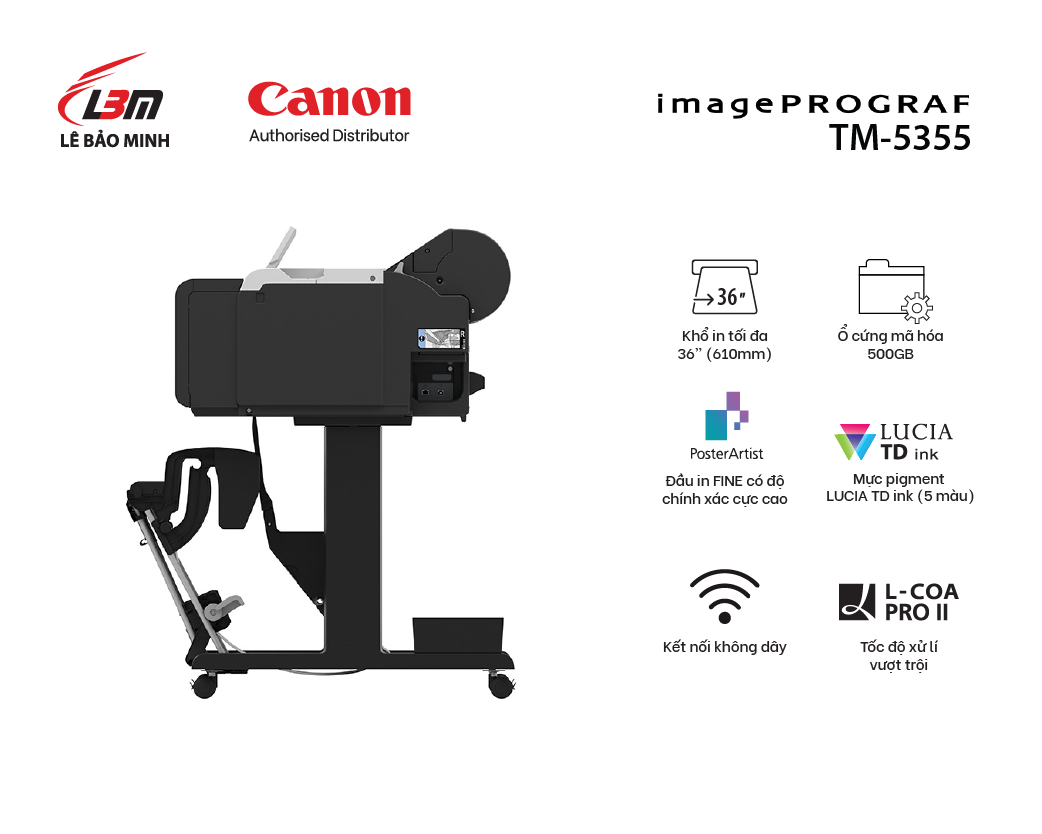

imagePROGRAF TM-5355

Endless Productivity Made Swift

The all-new 36″ imagePROGRAF TM-5355 large format printer empowers every print delivery with enhanced scanning operability and printer processing power, delivering high quality CAD drawings, photos and posters. Redefine your workplace productivity with a seamless, swift and reliable print partner.

  • 5-colour LUCIA TD pigment ink
  • 36″/914 mm
  • Fast printing speed with L-COA PRO II
  • Borderless printing
  • 500 GB Encrypted hard disk drive

Chi tiết



Printer Type

5-Colour 36" (914 mm)

Number of Nozzles

15,360 nozzles
(MBK 5,120 nozzles,
Other Colours 2,560 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)
JPEG (Ver. JFIF1.02)

Printing Solutions

Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server

Management Solutions

Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB A Port:
USB Memory (Direct Print)
Supported file format: JPEG/PDF

USB B Port:
(Series B, 4 pins)
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer

IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T

Wireless LAN:
IEEE802.11 b/g/n

Standard Memory

128 GB (Physical Memory 2 GB)

Hard Disk

500 GB (Encrypted)


LCD (4.3 inch/10.9 cm TFT colour)

Print Speed*4

CAD Drawing (A1 Landscape, Fast Q5 mode)

17 sec

CAD Drawing (A0 Portrait, Fast Q5 mode)

32 sec

Poster (A0 Portrait, Standard mode)

2 min 33 sec

Media Handling

Media Feed and Output

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output

Media Width (Roll/Cut Sheet)

Roll Width: 203.2 ~ 917 mm;
Cut Sheet Width: 203.2 ~ 917 mm

Media Thickness (Roll/Cut Sheet)

0.07 ~ 0.8 mm

Media Core Size

2 inch/3 inch core

Min. Printable Length

Roll Paper

203.2 mm

Cut Sheet

279.4 mm

Max. Printable Length

Roll Paper

18 m*5

Cut Sheet

1,600 mm

Maximum Outer Roll Diameter

150 mm or less

Borderless Printing

Supported for roll paper

Margins (Recommended Area)

Roll Paper (Top, Bottom, Sides)

20 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

20 mm, 20 mm, 3 mm

Margins (Printable Area)

Roll Paper (Top, Bottom, Sides)

3 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

3 mm, 20 mm, 3 mm

Dimensions & Weight

Dimensions (W x D x H)

Main Unit

1,285 x 748 x 439 mm (Operation panel is not tilt up)

Main Unit + Printer Stand + Basket (SD-35)

1,285 x 885 x 1,060 mm (Operation panel is not tilt up/Basket Opened
1,285 x 756 x 1,060 mm (Operation panel is not tilt up/Basket Closed)


Main Unit

50 kg

Main Unit + Printer Stand + Basket (SD-35)

65 kg

Packaged Dimensions (W x D x H)

Printer (Main unit + Stand + Basket + Pallet) (SD-35)

1,462 x 1,122 x 801 mm

Packaged Weight*6

Printer (Main unit + Stand + Basket + Pallet) (SD-35)

113 kg


Power & Operating Requirements

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption


69 W or less

Sleep Mode*7

1.6 W or less

Power Off

0.1 W or less

Operating Environment


15 ~ 30 °C


10 ~ 80 % RH (no dew condensation)

Acoustic Sound

Acoustic Power*8

Operation: Approx. 6.2 Bels

Acoustic Pressure*8

Operation: Approx. 41 dB (A)
Standby: 35 dB (A) or less


Printer Stand (Optional)


2/3" Roll Holder


Card Reader Interface for uniFLOW


Cutter Blade



Ink Tank

Magenta: PFI-8121 (130 ml)/PFI-8321 (300 ml)
Matt Black/Black/Cyan/Yellow: PFI-8120 (130 ml)/PFI-8320 (300 ml)

Print Head


Maintenance Cartridge



  1. User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
  2. USB Thumb drive printing is not supported.
  3. IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) Supported.
  4. Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
  5. Varies according to the OS and application.
  6. Including roll holder set, excluding print head and ink tanks.
  7. Using wired LAN.
  8. Acoustic Power and Pressure are measured using ISO 7779 standard.
