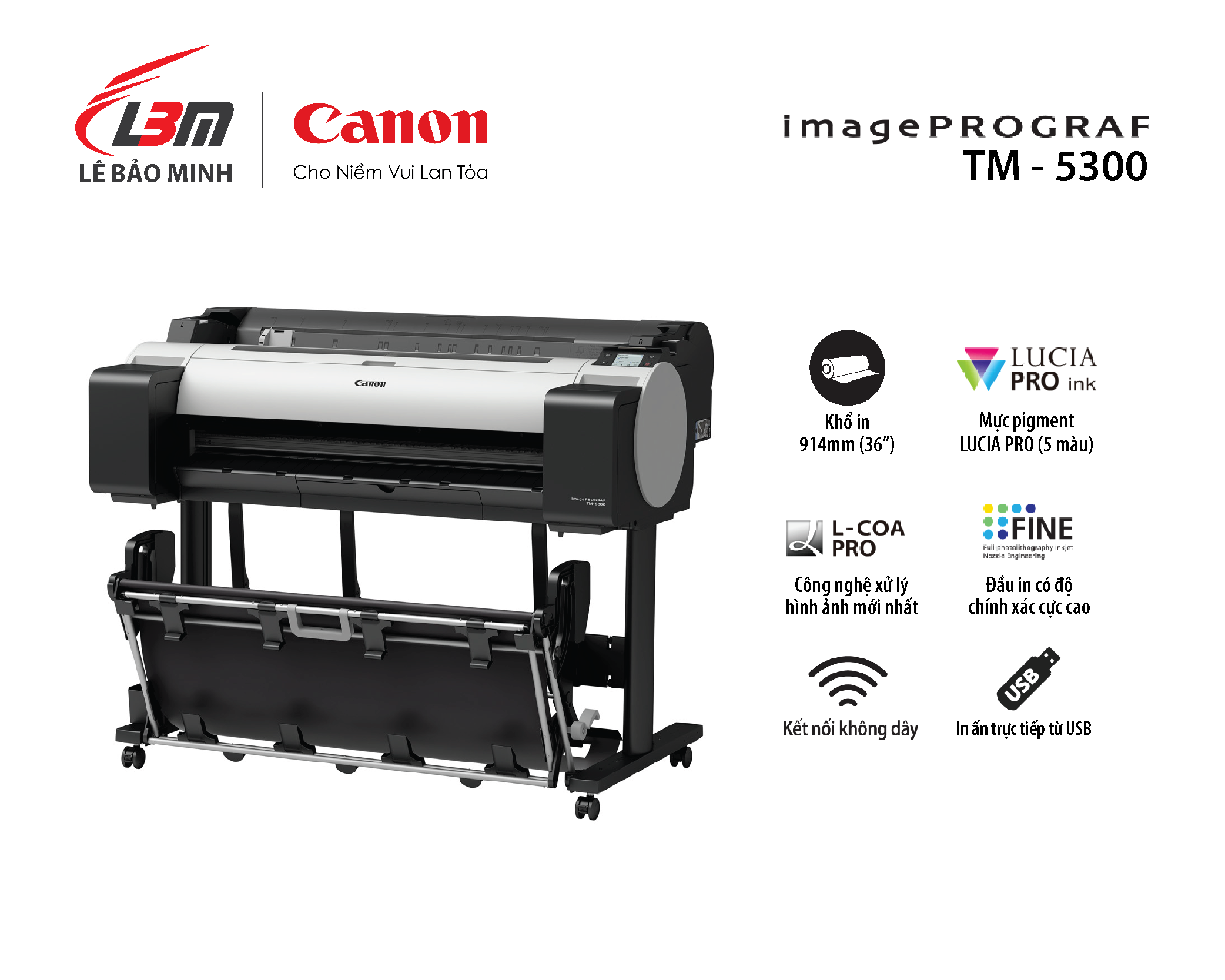

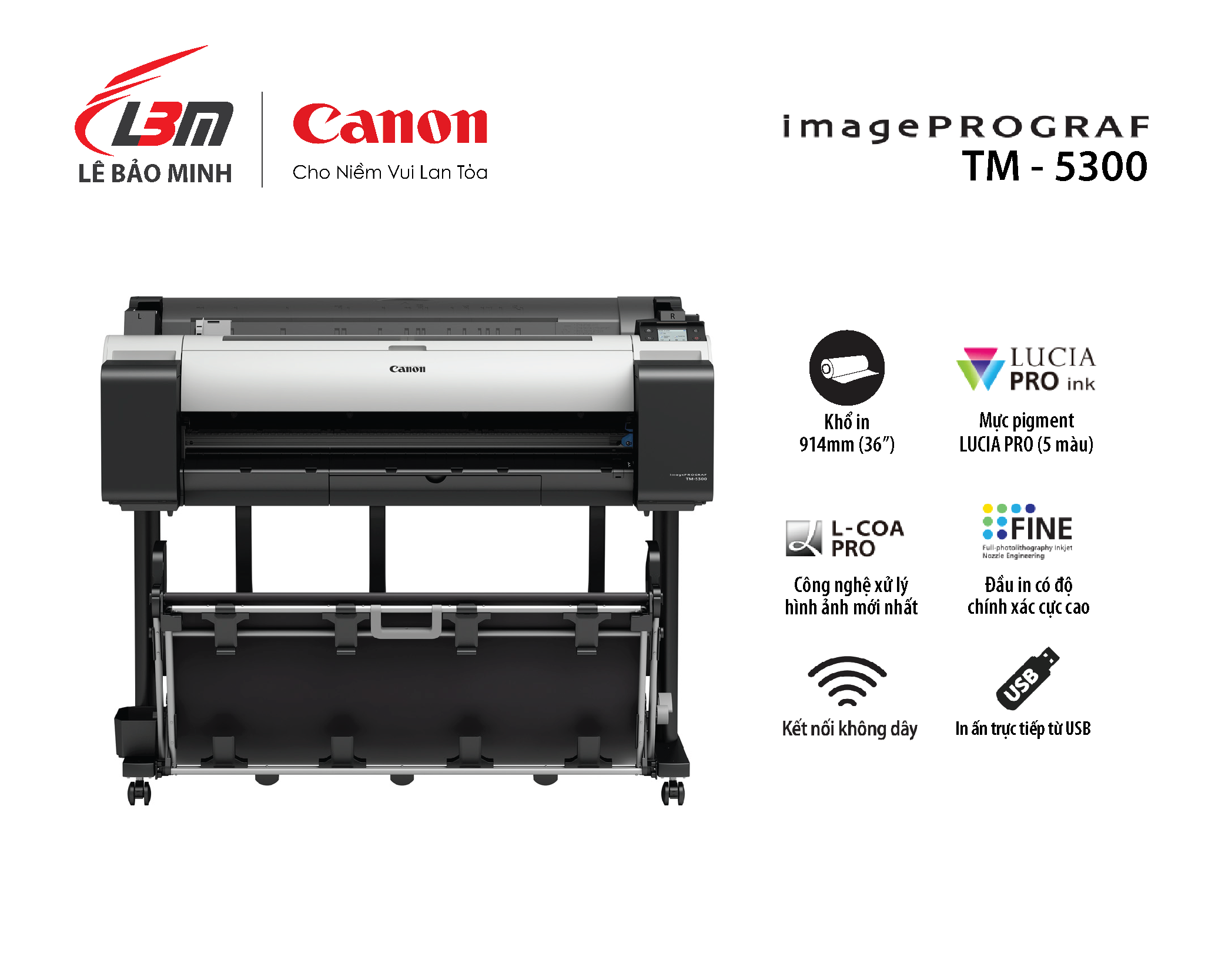

Quiet, Fast, Precise

The TM-5300 allows you to enjoy high-speed, accurate printing complete with vivid colours, high security, ease of use, all in silence.

5 colour pigment ink
Ultra quiet operation
Compact footprint
Perfect for high quality CAD/GIS and posters

Superb Quality

The TM series boasts Canon’s LUCIA TD inks. This 5-colour fully pigment inks, with high surface tension, produces lines and text that are dense and crisp with minimal feathering. Vibrant colours can also be produced from LUCIA TD ink which enables users to economically print high quality drawings and posters on inexpensive uncoated plain paper. TM series offers a wider range of user applications and opens up new markets. For example, customers can expect superb vibrancy, print quality and longevity in outdoor displays when used with Canon’s water resistant media.

Quietly Compact

During operation the imagePROGRAF TM Series boasts a quiet acoustic sound level of only 44dB; thus enabling it to even fit in smaller office environment without a fuss. A compact and integrated design, with full front usability, means little installation space.

Abundance Software
The new imagePROGRAF TM Series include a variety of software designed to bring out all of the full potential in your printer. With an abundance of software included, the imagePROGRAF TM Series is equipped with everything needed to print technical documents, maps, posters, banners, signage, infographics, designs, and more.

Chi tiết


Printer Type

5 Colour 36"/914mm

Number of Nozzles

15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y 2,560 Nozzles each)

Print Resolution

2400 x 1200dpi

Nozzle Pitch

1200dpi (2 lines)

Line Accuracy

±0.1% or less

Ink Droplet Size

Minimum 5 Picoliter per colour

Ink Capacity

Sales Ink: 130ml/300ml (MBK, BK,C,M, Y)
Bundled Starter Ink: 130ml (MBK)/ 90ml (BK,C,M, Y)

Ink Type

Pigment inks / 5 colour - (MBK, BK,C,M, Y)

Printer Language

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)

Standard Interfaces (Built-in)

USB B Port: Built in (Hi-Speed USB ), Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer, Series B (4 pins)

Gigabit Ethernet: IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T/ Auto-Negotiation, IEEE 802.3x Full Duplex

Wireless LAN: IEEE802.11n/ IEEE802.11g/ IEEE802.11b


Standard memory: 2GB

Hard Disk


CAD Drawing - Plain Paper (A0 size)

0:40 (Fast Economy Mode)
0:48 (Fast)
1:14 (Standard)

CAD Drawing - Heavyweight Coated Paper HG (A0 size)

0:47 (Fast Economy Mode)
1:11 (Fast)
2:18 (Standard)

Poster - Plain Paper (A0 size)

0:44 (Fast Economy Mode)
0:44 (Fast)
1:18 (Standard)

Poster - Heavyweight Coated
Paper HG (A0 size)

1:41 (Fast)
2:36 (Standard)

Media Feed Method

Roll Paper: One Roll, Upper-loading, Front Output Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

Media Output (SD-23)

Standard Position: 1 Sheet
Folding Position: 20 sheets on A1 portrait/ A0 portrait
Flat Position: 20 sheets on A1 landscape/ A2 landscape

Media Width

Roll Paper/Cut Sheet: 203.2 - 917mm

Media Thickness

Roll Paper/Cut Sheet: 0.07 - 0.8mm

Minimum Printable Length

Roll Paper: 203.2mm
Cut Sheet: 279.4mm

Maximum Printable Length

Roll Paper: 18m (Varies according to the OS and application)
Cut Sheet: 1.6m

Maximum Media Roll Outer Diameter

150mm or less

Borderless Printing Width (Roll Only)

515mm(JIS B2),728mm(JIS B1),594mm(ISO A1),841mm(ISO A0),10",14",17",24",36"
257mm(JIS B4),297mm(ISO A3),329mm(ISO A3+),420mm(ISO A2),8",12",16",20",30",300mm,500mm,600mm,800mm

Physical Dimensions & Weight

Main Unit + Stand + Basket (SD-32)
Basket Opened: 1289 x 887 x 1060mm
Basket Closed: 1289 x 757 x 1060mm
60kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions & Weight

Printer (Main Unit with Stand and Pallet): 1462 x 913 x 961mm, 105kg

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 69W or less
Sleep Mode: 3.6W or less
Power Off: 0.3W or less

Operating Environment

Temperature: 15°C - 30°C
Humidity: 10% - 80% RH (no dew condensation)

Acoustic Sound

[Acoustic Pressure]
Operation: 44dB(A) (Plain paper, line drawing, standard mode)
Standby : 35dB(A) or less
(Measured on ISO7779 standard)

[Acoustic power]
Operation : 6.0 Bels (Plain paper, line drawing, standard mode)
(Measured on ISO7779 standard)
