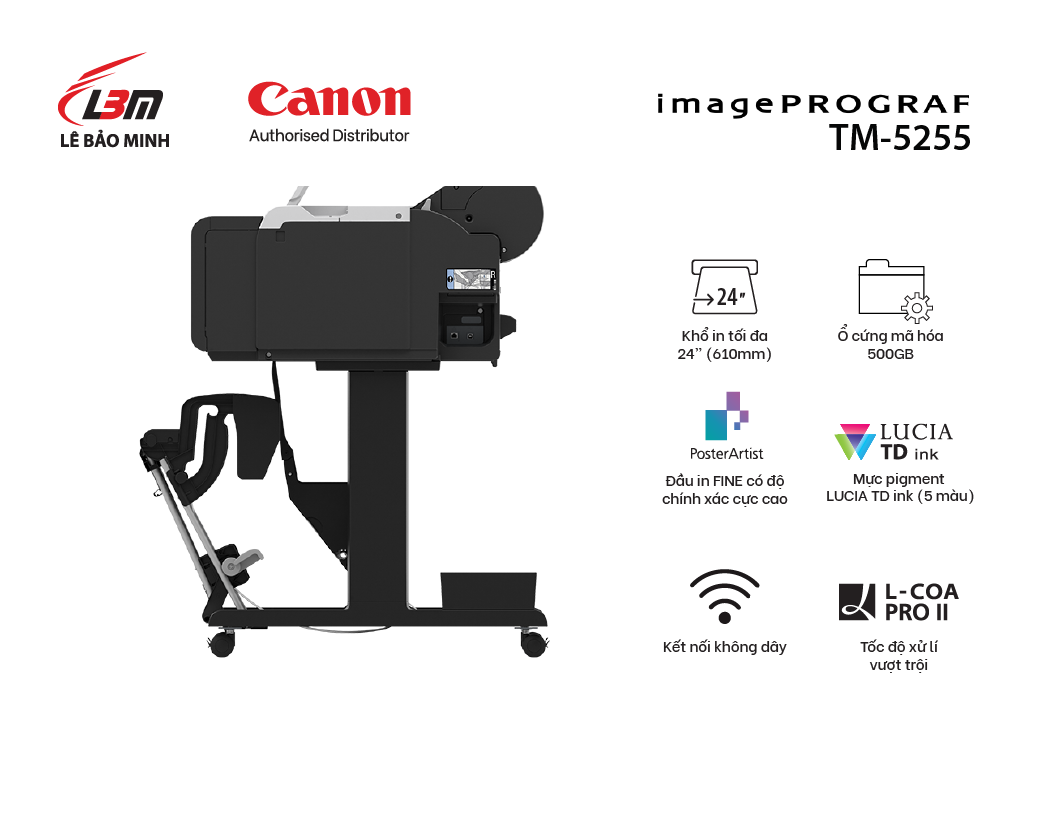

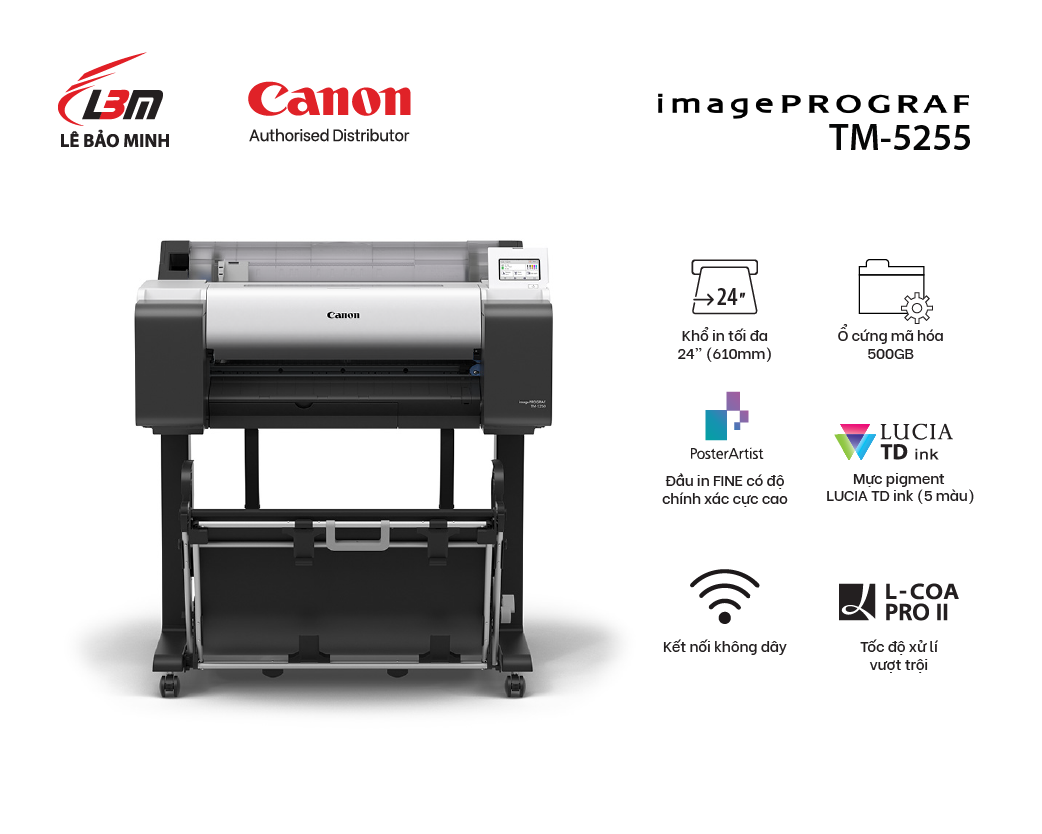

imagePROGRAF TM-5255

Limitless Creativity Made Possible

The new 24″ imagePROGRAF TM-5255 large format printer raises the standard for print excellence through greater business printing performance for creating photo images, posters and CAD drawings. Express limitless creativity through vivid, quality prints thanks to improved ink capabilities.

  • 5-colour LUCIA TD pigment ink
  • 24″/610 mm
  • Fast printing speed with L-COA PRO II
  • Borderless printing
  • 500 GB Encrypted hard disk drive

Chi tiết

ẨnHiện

Printer

Printer Type

5-Colour 24" (610 mm)

Number of Nozzles

15,360 nozzles
(MBK 5,120 nozzles,
Other Colours 2,560 nozzles each)

Maximum Print Resolution

2,400 x 1,200 dpi

Nozzle Pitch

1,200 dpi (2 lines)

Line Accuracy*1

± 0.1% or less

Ink Capacity

Sales Ink: 130 ml/300 ml (MBK/BK/C/M/Y)

Ink Type

Pigment Ink

Printer Language

SG Raster (Swift Graphic Raster)
HP-GL/2, HP RTL
JPEG (Ver. JFIF1.02)
CALS G4*2
PDF

Printing Solutions

Printer Driver (Win/Mac versions), Direct Print Plus, Free Layout plus, PosterArtist Windows/Web & Lite, Wi-Fi Connection Assistant, PIXMA Cloud Link, Apple AirPrint (Mobile), Canon PRINT Inkjet/SELPHY (Mobile), Canon Print System (Mobile), uniFlow server

Management Solutions

Media Configuration Tool (includes Colour Customization Tool), Accounting Manager, Device Management Console, Quick Utility Toolbox

Standard Interfaces (Built-in)

USB A Port:
USB Memory (Direct Print)
Supported file format: JPEG/PDF

USB B Port:
(Series B, 4 pins)
Hi-Speed USB
Full Speed (12 Mbit/sec)
High Speed (480 Mbit/sec)
Bulk Transfer

Network:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
IEEE 802.3ab 1000base-T
SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN:
IEEE802.11 b/g/n
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
WPA3-SAE (AES)
WPA-EAP (AES)*3
WPA2-EAP (AES)*3
WPA3-EAP (AES)*3

Standard Memory

128 GB (Physical Memory 2 GB)

Hard Disk

500 GB (Encrypted)

Display

LCD (4.3 inch/10.9 cm TFT colour)

Print Speed*4

CAD Drawing (A1 Portrait, Fast Q5 mode)

20 sec

Poster (A1 Portrait, Standard mode)

1 min 23 sec

Media Handling

Media Feed and Output

Roll Paper

One Roll, Top Load, Front Output

Cut Sheet

Top Load, Front Output

Media Width (Roll/Cut Sheet)

Roll Width: 203.2 ~ 610 mm;
Cut Sheet Width: 203.2 ~ 610 mm

Media Thickness (Roll/Cut Sheet)

0.07 ~ 0.8 mm

Media Core Size

2 inch/3 inch core

Min. Printable Length

Roll Paper

203.2 mm

Cut Sheet

279.4 mm

Max. Printable Length

Roll Paper

18 m*5

Cut Sheet

1,600 mm

Maximum Outer Roll Diameter

150 mm or less

Borderless Printing

Supported for roll paper

Margins (Recommended Area)

Roll Paper (Top, Bottom, Sides)

20 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

20 mm, 20 mm, 3 mm

Margins (Printable Area)

Roll Paper (Top, Bottom, Sides)

3 mm, 3 mm, 3 mm

Cut Sheet (Top, Bottom, Sides)

3 mm, 20 mm, 3 mm

Dimensions & Weight

Dimensions (W x D x H)

Main Unit

978 x 748 x 439 mm (Operation panel is not tilt up)

Main Unit + Printer Stand + Basket (SD-26)

978 x 885 x 1,060 mm (Basket Opened)
982 x 756 x 1,060 mm (Basket Closed)

Weight *6

Main Unit

42 kg

Main Unit + Printer Stand + Basket (SD-26)

55 kg

Packaged Dimensions (W x D x H)

Printer (Main unit + Pallet)

1,152 x 913 x 679 mm

Stand + Basket (SD-26)

1,058 x 826 x 270 mm

Printer (Main unit with stand and pallet) (SD-26)

1,152 x 913 x 946 mm

Packaged Weight *6

Printer (Main unit + Pallet)

73 kg



Stand + Basket (SD-26)

22 kg



Printer (Main unit with stand and pallet) (SD-26)

96 kg



Power & Operating Requirements

Power Supply

AC 100 - 240 V, 50 - 60 Hz

Power Consumption

Printing*7

64 W or less

Sleep Mode*7

1.6 W or less

Power Off

0.1 W or less

Operating Environment

Temperature

15 ~ 30 °C

Humidity

10 ~ 80 % RH (no dew condensation)

Acoustic Sound

Acoustic Power*8

Operation: Approx. 6.2 Bels

Acoustic Pressure*8

Operation: Approx. 41 dB (A)
Standby: 35 dB (A) or less

Accessories

Printer Stand (Optional)

SD-26

2/3" Roll Holder

RH2-28

Card Reader Interface for uniFLOW

RA-02

Cutter Blade

CT-08

Consumables

Ink Tank

Magenta: PFI-8121 (130 ml)/PFI-8321 (300 ml)
Matt Black/Black/Cyan/Yellow: PFI-8120 (130 ml)/PFI-8320 (300 ml)

Print Head

PF-06

Maintenance Cartridge

MC-31



  1. User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
  2. USB Thumb drive printing is not supported.
  3. IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
  4. Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
  5. Varies according to the OS and application.
  6. Including roll holder set, excluding print head and ink tanks.
  7. Using wired LAN.
  8. Acoustic Power and Pressure are measured using ISO 7779 standard.
