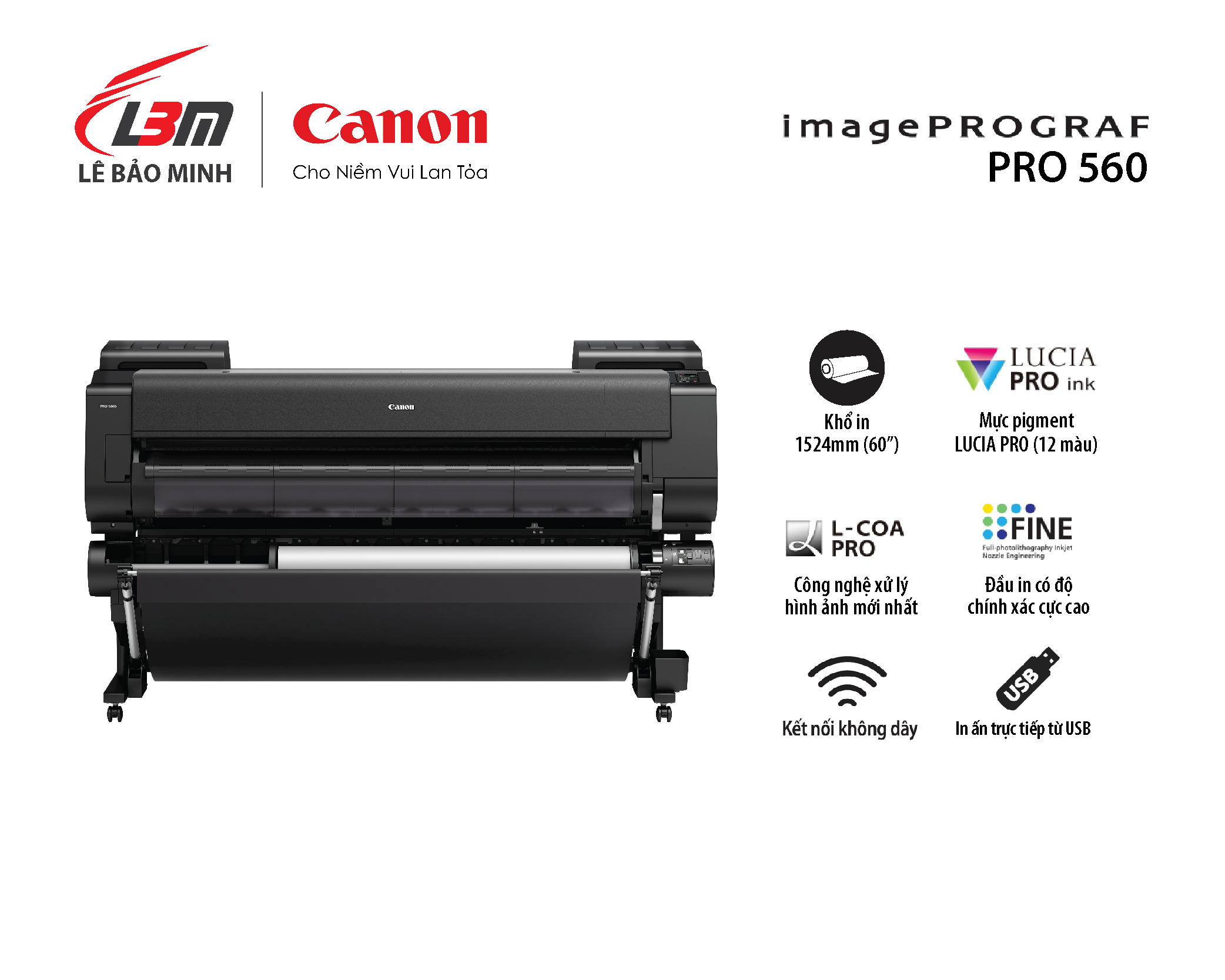

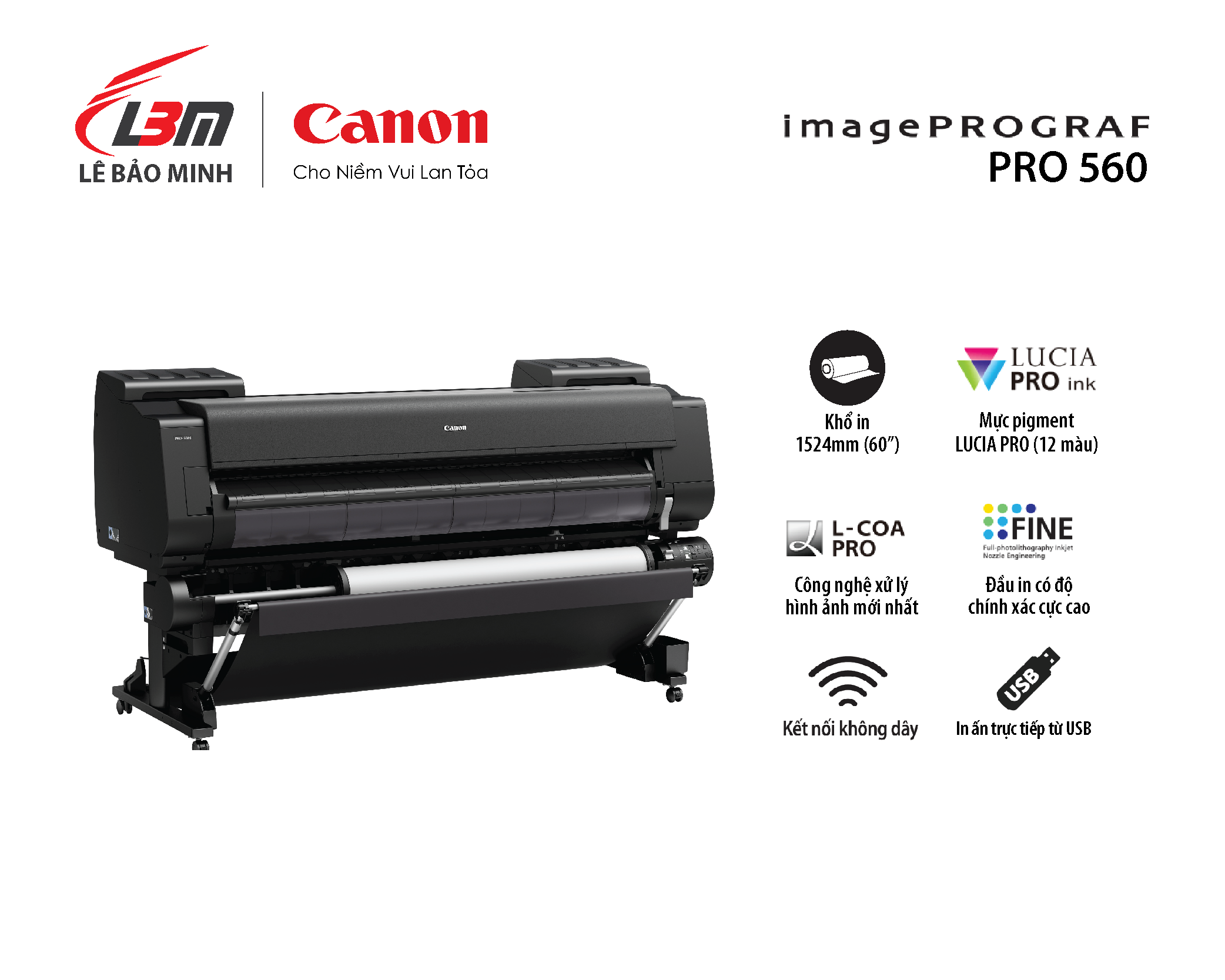

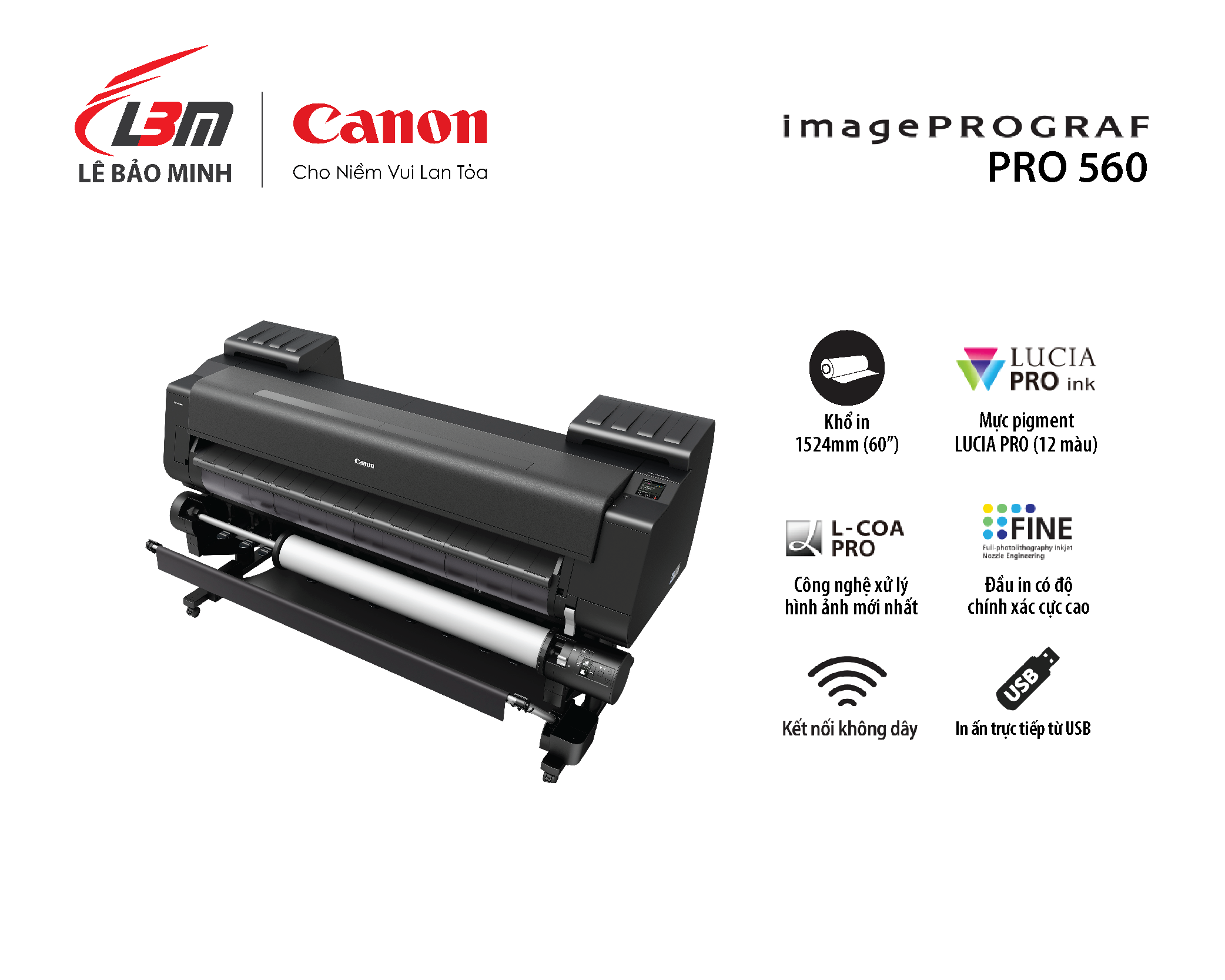

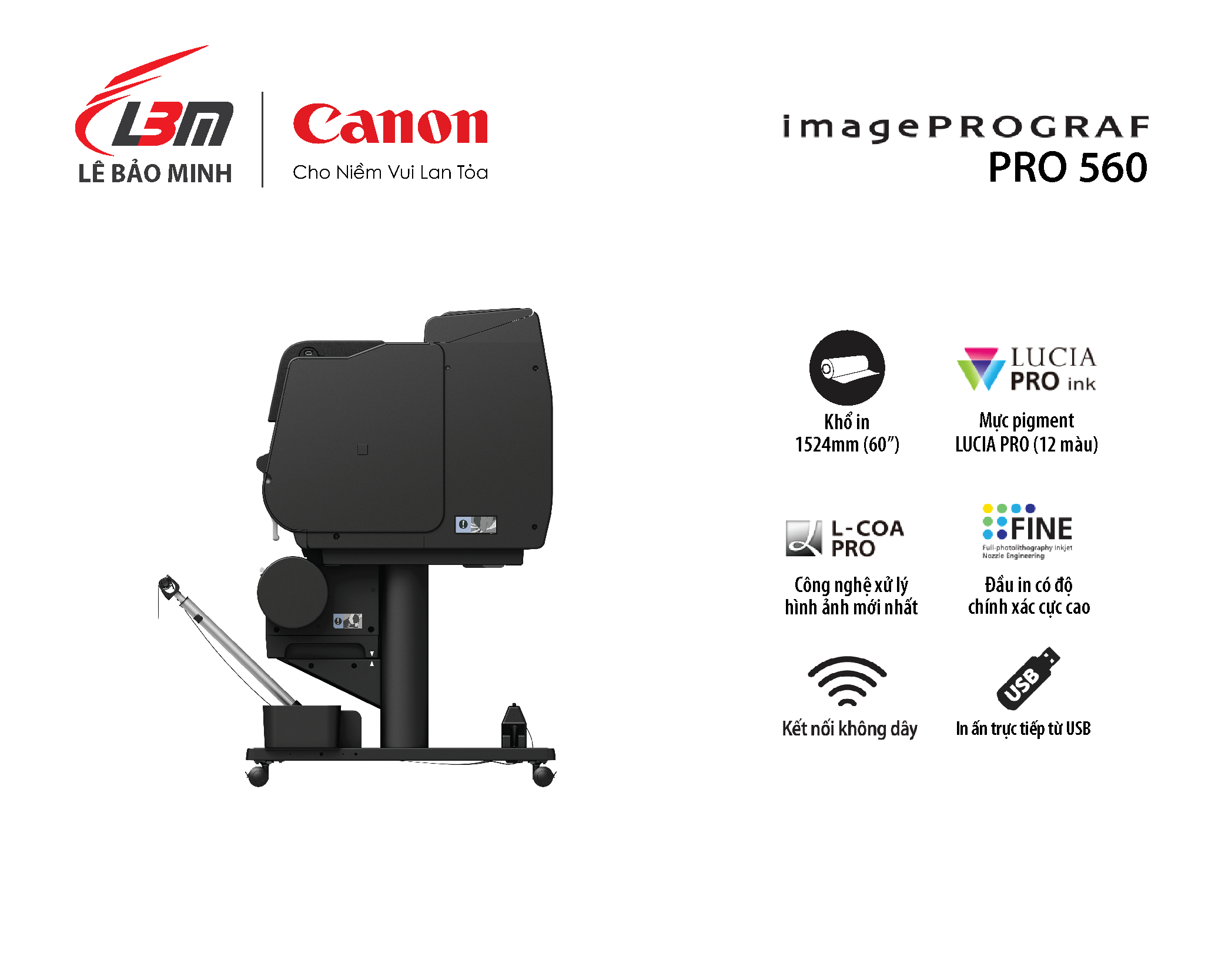

Model |
PRO-560 |
|
Printer Type |
60" / 1524mm |
|
Ink Type |
Pigment inks / 12 colour:
Photo Black (PBK) / Matte Black (MBK) / Cyan (C) / Magenta (M) / Yellow (Y) / Photo Cyan (PC) / Photo Magenta (PM) / Grey (GY) / Photo Grey (PGY) / Red (R) / Blue (B) / Chroma Optimiser (CO) |
|
Maximum Print Resolution |
2400 x 1200dpi |
Physical Dimensions
W x D x H (mm), Weight (kg)
(including Roll Holder Set, excluding ink and print head) |
Main Unit + Stand+Basket |
1999 x 984 x 1168 (Basket Opened)
1999 x 766 x 1168 (Basket Closed)
Weight: approx. 147kg |
|
Main Unit + Roll Unit + Stand + Basket |
Weight: approx. 167kg |
Packaged Dimensions
W x D x H (mm), Weight (kg) |
Printer (Main unit with stand and pallet) |
2227 x 915 x 1022mm,
Weight: approx. 210kg |
|
Roll Unit |
2133 x 562 x 461mm
Weight: approx. 40kg |
|
Power and Operating Requirements |
Input power |
AC 100 - 240V (50 - 60Hz) |
|
Power consumption |
Operation: 103W or less
Sleep mode: 3.6W or less
Power off: 0.3W or less |
|
Recommended Environment |
Temperature: 15 ~ 30°C, Humidity: 10 ~ 80% RH (no dew condensation) |
|
Acoustic Noise |
Acoustic pressure |
Operation approx. 48dB (A) (Glossy paper, Image, Print priority: Standard)
Standby: 35dB (A) or less
(Measured on ISO 7779 standard) |
|
Acoustic power |
Operation approx. 6.4Bels or less (Glossy paper, Image, Print priority: Standard)
(Measured on ISO 7779 standard) |
|
Detector and Adjustment |
Registration adjustment |
Automatic / Manual |
|
Banding adjustment |
Automatic / Manual |
|
Line length adjustment |
Manual |
|
Head slant adjustment |
Automatic |
|
Colour calibration |
Yes (with a colour calibration notification function) |
|
Head gap adjustment |
Automatic / Manual (6 levels) |
|
Non-firing detection |
Yes |
|
Non-firing compensation |
Yes |
|
Roll remaining detection function |
Yes |
|
Line Accuracy |
±0.1% or less
User adjustments necessary. Printing environment must match those used for the adjustments. |
|
Memory |
Standard memory |
3GB |
|
Hard Disk |
320GB |
|
Firmware |
Languages |
Printer language: SGRaster (Swift Graphic Raster), PDF & JPEG |
|
PDF |
Supported Version 1.7
- List of the built-in fonts
Times-Roman, Helvetica, Courier,
Symbol, Times-Bold, Helvetica-Bold,
Courier-Bold, ZapfDingbats, Times-Italic,
Helvetica-Oblique, Courier-Oblique,
Times-Bold Italic, Helvetica-Bold Oblique,
Courier-Bold Oblique |
|
JPEG |
Supported Version JFIF1.02 |
|
Job control |
IVEC |
|
Status reply |
SNMP-MIB (Standard MIB, Canon-MIB), IVEC, CPCA |
|
Direct Print |
JPEG / PDF |
|
Type |
Flash ROM |
|
Update |
Updated from USB, Ethernet port (Utility use) |
|
Operation Panel |
Display |
LCD (3.5 inch / 8.8cm TFT colour) |
|
Language on operation panel |
16 Languages Selectable: Japanese / English / German / Italian / Spanish / Brazilian Portuguese / Dutch / Polish / Russian / Danish / Simplified Chinese / Traditional Chinese / Korean / Thai / Indonesian / Turkish |
|
Interface |
USB A Port |
Type |
USB Memory (Direct Print) |
|
USB B Port |
Type |
Built in (Hi-Speed USB) |
|
Mode |
Full Speed (12Mbit/sec), High Speed (480Mbit/sec), Bulk transfer
Connector type: Series B (4 pins) |
|
Gigabit Ethernet |
Type |
Built in |
|
Standard |
• IEEE 802.3 10base-T
• IEEE 802.3u 100base-Tx / Auto-Negotiation
• IEEE 802.3ab 1000base-T / Auto-Negotiation
• IEEE 802.3x Full Duplex |
|
Protocol |
SNMP [Canon-MIB, HTTP, TCP / IP (IPv4 / IPv6)] |
|
Wireless LAN |
Standard |
IEEE 802.11n / IEEE 802.11g / IEEE 802.11b |
|
Security |
• WEP (64 / 128-bit)
• WPA-PSK (TKIP / AES)
• WPA2-PSK (TKIP / AES) |
|
Print Head |
|
Print Head |
Model |
PF-10 |
|
Type |
Bubble-jet on demand |
|
Head configuration |
12 Colour integrated Type x 1 print head |
|
Nozzle pitch |
600dpi x 2 |
|
Nozzle per chip |
18,432 nozzles (1536 nozzles x 12 colours) |
|
Droplet size |
Minimum 4pl per colour |
|
Head replacement |
User replacement |
|
Ink Tank |
|
Ink Tank |
Model |
PRO-560: PFI-51 (160ml) / PFI-53 (330ml) / PFI-57 (700ml) |
|
Supply |
Tubing system (with sub-tank) |
|
Sub Ink Tank Capacity |
Each colour 30ml |
|
Colours |
Pigment 12 Colour (PBK / MBK / C / M / Y / PC / PM / GY / PGY / R / B / CO) |
|
Capacity |
Sales use: 160 / 330 / 700ml
Starter use: 330ml |
|
Level detection |
Detected by dot count and electrode (Empty) |
|
Smart chip |
Each ink tank is equipped with EEPROM which stores its ink level |
|
Media Handling |
|
Media Feed and Output |
Roll paper |
One Roll, Front-loading, Front Output |
|
Added Roll Paper |
One Roll, Front-loading, Front Output
(60 inch model: Default , 44 inch and 24 inch models: Option) |
|
Cut sheet |
Front-loading, Front Output (Manual feed using locking lever) |
|
Paper path switch (roll / cut sheet) |
Manually switching (Roll paper, Cut sheet)
Automatic switching (Upper Roll, Lower Roll) |
|
Delivery direction |
Face-up, Front side |
|
Media Take-up Unit |
Dual directions rolling take-up |
|
Maximum stacking number of delivered prints |
Standard position: 1 sheet
Flat position A2 landscape, glossy paper less 10 sheets, coated paper less than 20 sheets
(excludes strong curled condition) |
|
Media Size |
Roll paper (Width) |
ISO: A3, A3+, A2, A1, A0 |
|
JIS: B4, B2, B1, B0 |
|
ARCH: 24", 30", 36" |
|
Others: 8", 10", 14", 16", 17", 42", 44", Banner (300mm) |
|
Cut sheet |
ISO: A4, A3, A3+, A2, A2+, A1, A0, B4, B3, B2, B1, B0 |
|
DIN: C4, C3, C2, C1, C0 |
|
JIS: B4, B3, B2, B1, B0 |
|
ANSI: 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44" |
|
ARCH: 9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 x 38", 27 x 39", 30 x 42", 36 x 48" |
|
Photo: (20 x 24"), (18 x 22"), (14 x 17"), (12 x 16"), (10 x 12"), (10 x 15"), (8 x 10"), US photo (16 x 20") |
|
Poster: 20 x 30", 30 x 40", 42 x 60", 44 x 62", 300 x 900mm |
|
Others: 13 x 22" |
|
Media Thickness |
Roll paper |
0.07 ~ 0.8mm |
|
Cut sheet |
|
Maximum Outside Diameter of Roll Paper |
170mm or less |
|
Media Core Size |
Internal diameter of roll core: 2 / 3" |
|
Media Width |
Roll paper |
203.2 ~ 1524mm |
|
Cut sheet |
203.2 ~ 1524mm |
|
Minimum Printable Paper Length |
203.2mm |
|
Maximum Printable Paper Length |
Roll paper |
18m (Varies according to the OS and application) |
|
Cut sheet |
1.6m |
|
Margins |
|
Recommended area |
Roll paper |
Top: 20mm, Bottom: 3mm, Side: 3mm |
|
Cut sheet |
Top: 20mm, Bottom: 20mm, Side: 3mm |
|
Printable area |
Roll paper |
Top: 3mm, Bottom: 3mm, Side: 3mm |
|
Roll paper (borderless print) |
Top: 0mm, Bottom: 0mm, Side: 0mm |
|
Cut sheet |
Top: 3mm, Bottom: 20mm, Side: 3mm |
|
Borderless Printing |
Media Width |
[Recommended] 515mm (JIS B2), 728mm (JIS B1), 1030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
[Printable] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 16", 30", 300mm |
|
Environment certifications |
|
RoHS |
