Tính năng

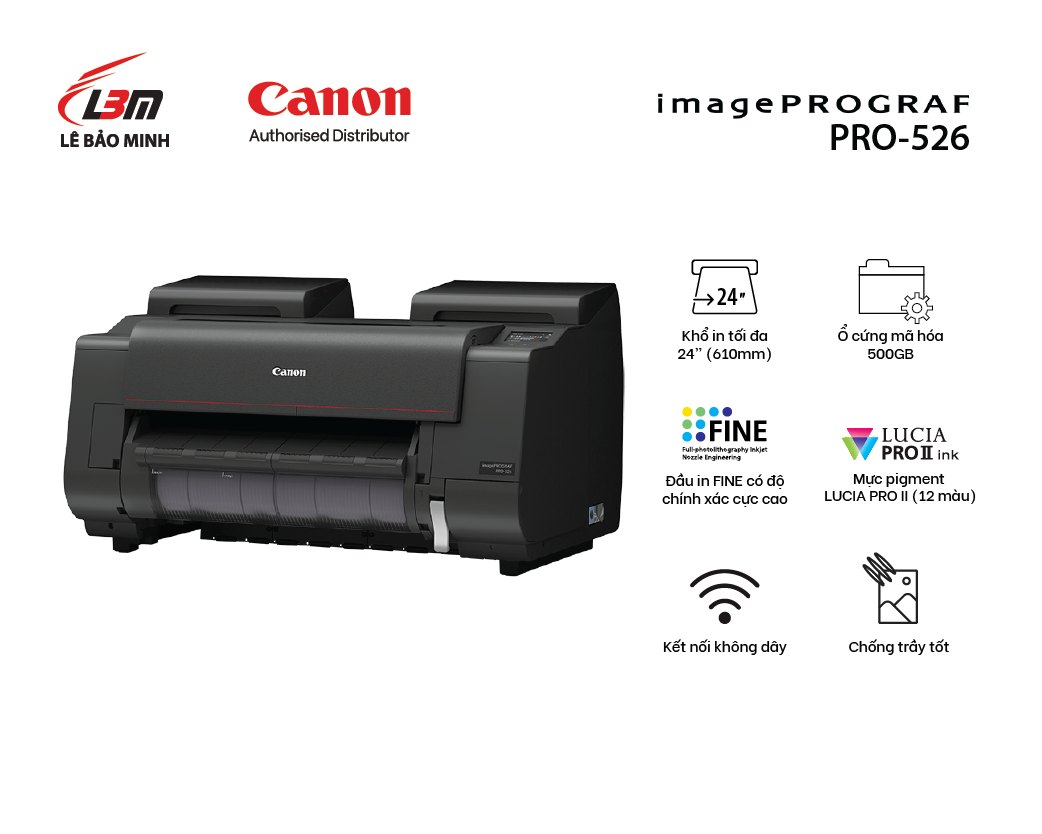

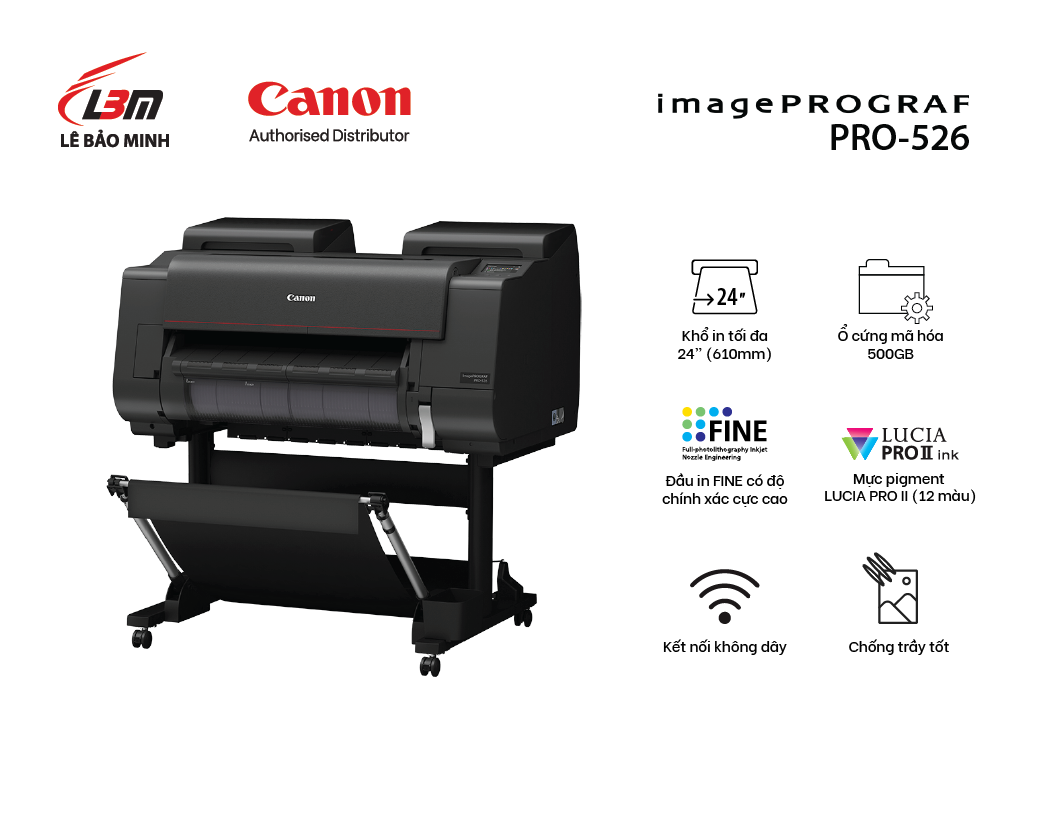

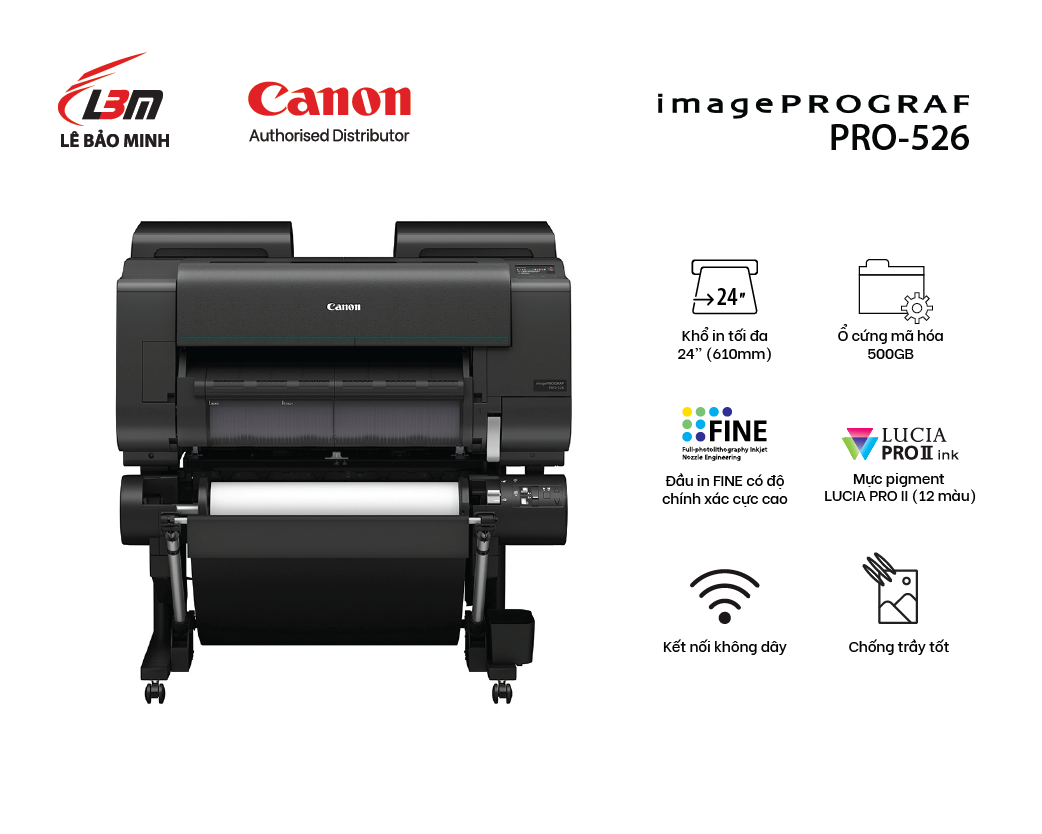

Mang đến hiệu năng in ấn mạnh mẽ, mực LUCIA PRO II 12 màu cùng bản in chất lượng, có khả năng chống trầy xước, chống ánh sáng giúp bảo quản trong thời gian dài, bộ ba máy in imagePROGRAF PRO-526, PRO-546, PRO-566 là lựa chọn hàng đầu cho các phòng tranh, triển lãm nghệ thuật, phòng chụp ảnh của các nhiếp ảnh gia chuyên nghiệp.

Chi tiết

ẨnHiện

PRO-2600 / PRO-526

Power supply 100-240 V AC (50/60 Hz)
Power consumption

When printing (wired LAN connection): Approx. 85 W

Standby (wired LAN connection): Approx. 1.7 W

Standby (all ports connected): Approx. 2.2 W

When power is off: Approx. 0.1 W *1

*1 The printer uses a trace amount of power even when turned off. To stop all power consumption, turn off the printer and unplug the power cord.

Operating environment

Temperature: 59 to 86 °F (15 to 30 °C)

Humidity: 10 to 80 % RH (with no condensation)

Dimensions (W x D x H)

Printer only:

Approx. 43.8 x 28.9 x 24.8 in. (1110 x 734 x 628 mm)

Printer and Stand (when basket is not used):

Approx. 43.8 x 30.2 x 46 in. (1110 x 766 x 1168 mm)

Printer and Stand (when using basket: basket position 1) *:

Approx. 43.8 x 38.8 x 46 in. (1110 x 984 x 1168 mm)

Printer and Stand (when using basket: basket position 2/4/5) *:

Approx. 43.8 x 48.2 x 46 in. (1110 x 1222 x 1168 mm)

Printer and Stand (when using basket: basket position 3) *:

Approx. 43.8 x 56.5 x 46 in. (1110 x 1434 x 1168 mm)

For details on the Basket Position, see Example Basket Configurations.

Stand may not be provided depending on the region where the printer is purchased.

Weight

Printer only (without print head and ink tanks):

Approx. 187 lb (85 kg)

Stand and basket: Approx. 37 lb (17 kg)

Roll unit: Approx. 37 lb (17 kg)

Space for installation (W x D x H)

Printer only:

Approx. 59.5 x 56.5 x 40.2 in. (1510 x 1434 x 1020 mm)

Printer and Stand (when using basket: basket position 1) *:

Approx. 59.5 x 66.3 x 61.5 in. (1510 x 1684 x 1560 mm)

For details on the Basket Position, see Example Basket Configurations.

Printing performance

Print method Bubblejet
Maximum resolution

2400 dpi (horizontally) * x 1200 dpi (vertically)

Prints with a minimum 1/2400 inch dot pitch between ink droplets.

Number of nozzles 18432 nozzles (1536 nozzles per color)

Memory and hard disk

Memory 3 GB
Hard disk capacity

500 GB

Personal mail boxes (Permanent storage area): 308 GB

Print job storage capacity

Common Box: 100 jobs

Personal Boxes: 100 jobs

Displayed job history

Operation panel: 10 jobs

Remote UI: 500 jobs

Interface

USB and the network can be used at the same time.

You cannot use Wi-Fi and wired LAN at the same time.

USB

Hi-Speed USB *

To use Hi-Speed USB, your computer must support Hi-Speed USB. Additionally, the Hi-Speed USB interface is completely backward compatible with USB 1.1, so the printer can be connected even if the computer interface is USB 1.1.

USB memory USB flash drive
LAN

Wired LAN: IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)

Wi-Fi: IEEE802.11n / IEEE802.11g / IEEE802.11b

Network Specifications

Communication protocol SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wired LAN specifications

Compliance standards: IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)

Transmission speed: 10 Mbps / 100 Mbps / 1000 Mbps (automatically selected)

Security:IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP)

Wi-Fi specifications

Compliance standards: IEEE802.11n / IEEE802.11g / IEEE802.11b

Frequency range: 2.4 GHz

Channels: 1-11 or 1-13 *

Varies by country and region.

Effective range: Indoors 164 feet/50 m *

Varies according to environmental conditions.

Security:

WPA-PSK (TKIP/AES)

WPA2-PSK (TKIP/AES)

WPA3-SAE (AES)

WPA-EAP (AES) *

WPA2-EAP (AES) *

WPA3-EAP (AES) *

Supports IEEE802.1X (EAP-TLS / EAP-TTLS / PEAP)

Setup:

WPS (push button method/PIN code method)

Easy wireless connect

Operating Conditions

If operating conditions of the operating system are high, follow those.

Windows

Compatible Operating System (Standard supplied printer driver)

Windows 11

Windows 10

Windows 8.1

Windows 7

Windows Server 2022

Windows Server 2019

Windows Server 2016

Windows Server 2012 R2

Windows Server 2012

Windows Server 2008 R2

Use the latest Service Pack available.

Free hard disk space

20 GB or more

macOS

Compatible Operating System (Standard supplied printer driver) macOS Catalina 10.15.7 - macOS Ventura 13
Free hard disk space

20 GB or more

Other Supported OS

iOSiPadOSAndroidChrome OS

Some functions may not be available with the supported OS.
