| Model |

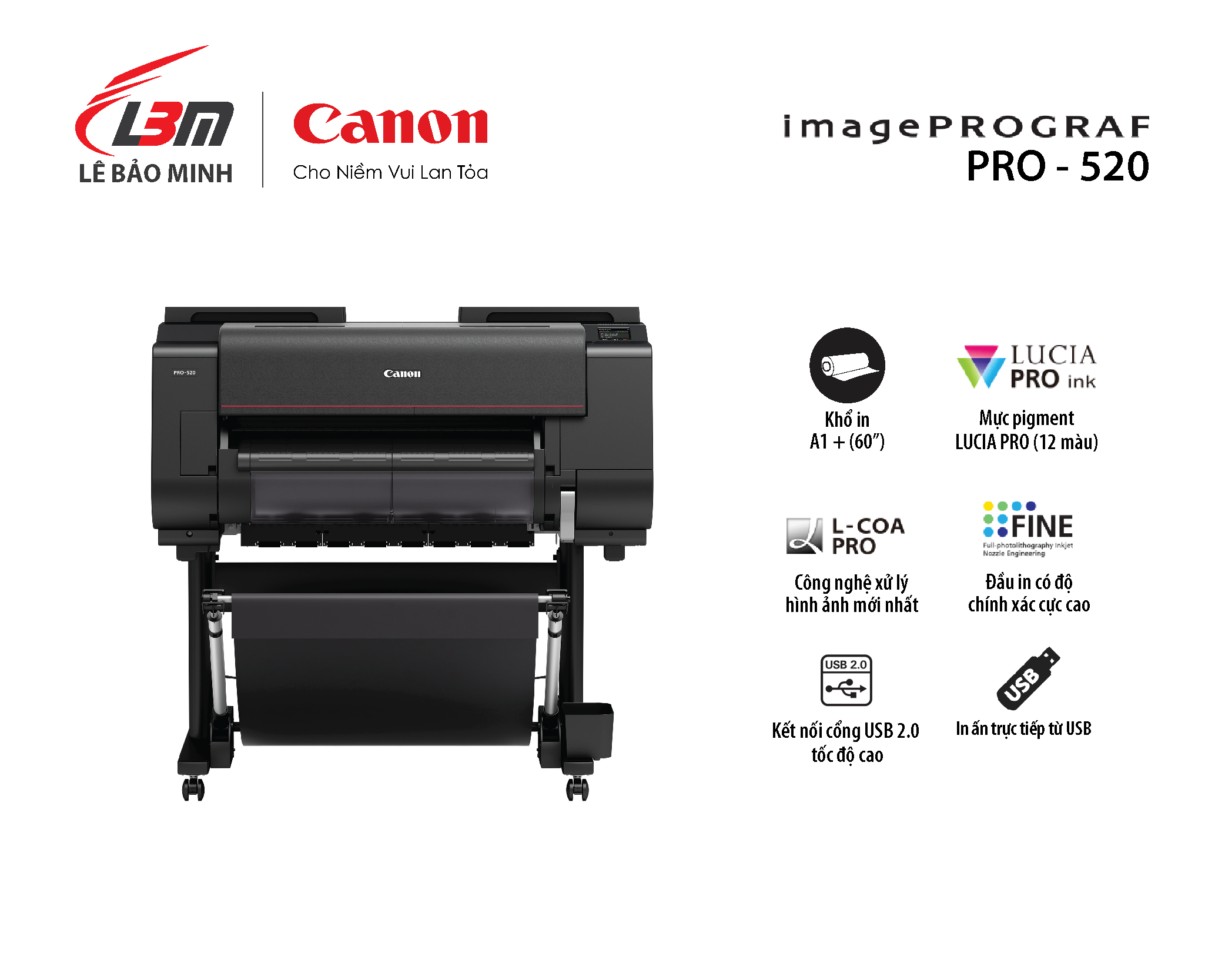

PRO-520 |
| Printer Type |
24" / 610mm |
| Ink Type |
Pigment inks / 12 colour:
Photo Black (PBK) / Matte Black (MBK) / Cyan (C) / Magenta (M) / Yellow (Y) / Photo Cyan (PC) / Photo Magenta (PM) / Grey (GY) / Photo Grey (PGY) / Red (R) / Blue (B) / Chroma Optimiser (CO) |
| Maximum Print Resolution |
2400 x 1200dpi |
| Installation |
User installation |
Physical Dimensions
W x D x H (mm), Weight (kg)
(including Roll Holder Set, excluding ink and print head) |
Main Unit + Stand + Basket |
1110 x 984 x 1168 (Basket Opened)
1110 x 766 x 1168 (Basket Closed)
Weight: approx. 101kg |
| Main Unit + Roll Unit + Stand + Basket |
Weight: approx. 117kg |
Packaged Dimensions
W x D x H (mm), Weight (kg) |
Printer (Main unit with pallet) |
1324 x 902 x 1042mm,
Weight: approx: 129kg |
| Stand/Basket |
1111 x 797 x 223mm,
Weight: approx: 23kg |
| Roll Unit |
1244 x 562 x 461mm
Weight: approx: 23kg |
| Power and Operating Requirements |
Input power |
AC 100 - 240V (50 - 60Hz) |
| Power consumption |
Printing: 112W or less
Sleep mode: 3.6W or less
Power off: 0.5W or less |
| Recommended Environment |
Temperature: 15 ~ 30°C, Humidity: 10 ~ 80% RH (no dew condensation) |
| Acoustic Noise |
Acoustic pressure |
Operation approx. 48dB (A) (Glossy paper, Image, Print priority: Standard)
Standby: 35dB (A) or less
(Measured on ISO 7779 standard) |
| Acoustic power |
Operation approx. 6.4Bels or less (Glossy paper, Image, Print priority: Standard)
(Measured on ISO 7779 standard) |
| Detector and Adjustment |
Registration adjustment |
Automatic / Manual |
| Banding adjustment |
Automatic / Manual |
| Line length adjustment |
Manual |
| Head slant adjustment |
Automatic |
| Colour calibration |
Yes (with a colour calibration notification function) |
| Head gap adjustment |
Automatic / Manual (6 levels) |
| Non-firing detection |
Yes |
| Non-firing compensation |
Yes |
| Roll media remaining detection function |
Yes |
| Line Accuracy |
±0.1 % or less
User adjustments necessary. Printing environment and media must match those used for the adjustments. |
| Memory |
Standard memory |
3GB |
| Hard Drive |
320GB |
| Firmware |
Languages |
Printer language: SGRaster (Swift Graphic Raster), PDF & JPEG |
| PDF |
Supported Version 1.7
- List of the built-in fonts
Times-Roman, Helvetica, Courier, Symbol, Times-Bold, Helvetica-Bold, Courier-Bold,
ZapfDingbats, Times-Italic, Helvetica-Oblique, Courier-Oblique, Times-Bold Italic,
Helvetica-Bold Oblique, Courier-Bold Oblique |
| JPEG |
Supported Version JFIF1.02 |
| Job control |
IVEC |
| Status reply |
SNMP-MIB (Standard MIB, Canon-MIB), IVEC, CPCA |
| Direct Print |
JPEG / PDF |
| Type |
Flash ROM |
| Update |
Updated from USB, Ethernet port (Utility use) |
| Operation Panel |
Display |
LCD (3.5" / 8.8cm TFT colour) |
| Language on operation panel |
16 Languages Selectable: Japanese / English / German / Italian / Spanish / Brazilian / Portuguese / Dutch / Polish / Russian / Danish / Simplified Chinese / Traditional Chinese / Korean / Thai / Indonesian / Turkish |
| Interface |
USB A Port |
Type |
USB Memory (Direct Print) |
| USB B Port |
Type |
Built in (Hi-Speed USB ) |
| Mode |
Full Speed (12Mbit/sec), High Speed (480Mbit/sec), Bulk transfer
Connector type: Series B (4 pins) |
| Gigabit Ethernet |
Type |
Type: Built in |
| Standard |
• IEEE 802.3 10base-T
• IEEE 802.3u 100base-Tx / Auto-Negotiation
• IEEE 802.3ab 1000base-T / Auto-Negotiation
• IEEE 802.3x Full Duplex |
| Protocol |
SNMP (Canon-MIB ), HTTP, TCP / IP(IPv4 / IPv6) |
| Wireless LAN |
Standard |
Standard: IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Security |
• WEP (64 / 128-bit,
• WPA-PSK (TKIP / AES)
• WPA2-PSK (TKIP / AES) |
| Print Head |
| Print Head |
Model |
PF-10 |
| Type |
Bubble-jet on demand |
| Head configuration |
12 Colour integrated Type x 1 print head |
| Nozzle pitch |
600dpi x 2 |
| Nozzle per chip |
18,432 nozzles (1536 nozzles x 12 colours) |
| Droplet size |
minimum 4pl per colour |
| Head replacement |
User replacement |
| Ink Tank |
| Ink Tank |
Model |
PRO-520: PFI-51 (160ml) / PFI-53 (330ml) / PFI-57 (700ml) |
| Supply |
Tubing system (with sub-tank) |
| Sub Ink Tank Capacity |
Each colour 30ml |
| Colours |
Pigment 12 Colour (PBK / MBK / C / M / Y / PC / PM / GY / PGY / R / B / CO) |
| Capacity |
Sales use: 160ml / 330ml / 700ml
Starter use: 160ml |
| Level detection |
Detected by dot count and electrode (Empty) |
| Smart chip |
Each ink tank is equipped with EEPROM which stores its ink level |
| Media Handling |
| Media Feed and Output |
Roll paper |
One Roll, Front-loading, Front Output |
| Added Roll Paper |
One Roll, Front-loading, Front Output
(60" model: Default , 44" and 24" models: Option) |
| Cut sheet |
Front-loading, Front Output (Manual feed using media locking lever) |
| Paper path switch (roll / cut sheet) |
Manually switching (Roll paper, Cut sheet)
Automatic switching (Upper Roll, Lower Roll) |
| Delivery direction |
Face-up, Front side |
| Media Take-up Unit |
Dual directions rolling take-up |
| Maximum stacking number of delivered prints |
Standard position: 1 sheet
Flat position A2 landscape, glossy paper less 10 sheets, coated paper less than 20 sheets
(excludes strong curled condition) |
| Media Size |
Roll paper (Width) |
ISO: A3, A3+, A2, A1 |
| JIS: B4, B2 |
| ARCH: 24" |
| Others: 8", 10", 14", 16", 17", Banner (300mm) |
| Cut sheet |
ISO: A4, A3, A3+, A2, A2+, A1, B4, B3, B2 |
| DIN: C4, C3, C2 |
| JIS: B4, B3, B2 |
| ANSI: 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34" |
| ARCH: 9 x 12", 12 x 18", 18 x 24", 24 x 36" |
| Photo: (20 x 24"), (18 x 22"), (14 x 17"), (12 x 16"), (10 x 12"), (10 x 15"), (8 x 10"), US photo (16 ｘ 20") |
| Poster: 20 x 30", 300 x 900mm |
| Others: 13 x 22" |
| Media Thickness |
Roll paper |
0.07 ~ 0.8mm |
| Cut sheet |
| Maximum Media Roll Diameter |
170 mm or less |
| Media Core Size |
Internal diameter of roll core: 2 / 3" |
| Media Width |
Roll paper |
203.2 ~ 610mm |
| Cut sheet |
203.2 ~ 610mm |
| Minimum Printable Paper Length |
203.2mm |
| Maximum Printable Paper Length |
Roll paper |
18m (Varies according to the OS and application) |
| Cut sheet |
1.6m (With Stand) |
| Margins |
| Recommended area |
Roll paper |
Top: 20mm, Bottom: 3mm, Side: 3mm |
| Cut sheet |
Top: 20mm, Bottom: 20mm, Side: 3mm |
| Printable area |
Roll paper |
Top: 3mm, Bottom: 3mm, Side: 3mm |
| Roll paper (borderless print) |
Top: 0mm, Bottom: 0mm, Side: 0mm |
| Cut sheet |
Top: 3mm, Bottom: 20mm, Side: 3mm |
| Borderless Printing |
Media Width |
[Recommended] 515mm (JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable ] 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8", 16", 300mm |
