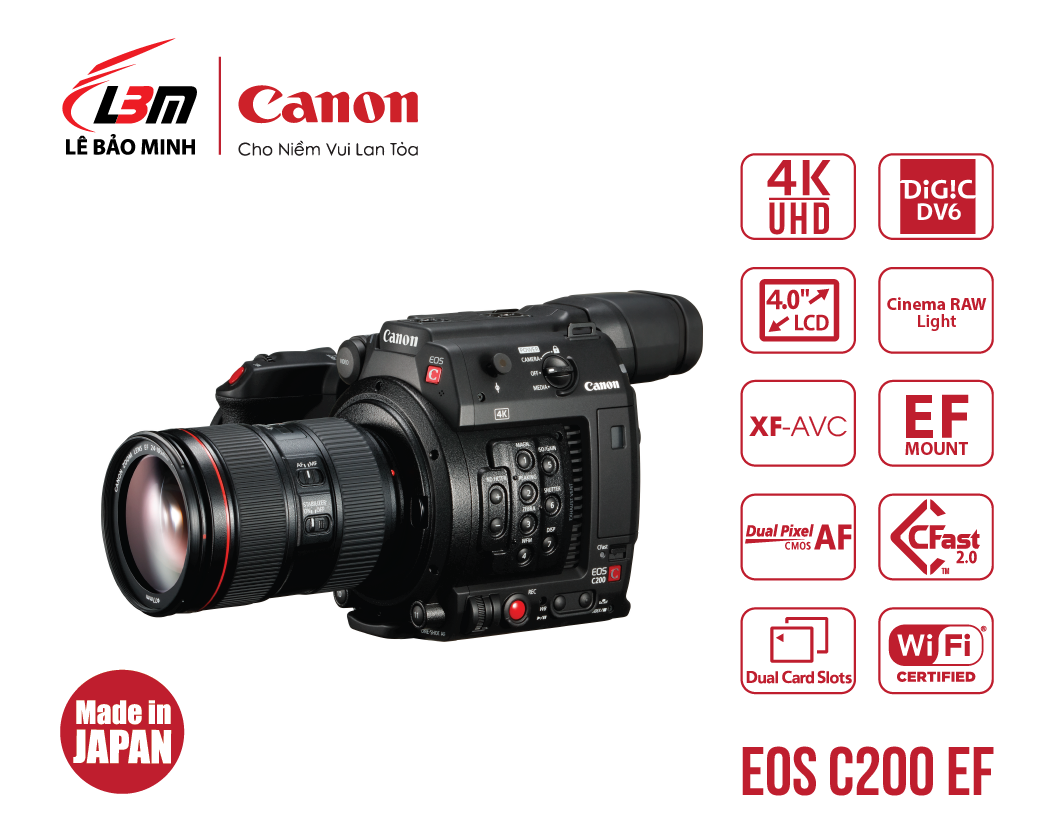

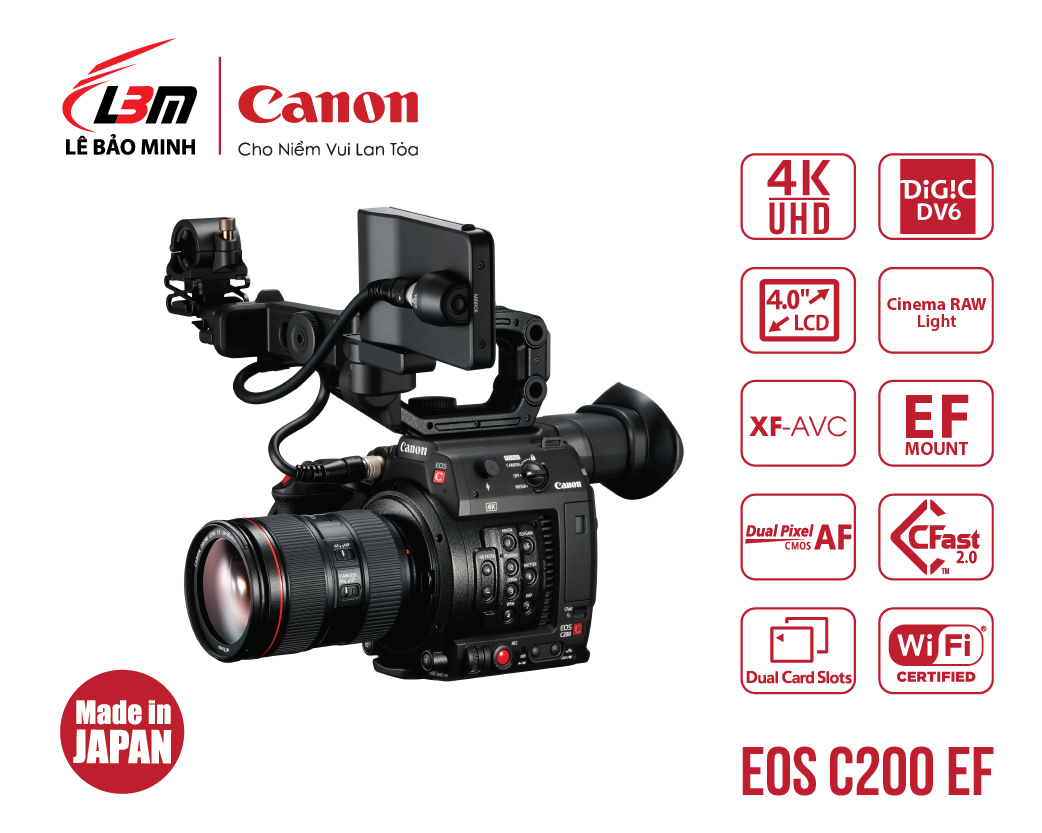

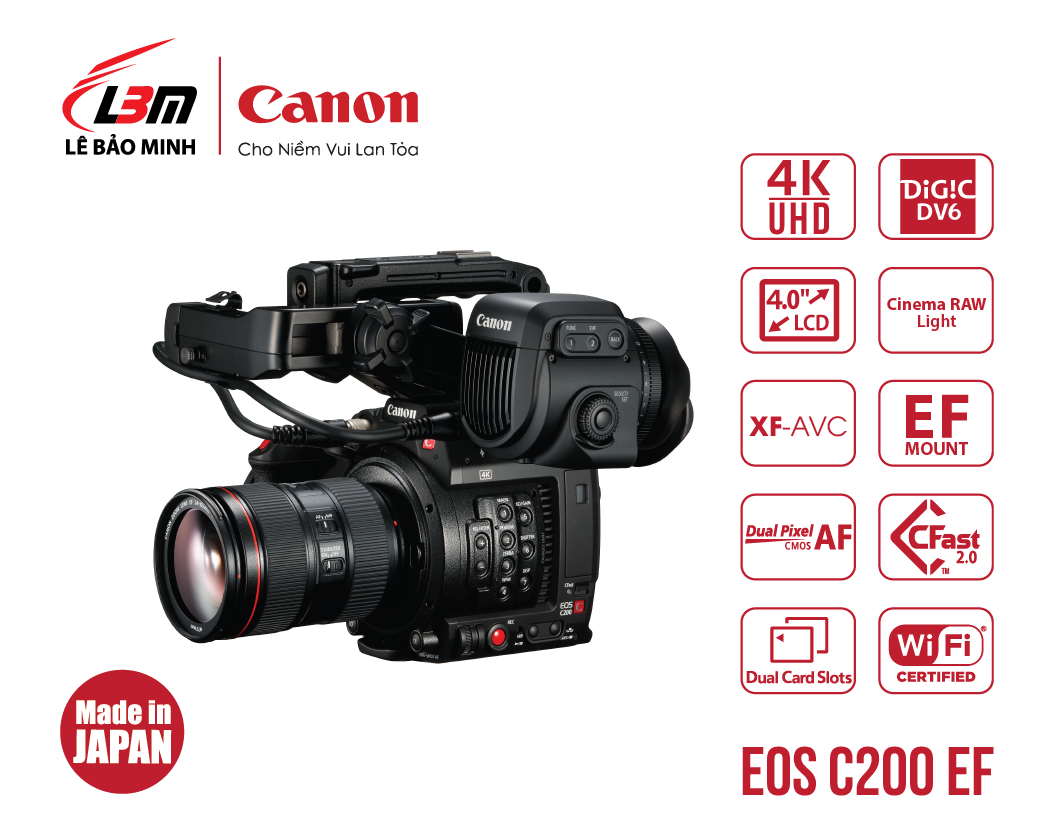

Encompasses both mobility and the expressive power of 4K

The 8.85 effective megapixels of the EOS C200’s 4K Super 35mm, large-format CMOS sensor weaves ultra high-definition and richly textured imagery, aided by the newly-developed Dual DIGIC DV 6 image processing platform. The camera supports a new RAW format, Cinema RAW Light, which can record DCI 4K 60P/50P RAW images to a CFast 2.0 (VPG130) card without the need for an external recorder. 4K Cinema RAW Light files contain abundant information, which not only enables format conversion with less image degradation but is also ideal for HDR recording. Meanwhile, 4K UHD 60P/50P movies can be recorded in the versatile MP4 format to SD cards. Dual Pixel CMOS AF, which is supported via touchscreen operation, enables easy and convenient pinpoint focusing. A compatible sub-camera for the EOS C700 and C300 Mark II with its support for Canon Log and Canon Log-3, the EOS C200’s lightweight, compact body also makes it suitable for use on the field, whether for on-scene reporting or for documentary shoots.

*EOS C200: All-in-one model bundled with grip, handle, built-in viewfinder and 4.0 inch touchscreen LCD monitor for usage right out of the box

  • Super 35mm Format 8.85-megapixel CMOS Sensor
  • Compatible with both DCI 4K/UHD 4K
  • Cinema RAW Light (No external recorder required for recording)
  • Dual Pixel CMOS AF & Dual Pixel Focus Guide
  • Full HD 120P/100P
  • Expandable to ISO 100, ISO 102400
  • Wi-Fi

Chi tiết

Sensor CMOS sensor (single-panel) equivalent to Super 35mm
Total Pixels Approx. 9.84 megapixels (4206 x 2340)
Number of effective pixels 4096 x 2160 or 2048 x 1080: Approx. 8.85 megapixels
3840 x 2160 or 1920 x 1080: Approx. 8.29 megapixels
Filter RGB primary color filter (Bayer array)
Exposure mode
  1. Manual exposure based on shutter setting, iris setting, ISO/gain setting, and ND filter setting
  2. Push auto iris control, auto iris control
    (light metering system selection/AE shift possible)
Shutter setting Speed, Angle, Clear Scan, Slow, or Off mode selected
Either 1/3 or 1/4 steps selected as speed increment
Iris setting
  1. Manual setting in 1/2-step increments, 1/3-step increments and fine increments possible
  2. Push auto IRIS control
  3. Auto IRIS control – † Please refer to the list of supported lenses
ISO speed setting 1 step, 1/3 step settings
160 – 25600 / [*100 – 102400]
* When sensitivity is expanded
Gain setting Normal -2dB – 42dB / [*-6dB – 54dB]
Fine: Setting in 0.5dB step increments possible
* When sensitivity is expanded
ND filter 5 density settings (2, 4, 6, 8*, 10* stops)
* when expansion is selected
Motorized drive
Focus Control Dual Pixel CMOS AF supported
Manual Focus, One-shot AF, Continuous AF, AF-Boosted MF,
Face Detection AF (only lenses that support AF functions can be used in any of these modes), Focus Guide modes
White balance AWB, Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC, Daylight, Tungsten, Set A, Set B)
Frame rate options
  1. 59.94Hz mode (59.94P / 29.97P / 23.98P)
  2. 50.00Hz mode (50.00P / 25.00P)
  3. 24.00Hz mode (24.00P)
RAW Video Video format Cinema RAW Light
Resolution 4096 x 2160
Bit rate 1 Gbps
Sampling 50.00P / 59.94P: 10-bit
25.00P / 24.00P / 29.97P / 23.98P: 12-bit
Audio Linear PCM: 16-bit / 48kHz / 4 channels
MP4 Video Video compression formats MPEG-4 AVC/H.264
Resolution 3840x2160 / 1920x1080 / 2048x1080
Bit rate / [Resolution]

(1-3) All figures apply with Variable Bit Rate Recording
1. 150Mbps (3840 x 2160)
2. 35Mbps (1920 x 1080)
3. 35Mbps (2048 x 1080) RAW Sub-Recording
Color sampling YCC 4:2:0 8-bit
Audio MPEG-4 AAC-LC (16-bit / 48kHz / 2 channels)
Linear PCM (16-bit / 48kHz / 4 channels)
Recording media
  1. CFast card (1 slot): RAW movies
  2. SD card (2 slots): Recording of MP4 movies, photos (JPEG), custom pictures, menus and other data possible
Time code Non-Drop Frame or Drop frame*
Rec Run, Free Run, Regeneration
* In 59.94P / 29.97P mode only
Rec mode (MP4 recoding) Slow motion recording, Pre-recording, Frame recording, Interval recording
Other recording functions (MP4 recording) Relay recording, Double Slot recording
Others Custom Picture setting, Black Balance adjustments, Color bars, Peaking display, Zebra display, My Menu setting, Fan, Waveform Monitor display, Assignable Buttons (1-17), Key Lock, Marker display, Enlarged display, Custom display, Peripheral Illumination Correction, GPS support (GP-E2), Monaural microphone, and other functions
Playback operations Normal playback, Fast Forward (at speeds of ×5, ×15, ×60), Fast Reverse (at speeds of ×5, ×15, ×60), Frame Forward, Frame Reverse, Rec Review
Clip display 3x4 (clip) index screen (RAW / MP4 / Photo)
Viewfinder (C200 only) 0.46” (1.18 cm on the diagonal), color wide-screen organic EL display
Approx. 1,770,000 dots, 100% field of view ratio
Input only REMOTE terminal, MIC jack, XLR terminals (2 sets)
Output only SDI terminal, HDMI OUT terminal, headphones jack, USB terminal, VIDEO terminal
Input/output control Ethernet terminal
Power supply 14.4V DC (battery pack), 16.7V DC (DC-IN)
Related accessories Battery Pack BP-A30 / BP-A60
Battery Charger CG-A10 / CG-A20
LCD Monitor LM-V1
LCD Attachment Unit LA-V1
Clamp Base CL-V2
Camera Grip GR-V1
Handle Unit HDU-2
OLED Electronic View Finder EVF-V70
Shoulder Support Unit SU-15
8-pin Remote Cable RR-10/RR-100
Rod Clamp RD-1
AC Adapter CA-A10
Compact Power Adapter CA-CP200B
Unit Cable UN-5/UN-10
Remote Controller RC-V100
GPS Receiver GP-E2
Shoulder Strap SS-1200
Tripod Adapter TA-100
Tripod Base TB-1
EF lens groups, EF cinema lens groups
Accessories designed for the EF lens group and EF cinema lens group

Type Dual DIGIC DV 6

Lens Mount Canon EF mount
[Canon EF lens group (EF-S lenses included), EF cinema lenses (EF mount)]
