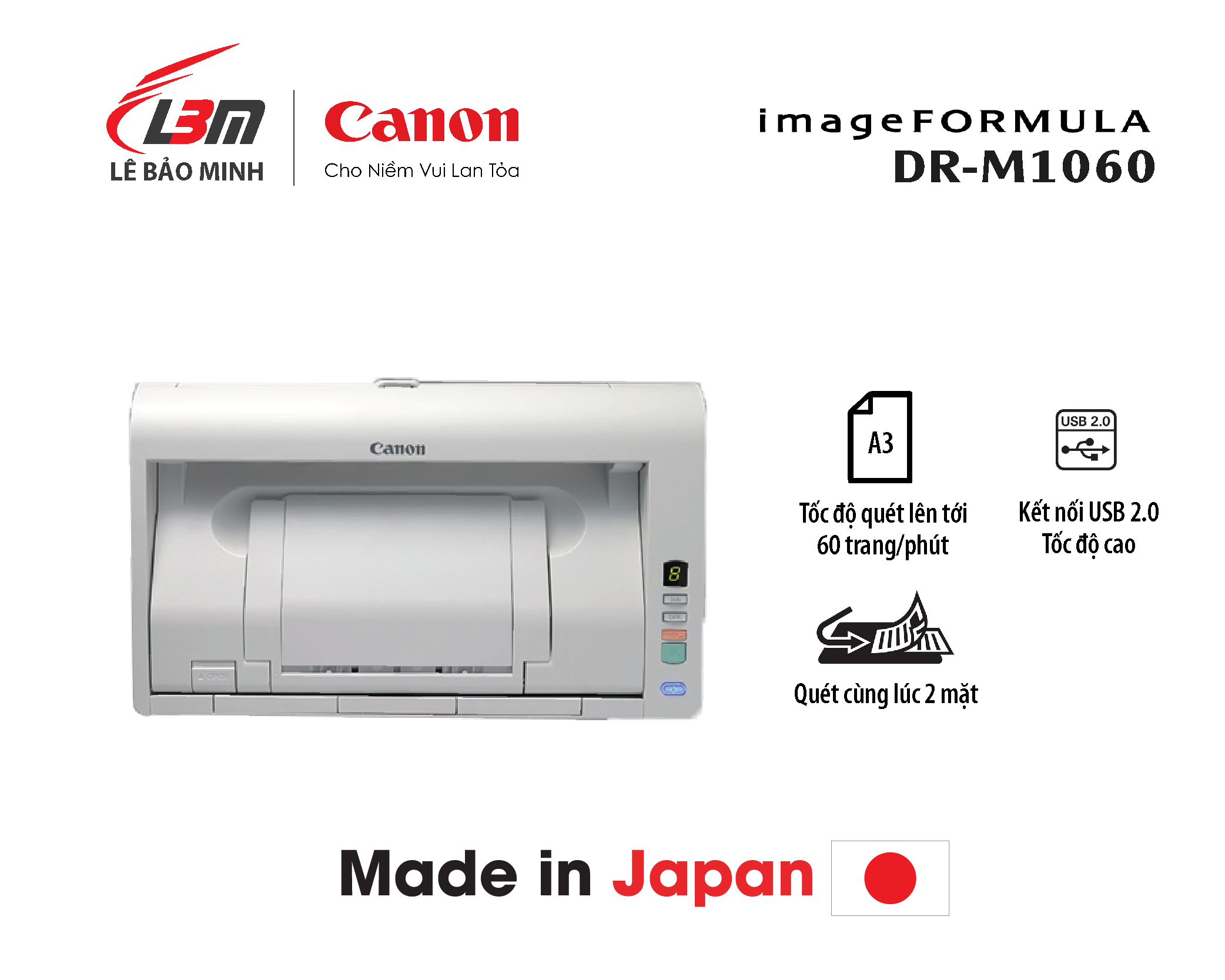

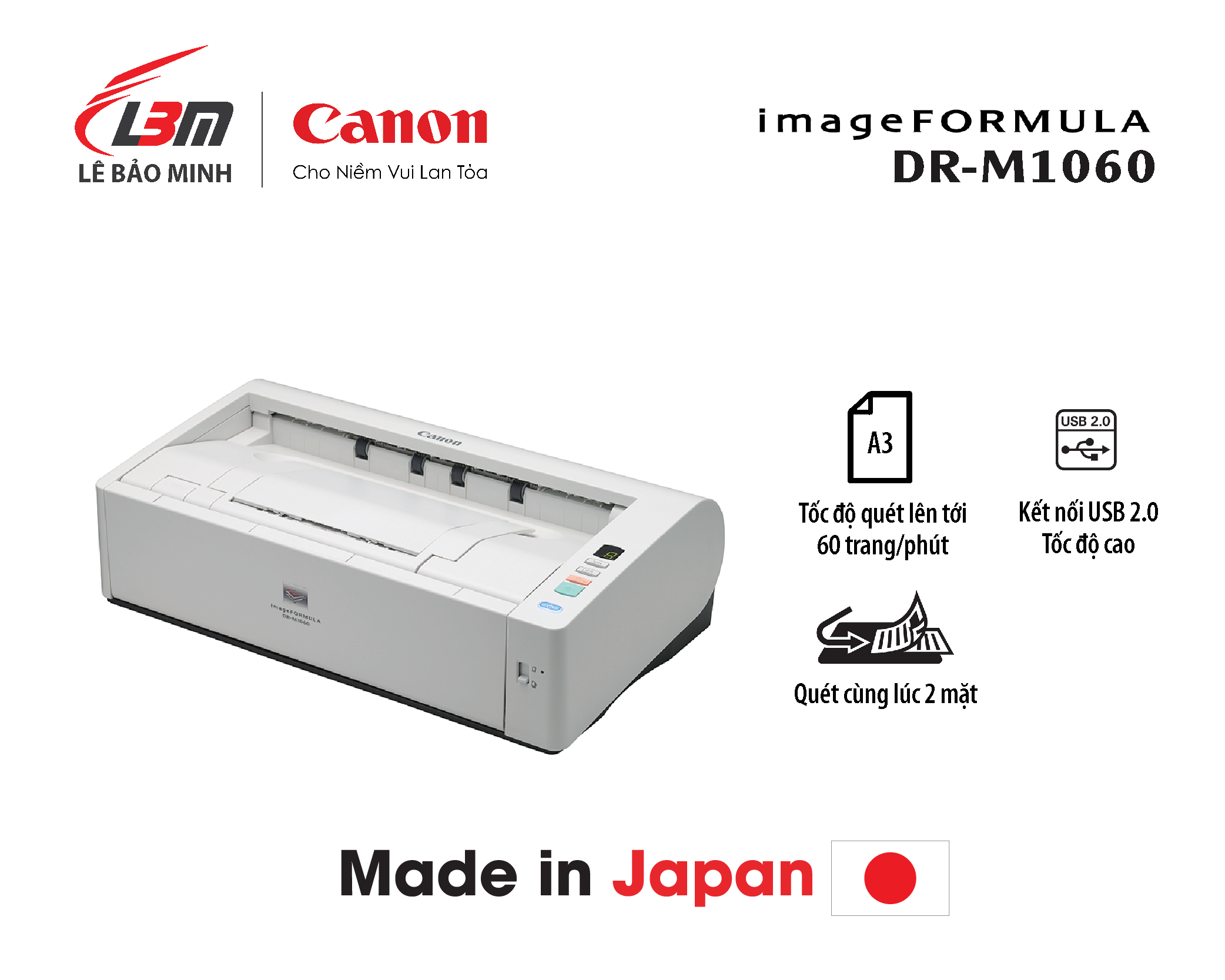

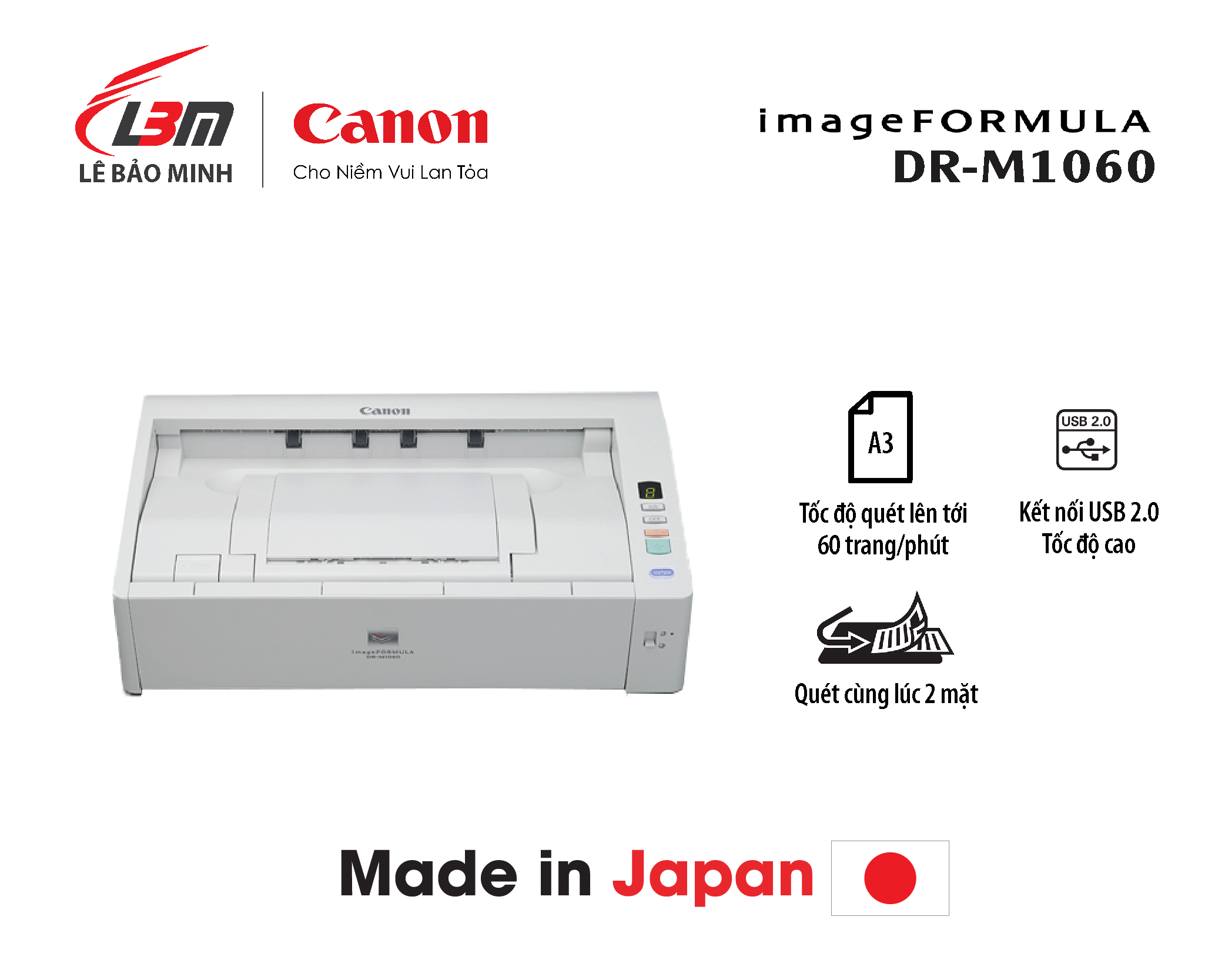

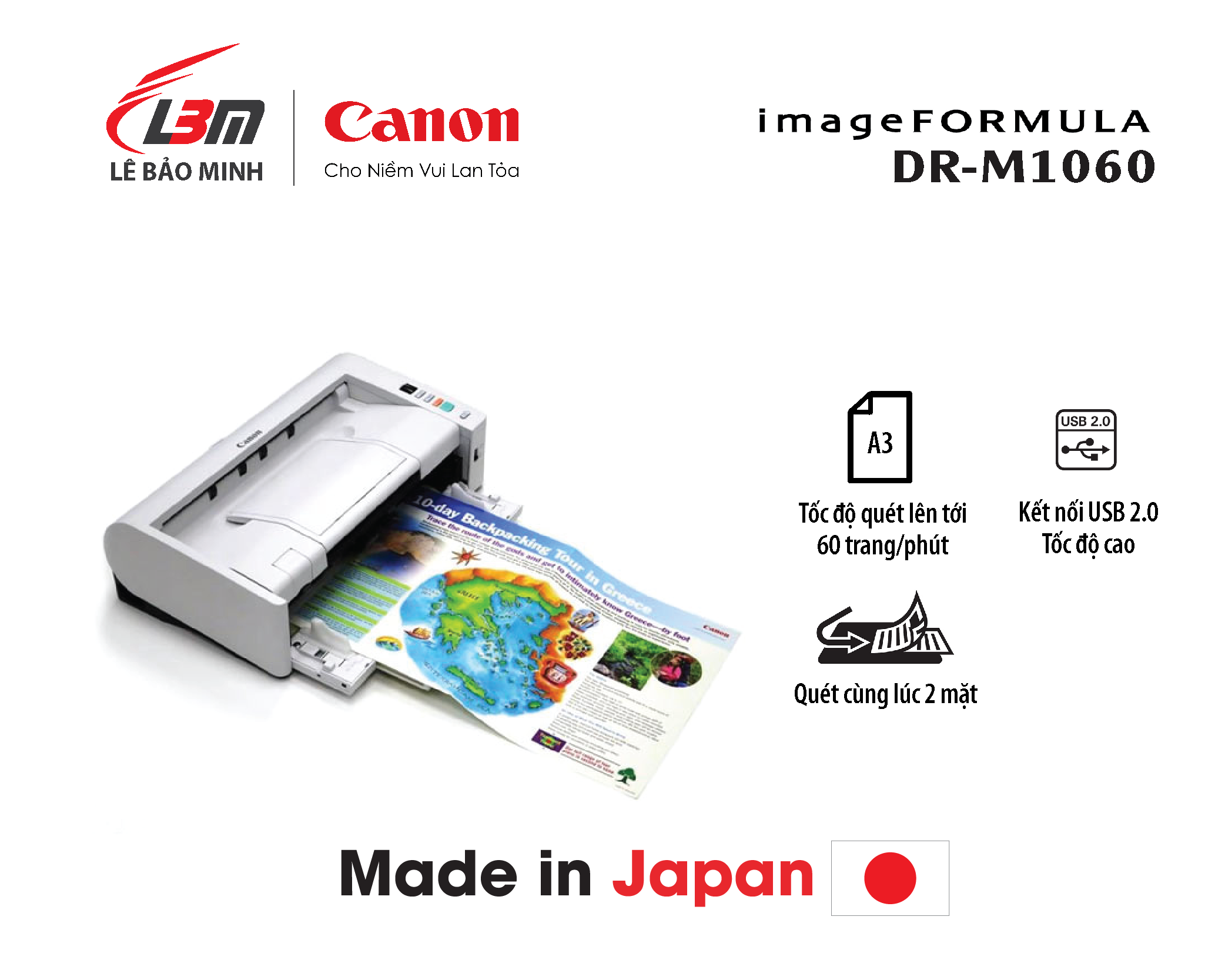

Ultra-compact A3 scanner offering reliable and versatile performance.
The DR-M1060 document scanner is built to handle high-speed scanning with U-turn and straight paper path.
Document scanner
Scan size: up to A3
Speed: up to 60ppm / 120ipm (2-sided) A4R
Comfortable and versatile
Despite its compact desktop-scanner size, the DR-M1060 is capable of scanning A3 documents. Its unique U-turn path design allows documents to be fed and ejected from the front of the scanner for convenient and efficient scanning operations. The U-turn path can be switched to a straight path for plastic cards, thick paper, and other types of documents that cannot be bent, expanding the variety of media that can be scanned.
Fast and reliable
The DR-M1060 is extremely productive with ultra-fast duplex scanning speeds up to 120ipm (A4R) and a 60-sheet document feeder. Despite its small size, it is built to handle big workloads of up to 7,500 documents a day.
Superb image processing
Perfect your scans with image processing functions. The background smoothing function can reduce unevenness and smoothes your scanned image. The Automatic Colour Detection allows the scanner to automatically determine which documents be saved in color or grayscale, based on detected color content with threshold value. This means you don’t have to separate black-and-white and color documents prior to scanning, and image file sizes are kept smaller than scanning the whole batch in color mode.
Bundled Software | CaptureOnTouch, CapturePerfect, eCopy PDF Pro Office, VRS |
Dimensions (W x D x H) |
Trays closed: 424 x 246 x 120 mm Trays open: 424 x 440 x 210 mm |
Ejection pockets | - |
Interface | Hi-Speed USB 2.0 |
MICR | - |
On-Board Jogger | - |
Operating Environment |
Temperature: 10°C to 32.5°C Humidity: 20% to 80% RH |
Supported Operating System | Windows |
Options / Consumables | Barcode Module, 2D code Module, Flatbed Scanner Unit 102, Exchange Roller Kit |
Power | AC100 – 240 V |
Power Consumption |
Scanning: 32.5 W, Sleep mode: 2.5 W, Power Turned OFF: 0.5 W |
Weight | Approx. 6.1 kg |
Feeding Method | Automatic or manual |
Document thickness - Plain Paper |
Straight path: Weight: 27 – 255 g/m2 Thickness: 0.04 – 0.3 mm U-turn path: Weight: 27 – 128 g/m2 Thickness: 0.04 – 0.15 mm |
Document thickness - Postcard |
Weight: 128 – 300 g/m2 Thickness: 0.15 – 0.4 mm *PostCard can be scanned with straight path only. |
Document thickness - Business Card |
Weight: 380 g/m2 or less Thickness: 0.45 mm |
Document thickness - Card (ISO/IEC compliant) |
0.76 mm or less Thickness: Up to 1.4 mm for embossed cards |
Document thickness - Passport | - |
Feeding Capacity | 60 sheets |
Document size - Plain Paper (A4/LTR) |
Width: 50.8 – 300 mm, Length: 70 – 432 mm |
Document size - Long Document Mode | Up to 3,000 mm |
Document size - Postcard |
Width: 89 – 108 mm, Length: 127 – 152 mm |
Document size - Business card |
Width: 51 – 55 mm, Length: 85-91 mm |
Document size - Card (ISO/IEC compliant) |
54 x 86 mm (Straight path only, and embossed cards can be scanned at vertical feeding only) |
Document size - Passport | - |
Document size - Plastic card | - |
Document size - Magnetic card | - |
Light source | LED (red, green and blue) |
Maximum Resolution | 600 dpi |
Scan Resolution | 100 x 100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi |
Scanner Element | CIS |
Scanner Type | Desktop sheetfed scanner |
Scanning Modes | Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color |
Scanning Side | Simplex / Duplex |
Scanning speed |
A4 / LTR, Portrait, 200dpi: Black and White: 40ppm (simplex) / 80ipm (duplex) Grayscale: 40ppm (simplex) / 80ipm (duplex) Colour: 40ppm (simplex) / 80ipm (duplex) A4 / LTR, Landscape, 200dpi: Black and White: 60ppm (simplex) / 120ipm (duplex) Grayscale: 60ppm (simplex) / 120ipm (duplex) Colour: 60ppm (simplex) / 120ipm (duplex) *Actual scanning speed may vary depending on your system configuration and PC |
Suggested Daily Volume (Scans) | 7500 |
