Canon’s new generation of high performance production scanners
The DR-G2 series is optimized to deliver high quality scanning with ultra efficiency to demanding high volume environment.
With its advanced processing capabilities and high productivity, the DR-G2 series expands your business possibilities.

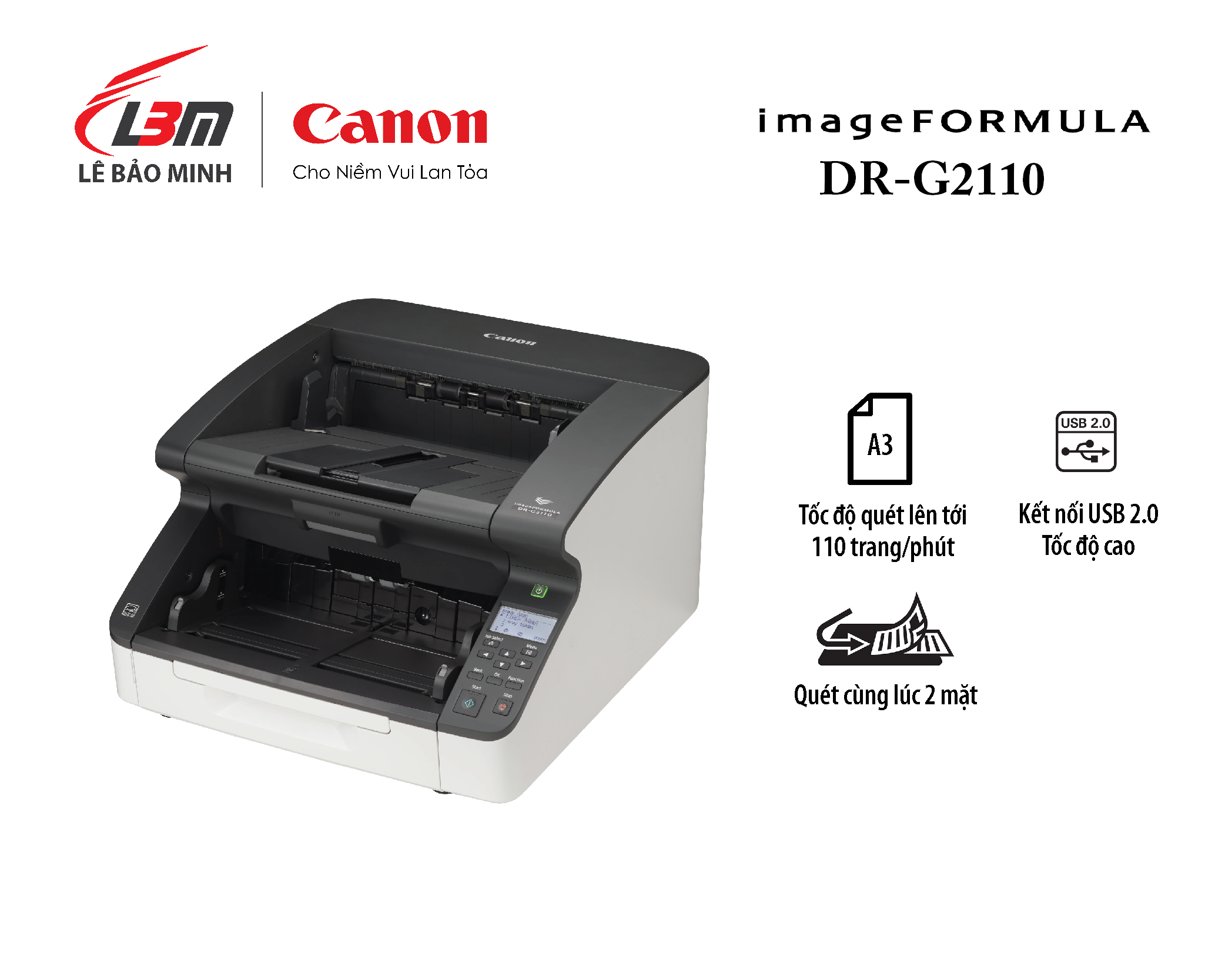

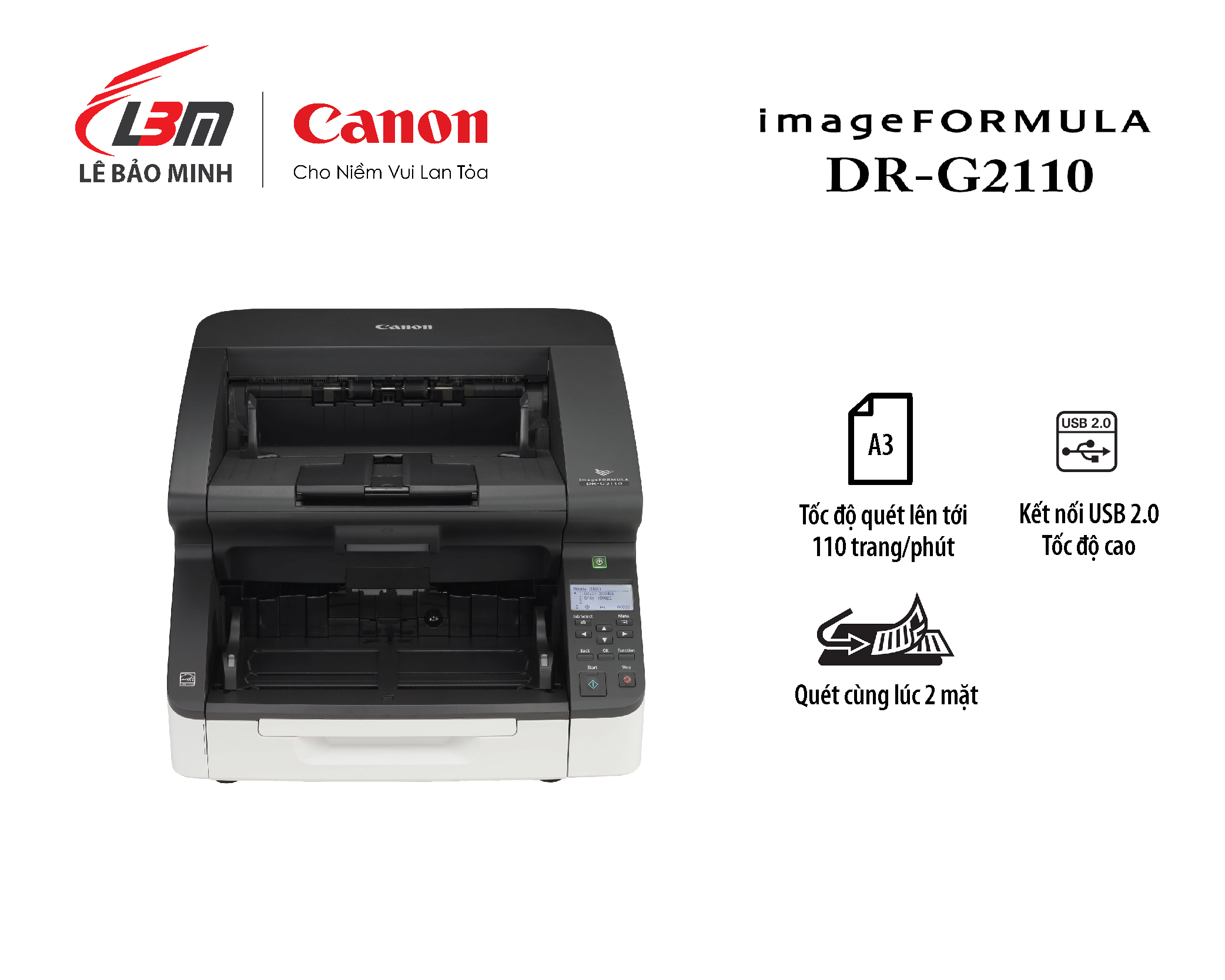

The DR-G2 series comprises of three new production scanner models, the DR-G2140/ 2110/ 2090.
Incorporate new DR Processor that achieves high speed scanning independent of PC environment
Speed:
DR-G2140: Up to 140ppm / 280ipm (landscape)
DR-G2110: up to 110ppm / 220ipm (landscape)
DR-G2090: up to 90ppm / 180ipm (landscape)
Scan size: Up to A3
Powerful Image Processing Independent of PCs
Incorporated with the dynamic DR Processor, DR-G2 series maintains high quality scanning even with high scanning settings independent of the performance of personal computers.
Ultra-fast and High Performance
The DR-G2 series is tailored to perform high-speed, reliable scanning with its advance feeding and transport capabilities. Delivering a remarkable 140 pages per minute scan and up to 70,000 scans a day, the DR-G2 series boosts outstanding productivity to expand your business potential.
Network Capability
The DR-G2 series supports Network scanning via LAN connection. Via the network, users can share a single scanner to perform scanning tasks efficiently.
*This feature is only available for DR-G2110 and DR-G2140.
Bundled Software | CaptureOnTouch, VRS |
Dimensions (W x D x H) | Feed Trays closed: 480 × 569 × 315 mm |
Ejection pockets | - |
Interface |
USB3.1 Gen1, 10Base-T/100Base-T/100Base-Tx/1000Base-T (DR-G2140, DR-G2110) |
MICR | - |
On-Board Jogger | - |
Operating Environment |
Temperature: 10 - 35°C Humidity: 20 - 80% RH |
Supported Operating System | Windows |
Options / Consumables | Flatbed Scanner Unit 102, Imprinter Unit, Carrier sheet, Exchange roller kit, Separation Pads,Ink Cartridge, Cleaning Sheet |
Power | AC 220 – 240 V |
Power Consumption |
Scanning: 66.5 W, Sleep mode: 3.5 W |
Weight | Approx. 25.0 kg |
Feeding Method | Automatic or manual sheet feeding |
Document thickness - Plain Paper |
Continuous Feeding Weight: 20 – 209 g/m2 Thickness: 0.04 – 0.25 mm Non-Separation Mode Weight: 20 – 255 g/m2 Thickness: 0.04 – 0.30 mm |
Document thickness - Postcard | - |
Document thickness - Business Card | - |
Document thickness - Card (ISO/IEC compliant) | - |
Document thickness - Passport | - |
Feeding Capacity |
500 sheets (DR-G2140, DR-G2110), 300 sheets (DR-G2090) |
Document size - Plain Paper (A4/LTR) |
A3/ LGL Width: 50 – 305 mm Length: 70 – 432 mm |
Document size - Long Document Mode |
DR-G2140, DR-G2110: Up to 5,588 mm DR-G2090: Up to 3,000 mm |
Document size - Postcard |
Width: 89-108 mm Length: 127 – 152 mm |
Document size - Business card |
Width: 53 – 55 mm, Length: 85 – 91 mm (Vertical feeding only) |
Document size - Card (ISO/IEC compliant) | - |
Document size - Passport | - |
Document size - Plastic card | - |
Document size - Magnetic card | - |
Light source | LED (Red, Green, and Blue) |
Maximum Resolution | 600 dpi |
Scan Resolution | 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi |
Scanner Element | 3-line CIS |
Scanner Type | Desktop sheetfed scanner |
Scanning Modes | Black and White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, Active Threshold,256-level Grayscale, 24-bit Color, Auto Color Detection |
Scanning Side | Simplex / Duplex |
Scanning speed |
DR-G2090, A4 / LTR, Portrait, 200dpi: Black and White: 75ppm (simplex) / 150ipm (duplex) Grayscale: 75ppm (simplex) / 150ipm (duplex) Colour: 75ppm (simplex) / 150ipm (duplex) DR-G2110, A4 / LTR, Portrait, 200dpi: Black and White: 90ppm (simplex) / 180ipm (duplex) Grayscale: 90ppm (simplex) / 180ipm (duplex) Colour: 90ppm (simplex) / 180ipm (duplex) DR-G2140, A4 / LTR, Portrait, 200dpi: Black and White: 110ppm (simplex) / 220ipm (duplex) Grayscale: 110ppm (simplex) / 220ipm (duplex) Colour: 110ppm (simplex) / 220ipm (duplex) DR-G2090, A4, Landscape, 200dpi: Black and White: 90ppm (simplex) / 180ipm (duplex) Grayscale: 90ppm (simplex) / 180ipm (duplex) Colour: 90ppm (simplex) / 180ipm (duplex) DR-G2110, A4, Landscape, 200dpi: Black and White: 110ppm (simplex) / 220ipm (duplex) Grayscale: 110ppm (simplex) / 220ipm (duplex) Colour: 110ppm (simplex) / 220ipm (duplex) DR-G2140, A4, Landscape, 200dpi: Black and White: 140ppm (simplex) / 280ipm (duplex) Grayscale: 140ppm (simplex) / 280ipm (duplex) Colour: 140ppm (simplex) / 280ipm (duplex) *Actual scanning speed may vary depending on your system configuration and PC |
Suggested Daily Volume (Scans) | 30,000 (DR-G2090); 50,000 (DR-G2110); 70,000 (DR-G2140) |
