Maximize desk space with the slim & smart compact scanner

Built compact without comprising speed or quality with a minimalist design achieved through the elimination of obstructive tray extensions.

Feeder capacity: 30 sheets
Speed: up to 25ppm / 50ipm
Up to 600 dpi in scanning resolution

Compact and small in footprint

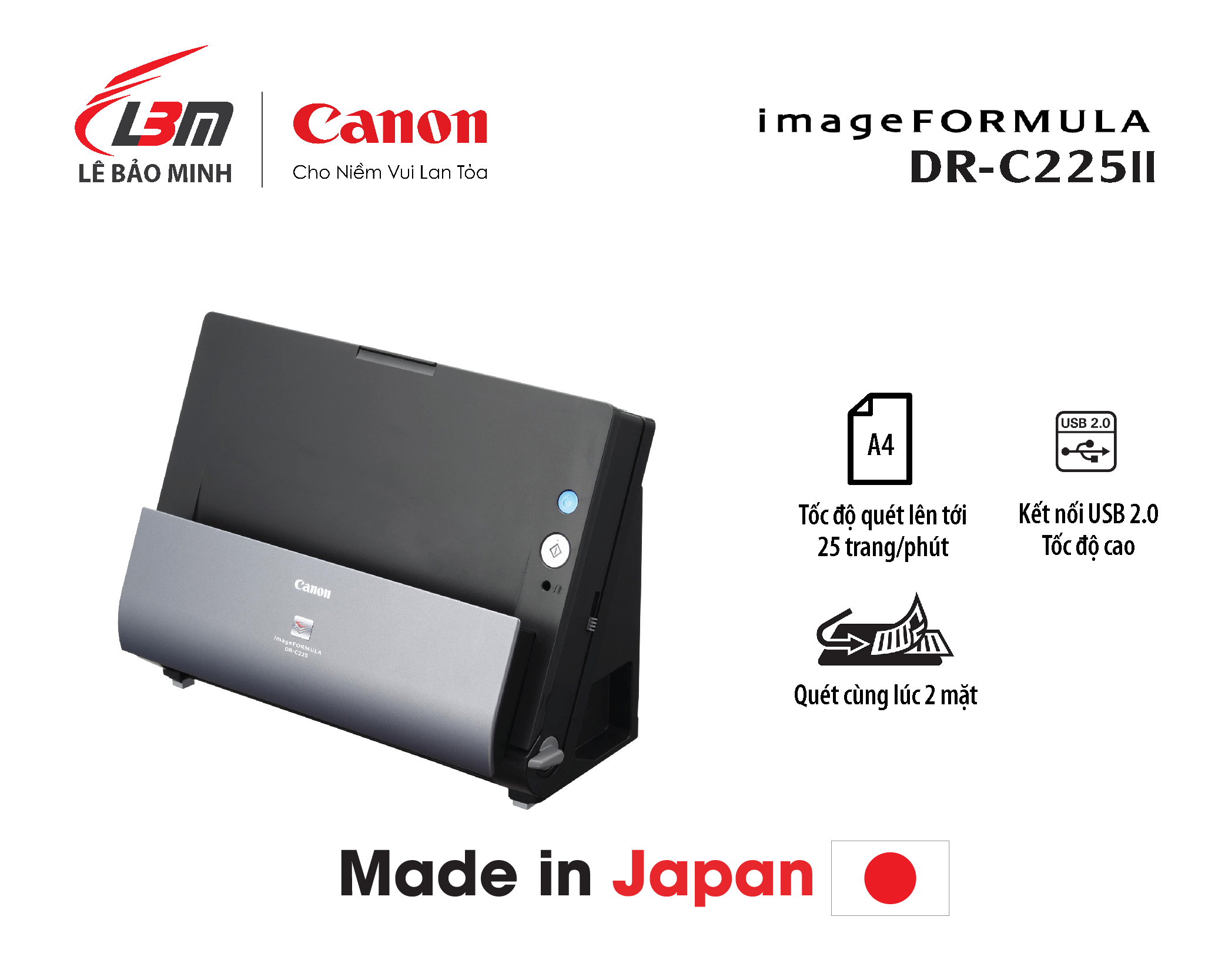

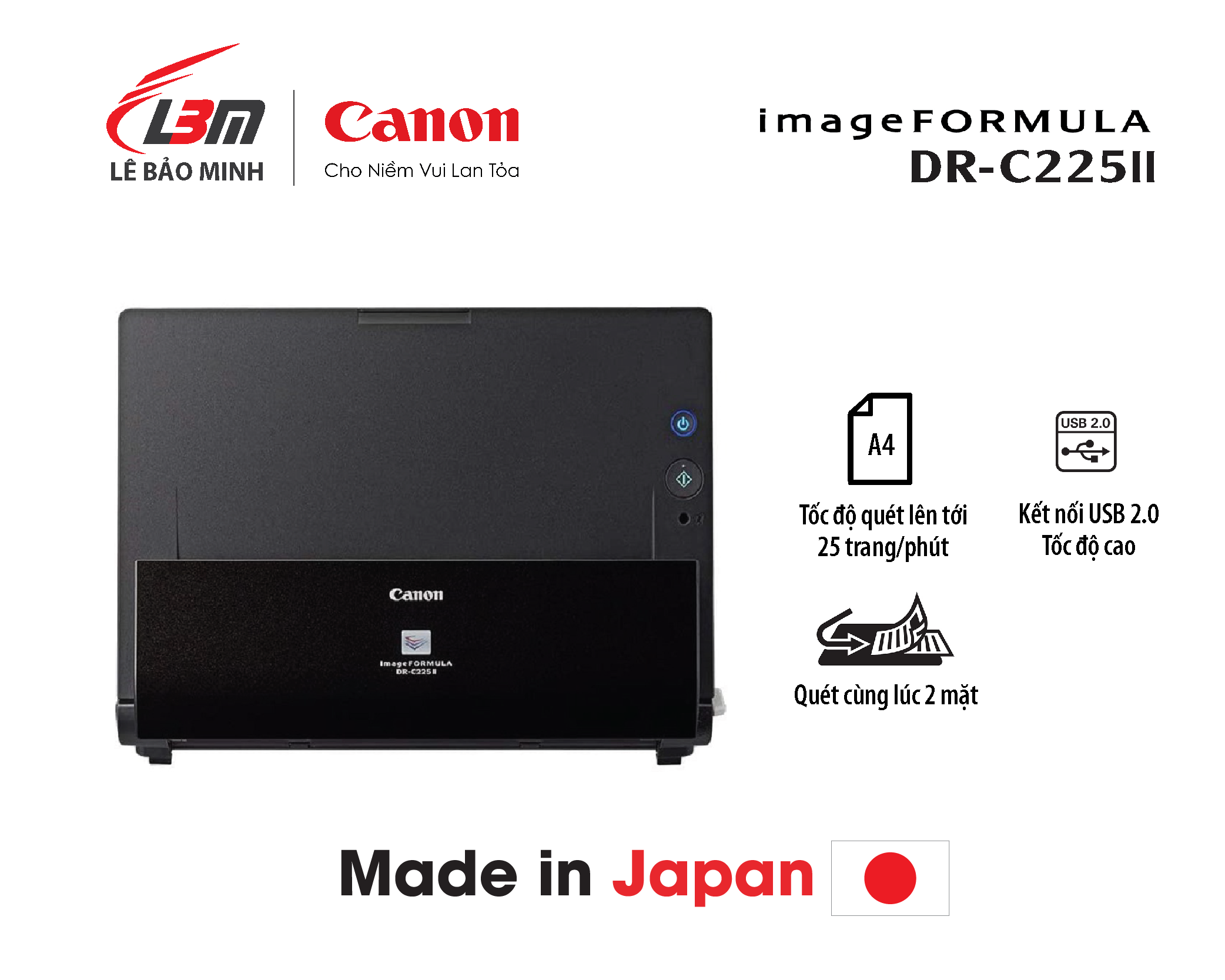

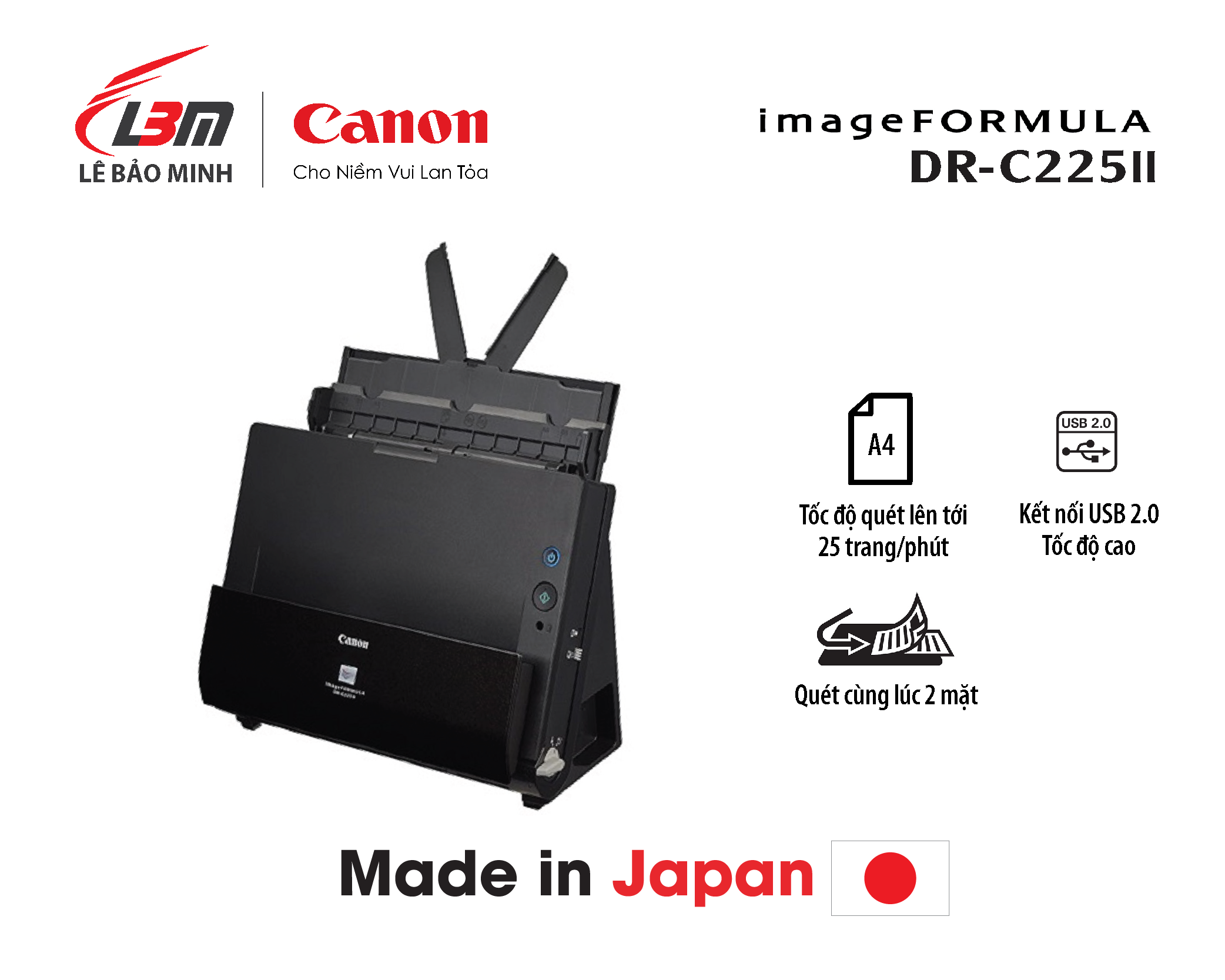

Combining unique design and innovative features, the DR-C225 II offers affordable scanning without compromising on performance. Its vertical U- turn Path transport system means the DR-C225 II has one of the smallest footprints in its class. Various types of documents can be easily scanned with two ejection path.
U-turn path scan and eject standard-paper documents without using additional space.
Straight ejection path for thick document sheets, driver’s licenses and ID cards can be easily switched by flipping the lever

Fast and reliable

The DR-C225 II is capable of high-speed 1-pass duplex scanning at 25 sheets per minute. The built-in ultrasonic sensor accurately detects when more than one sheet is fed simultaneously and can prevent important information from being left out.

Easier scanning operation

A Full Auto Mode is available with the colour mode, page size, resolution and text orientation automatically determined based on the contents of the document. This mode applies the best settings and allows you to scan documents that contain pages of varying type under conditions.

Chi tiết

Bundled Software Windows: ISIS/TWAIN driver, CaptureOnTouch, Scanner Wireless Connection Setup Tool*1, Network Monitor*1
Mac: TWAIN driver, CaptureOnTouch, Scanner Wireless Connection Setup Tool*1, Network Monitor*1

*1 DR-C225W II only
Dimensions (W x D x H) Feed tray closed: 300 × 220 × 156 mm
Feed tray open: 300 x 336 x 235 mm
Ejection pockets -
Interface Hi-Speed USB 2.0
On-Board Jogger -
Operating Environment Temperature: 10°C to 32.5°C
Humidity: 20% to 80% RH
Supported Operating System Windows/ Mac
Options / Consumables Flatbed Scanner Unit 102 (The DR-C225WII is compatible only with a USB connection.)
Exchange Roller Kit
Power AC100 to 240V
Power Consumption DR-C225 II:
Scanning: 12.8 W,
Sleep mode: 1.8 W,
Power Turned OFF: 0.5 W

DR-C225W II:
Scanning: maximum 15.6 W,
Sleep mode: maximum 4.4 W,
Power Turned OFF: maximum 0.5 W
Weight DR-C225 II: Approx. 2.7 kg
DR-C225W II: Approx. 2.8 kg
Feeding Method Automatic
Document thickness - Plain Paper U-turn path
Weight: 52 – 128 g/m2
Thickness: 0.06 – 0.15 mm

Straight path
Weight: 40 – 209 g/m2
Thickness: 0.05 – 0.25 mm
Document thickness - Postcard Weight: 128 – 300 g/m2
Thickness: 0.15 – 0.4 mm
*PostCard can be scanned with straight path only.
Document thickness - Business Card Weight: 300 g/m2 or less
Thickness: 0.35 mm
Document thickness - Card (ISO/IEC compliant) 0.76 mm or less
Document thickness - Passport -
Feeding Capacity 30 sheets
Document size - Plain Paper (A4/LTR) Width: 51 – 216 mm,
Length: 54 – 356 mm
Document size - Long Document Mode Up to 3,000 mm
Document size - Postcard Width: 89 – 108 mm,
Length: 127 – 152 mm
Document size - Business card Width: 51 – 54 mm or larger (Vertical feeding only)
Document size - Card (ISO/IEC compliant) 54 x 86 mm
(Straight path and horizontal feeding only. Embossed cards can be scanned)
Document size - Passport -
Document size - Plastic card -
Document size - Magnetic card -
Light source LED (red, green and blue)
Maximum Resolution 600 dpi
Scan Resolution 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Scanner Element CIS
Scanner Type Desktop sheet-fed scanner
Scanning Modes Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II (for Windows only), 256-level gray, 24-bit colour
Scanning Side Simplex / Duplex
Scanning speed A4 / LTR, Portrait, 200dpi:
Black and White: 25ppm (simplex) / 50ipm (duplex)
Grayscale: 25ppm (simplex) / 50ipm (duplex)
Colour: 25ppm (simplex) / 50ipm (duplex)
Suggested Daily Volume (Scans) 1500
