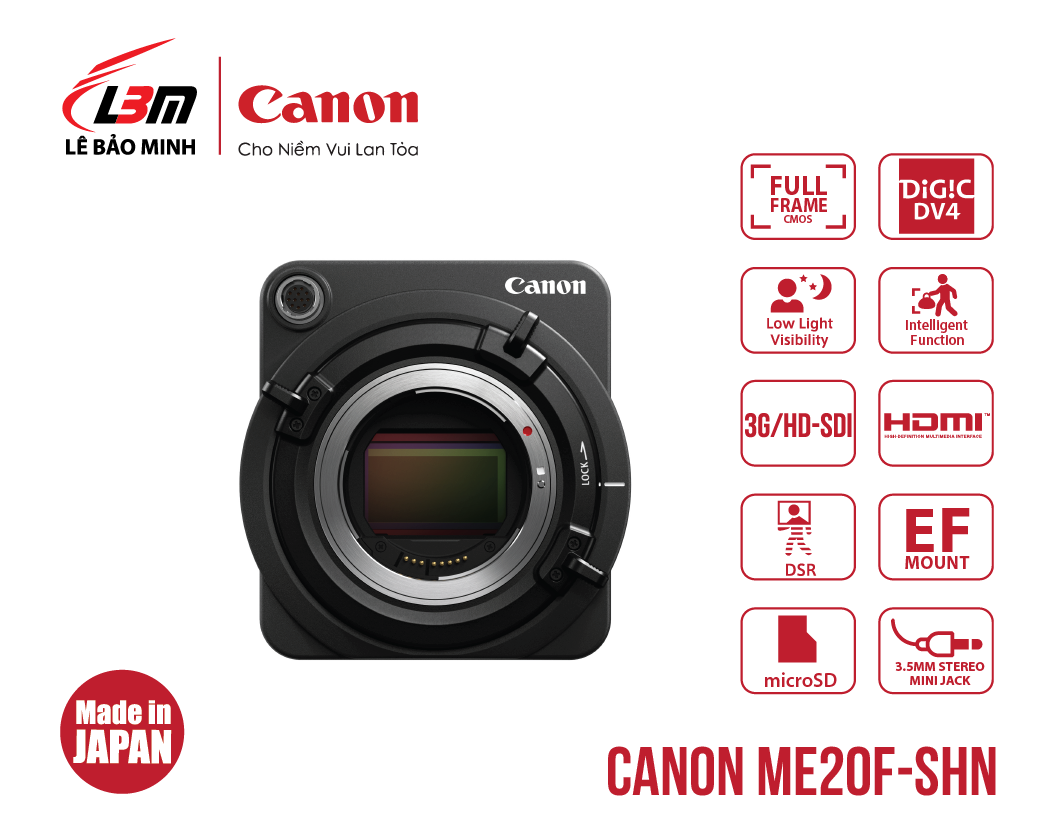

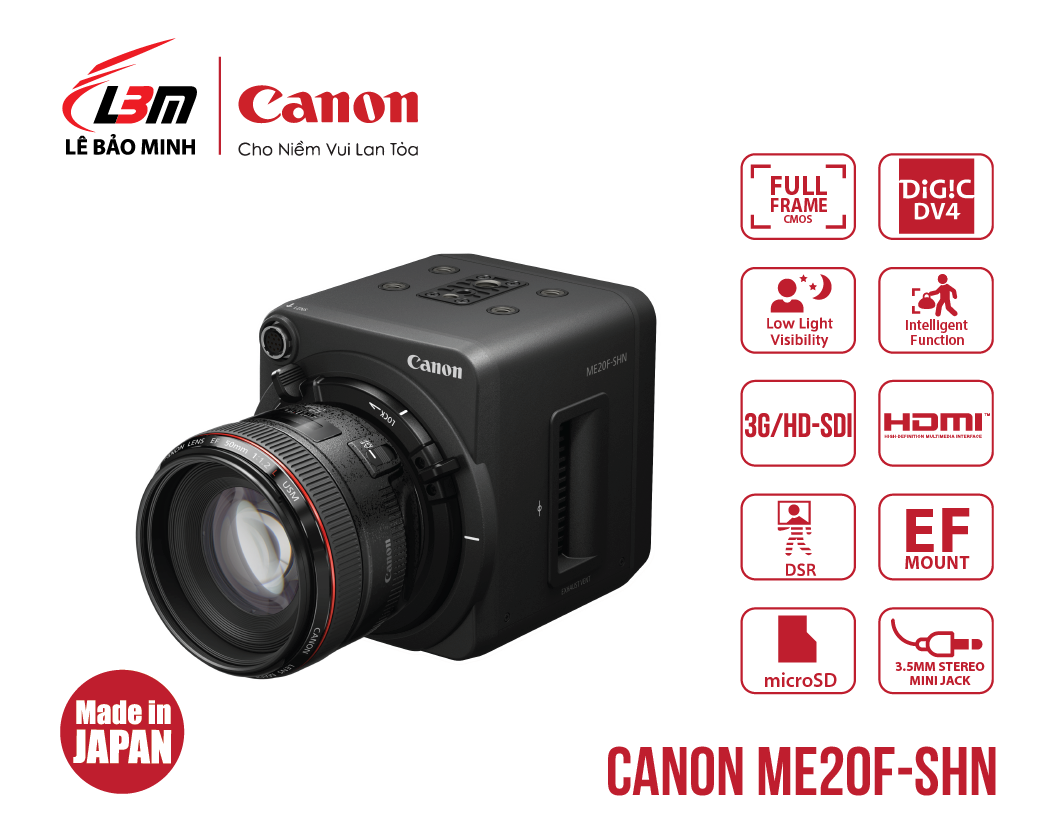

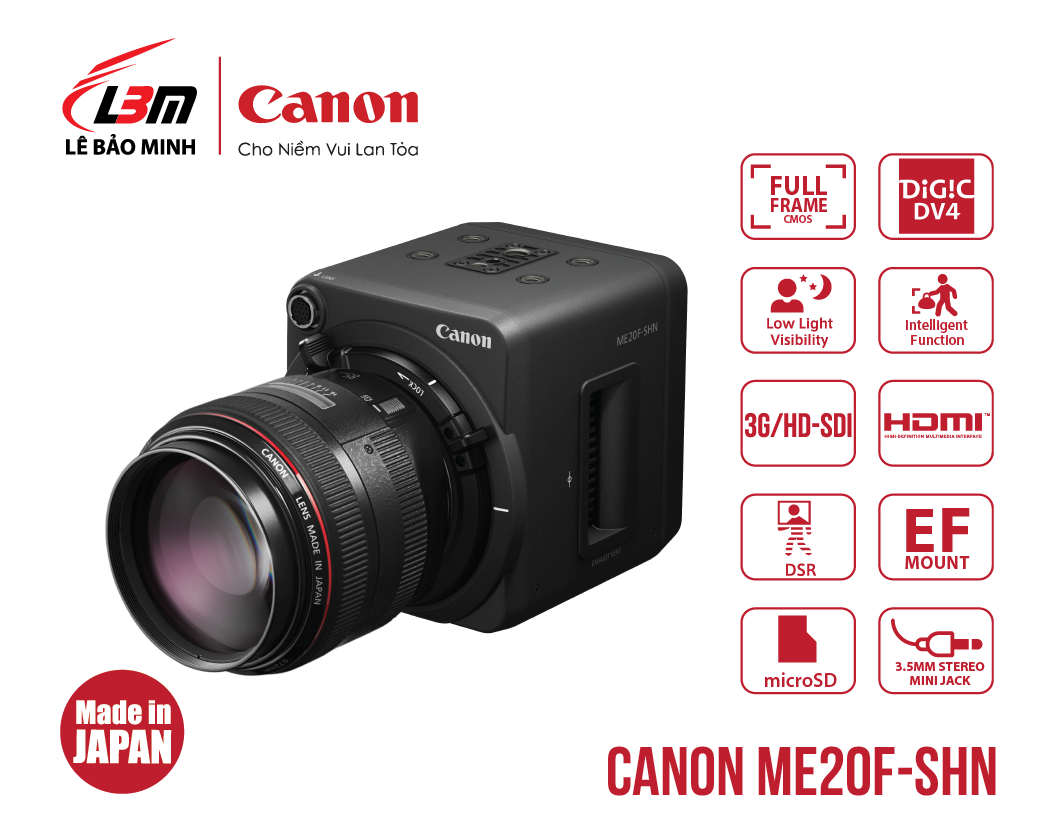

A professional Full HD network camera for low light shooting
With a maximum ISO in excess of 4 million from a Full Frame 2.26MP CMOS sensor, the ME20F-SHN offers Full HD colour video in almost total darkness plus networking and remote control capability for critical surveillance applications.
Canon ME20F-SHN Highlights/Features
RGB Primary Colour Filter (Bayer array)
Approx. 2.26MP (2000 x 1128)
0.0005 lux or less (Gain 75dB, f/1.2, shutter speed 1/30, 50 IRE, custom picture [Off])
Depending on selected lens
Canon EF mount with Cinema Lock
Yes, 2 density (1/8, 3 stops or 1/64, 6 stops) Manually selected electronic control
Manual Focus, One Shot AF
Manual; 1/2 stop increments, 1/3 stop increments, fine adjustment. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation)
Depending on selected lens
Depending on selected lens
No
Yes : X2/X3/X4 tele converter
DIGIC DV 4
YbCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI
10 bit (8 bit effective)
DIGIC NET II
Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Variable bit rate / Constant bit rate
Target Bit Rate: 64/128/256/384/512/768/1024/1536/2048/3072/4096/6144/8192/10240/12288/14336/16384 kbps
Number of Specified Areas: Max. 8 areas
Data Size Reduction Level: 3 levels
Camera Control: Administrator, Authorized user, Guest user (level of control varies depending on user)
Access Control: User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Encrypted Communications: SSL/TLS, IPsec
IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)
Profile-S, Profile-G
G.711 μ-law (64 kbps)
Full-duplex (two-way)/half-duplex
RTP, Sound Transfer Protocol by Canon
Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)
Digital PTZ and Camera setting
Number of registration: Max. 20 positions (+Home Position)
Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection
Number of registration: Max. 15
Non-detection Area Settings: Available
External Device Input, Intelligent Function (Video), Timer, Infrared Switching
SMTP (e-mail)
Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72
Available
German/English/Spanish/French/Italian/Russian/Turkish/Japanese
Available
JPEG, MPEG4-AVC/H.264
10 levels
JPEG: 1920 x 1080: 0.1 – 30 fps
MPEG4-AVC/H.264: 1920 x 1080: 1/2/3/5/6/10/15/30 fps
– Only the following combination is available for video output via a network. System frequency: 59.94 Hz, Frame rate: 29.97P, Resolution: 1920 x 1080
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer's specs, the number of clients accessing at the same time, network loads, video quality setting, type or movement of the subject or other reasons.
Maximum frame rate when used in the following combinations:
When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps
When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps
0.5/1/1.5/2/3/4/5 sec.
3G/HD-SDI Output: 1920x1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
1280x720: 59.94P/50P/29.97P/25P/23.98P
HDMI Output:1920x 1080: 59.94P/59.94i/50P/50i/29.97PsF/25PsF
1280x720: 59.94P/50P
640x480: 59.94P
768x576: 50P
* A 1920 x 1080 black video is output on the network connection when selecting a frame rate other than 29.97P
Shutter Priority, Aperture Priority, Auto Gain Control (AGC)
3.5mm stereo mini jack, plug-in power mic supported
No
Yes, Ethernet x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) , 3G/HD-SDI (BNC) , HDMI.
Yes (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Yes
No
Yes, OSD compatible.
No
No
No
No
Yes. 2-Pin connection. Input voltage 11 - 17V
Yes, 12-pin connector
Yes, 2.5mm mini jack (Canon Unique Protocol)
Input x 1, Output x 1
RS-422/RS-485 x 1
1x microSD Memory Card (for recording)
– microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card Compatible.
1x microSD Memory Card (for firmware update only, no recording capability)
Yes, SMPTE, EBU and ARIB depending on system frequency
No
No
Yes, 4 buttons.
Assignable items: One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Color Bars / Aspect Marker / Set WB / Tele-converter / Infrared / External Rec / Custom Picture / Camera Mode A/M.
Assignable button 4 is located on the optional RC-V100 Remote Controller.
No
Backlight, Standard, Spotlight
Yes: ±2.0, ±1.75, ±1.50, ±1.25, ±1.0,±0.75, ±0.50, ±0.25 or ±0
No
Yes , OFF (75dB) or value from 36dB to 75 dB (in 3 dB increments)
Maximum in excess of ISO 4,000,000 equivalent at -75dB
Canon Log/Wide DR mode: 800%/12 stops at +9.0dB (Approx. ISO2300)
0dB to -75dB in 3dB intervals.
Manual 1/4 stop increments, Auto (combined function combining Iris, Gain, Shutter and ND filter operation)
1/3 sec - 1/2000 sec depending on system frequency and frame rate
No
Yes
Yes
No
Yes: IR Cut-out filter, electrically operated, manual only
No
Yes
Daylight/Tungsten/Color Temperature
Yes, via Custom Function Menu
Set A, Set B (Default 5,500K) Kelvin (2,000K - 15,000K)
Ten Custom Picture options: Canon Log, Wide DR, EOS Standard, Blue Scr, Green Scr, Crisp Img, CP1 - CP4. User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance
No
No
Linear PCM 48 kHz 16-bit digital conversion, 2 channels
Power connector (L-shaped)
Power connector (straight)
RC-V100 remote Control Unit, Tripod Adapter RB-1
PoE+ power supply via Ethernet connector (IEEE802.3at Type2 compliant)
DC 11 – 17 V
– Some lens operates only on DC power supply
PoE+: Max. approx. 18.0 W*
DC: Max. approx. 16.0 W
* Class 4 power sourcing equipment (requests 30.0 W)
Approx. 102mm x 116mm x 113mm (W xH x D) 4.0 x 4.6 x 4.4 inches
Approx. 1.3 kg (2.87 lb)
0 to 40°C
Temperature
-30°C – +60°C
Humidity
5% – 90% (without condensation)
Setting page, Viewer
German/English/Spanish/French/Italian/Russian/Turkish/Japanese
CPU (Recommended): Intel Core i7-2600 or higher
Graphics Board (Recommended): Not specified
Memory (Recommended): 2 GB or higher
Viewer Display (Recommended): 1920 x 1080 or higher
Windows 7 Ultimate/Windows 7 Professional/Windows 7 Enterprise/Windows 7 Home Premium SP1 32/64-bit; Internet Explorer 11 32/64-bit, Chrome 61*2
Windows 8.1/Windows 8.1 Pro/Windows 8.1 Enterprise 32/64-bit*1; Internet Explorer 11 32/64-bit, Chrome 61*2
Windows 10 Pro/Windows 10 Enterprise/Windows 10 Education/Windows 10 Home 32/64-bit; Internet Explorer 11 32/64-bit, Microsoft Edge*2, Chrome 61*2
Windows Server 2008 Standard SP2 32/64-bit; Internet Explorer 9 32-bit
Windows Server 2008 R2 Standard SP1 64-bit; Internet Explorer 11 32/64-bit, Chrome 61*2
Windows Server 2012 Standard 64-bit*1; Internet Explorer 10 32/64-bit, Chrome 61*2
Windows Server 2012 R2 Standard 64-bit*1; Internet Explorer 11 32/64-bit, Chrome 61*2
Windows Server 2016 Standard 64-bit; Internet Explorer 11 64-bit, Chrome 61*2
*1 Cannot be started from the Windows start screen
*2 Does not support playback of Video (H.264) or audio transmission/reception
– Must be configured to allow use of JavaScript, IFRAME (html tag), and web storage
– For Camera Viewer only, cookies must be enabled
German/English/Spanish/French/Italian/Russian/Turkish/Japanese
