Tính năng

Gold-Mount pivoting battery plate compatible with CANON C70 top plate (C70TP) only
Push-button system lets you tilt the battery plate up and down
Easy access to the rear connector and allows Battery hot swap feature
(Please refer to the camera’s operating manual for proper usage)
Supports Gold-Mount Battery
(1) D-Tap Ports & Protective Digital Fuse
(1) D-Tap Power Cable for CANON C70 provide 14.4 power output
Multiple holes on top and side of the cheeseplate
Made of CNC Aluminum

Chi tiết

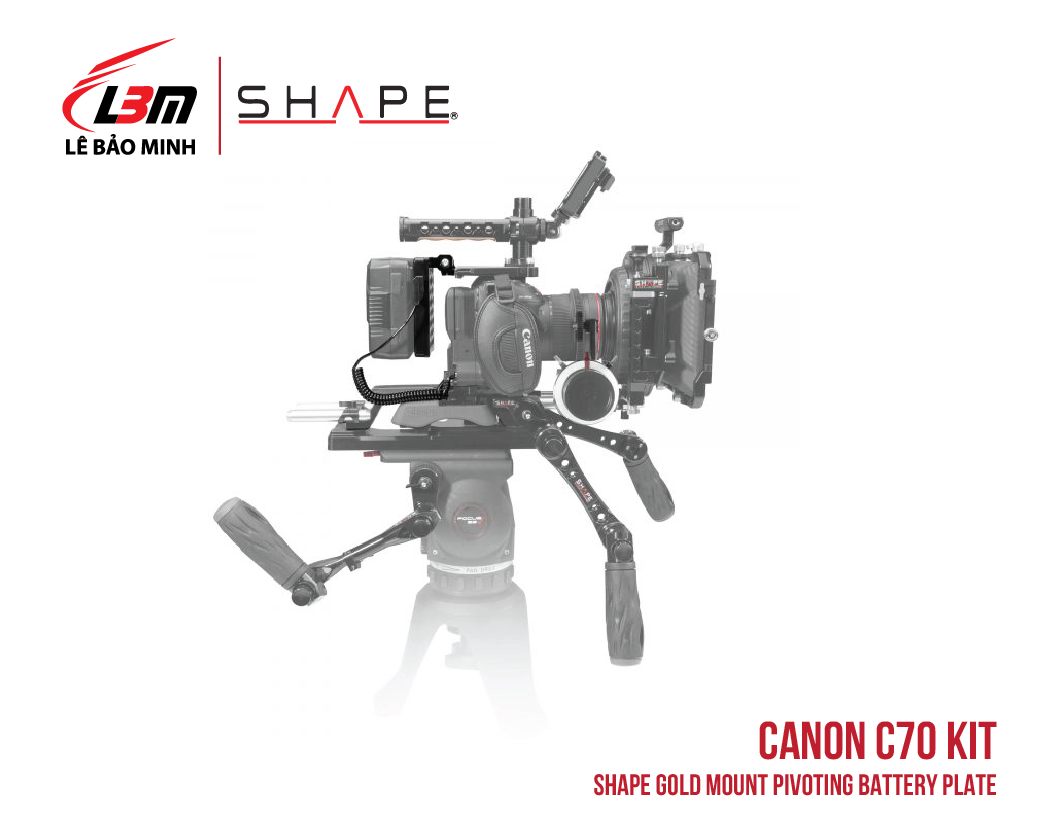

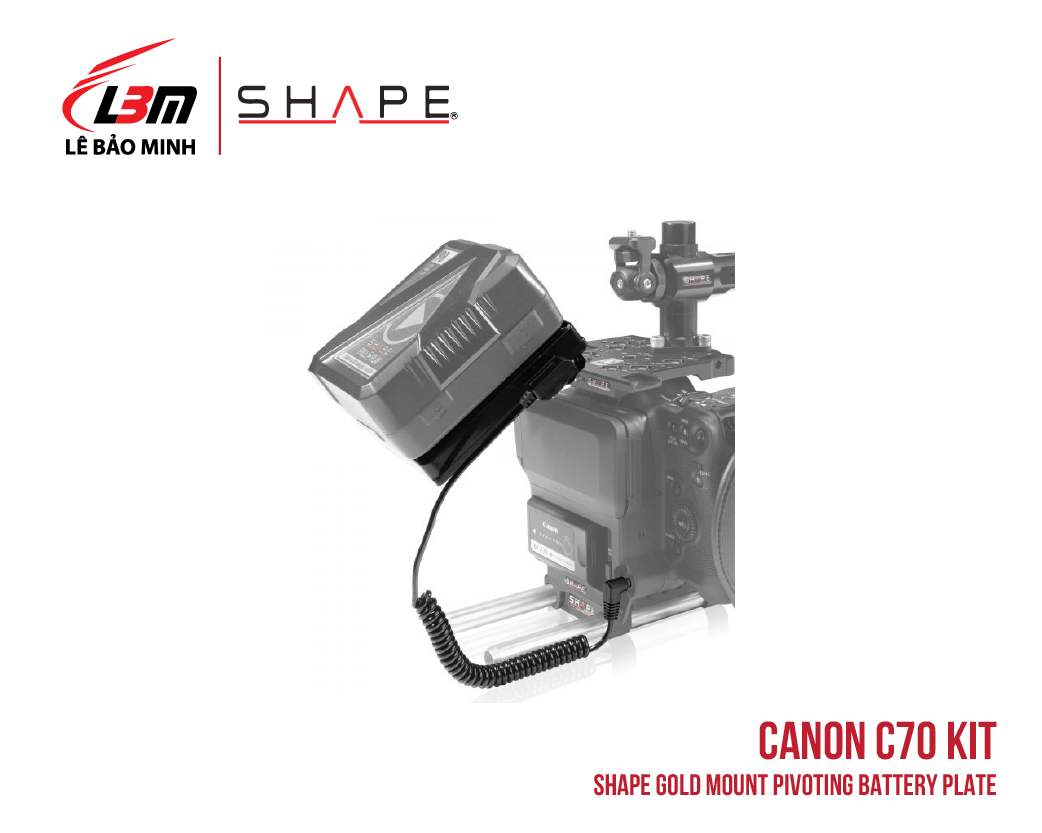

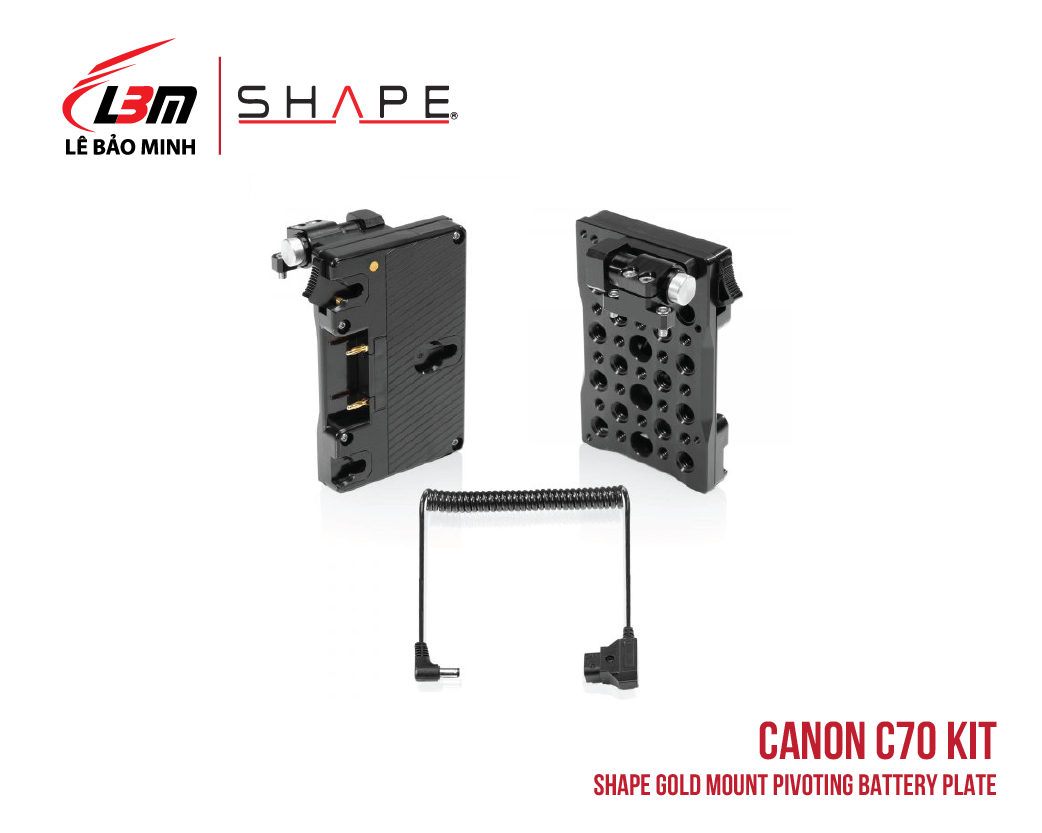

The SHAPE Gold-Mount pivoting battery plate for Canon C70 attaches to the rear of the top plate (C70TP) and supports a Gold-mount battery while leaving access to the camera’s standard battery compartment. Our Gold-mount battery plate provides the right battery voltage and amperage to use with your CANON C70 camera. By pivoting the battery plate, you have access to the battery of the camera and also allows hot swap features. A swivel system let you pivot the battery plate up and down. It features 1 D-Tap port for powering accessories. It also uses a digital fuse that monitors the D-Tap ports and disables them if they exceed the set current for accessories while leaving the camera running.

It connects to the camera using the SHAPE 14.4 output D-Tap power cable for Canon C70. The cable regulates the voltage from a D-Tap source to the proper 14.4 V required to power your Canon C70 camera. This allows you to power your camera using any V-mount battery with a D-Tap plug. The cable has a total end-to-end length of 15″ (38 cm). A universal cheeseplate with 1/4″-20 and 3/8”-16 threaded holes. The cheeseplate can tilt up and down with a patented 15 mm Push-button system to provide an easy access to the rear screen.
