Form fitting top, side and bottom plates
L-shaped top handle with Push-Button Technology
Top handle made of CNC aluminum and wooden Canadian maple
Top handle features a tilting bracket to mount a monitor, a video light, or a microphone (up to 4.4 lb)
Several anti rotating threaded holes (3/8-16, ¼-20)
Top plate compatible with the factory Canon C70 handle
Made of CNC lightweight aluminum
Mounting holes for securing the camera to a tripod plate
Rubber pads at the top of the base to protect your Canon C70
Quick handle Arri rosette with black Push-button system
Patented Push-button technology
Push, adjust, release, and then its lock
Robust baseplate made of CNC Machined Aluminum
Match your camera’s optical center
Bracket system with magnets let you swivel the baseplate
Come with 2 pairs of 15 mm rods (8”, 4”)
Designed with 2 standard Arri rosettes for handles mount
Comfortable shoulder pad made of slip-free material
Sophisticated tool box to store your extra screws and Allen key
Quick release adapter plate for VCT tripod plate mount
Description

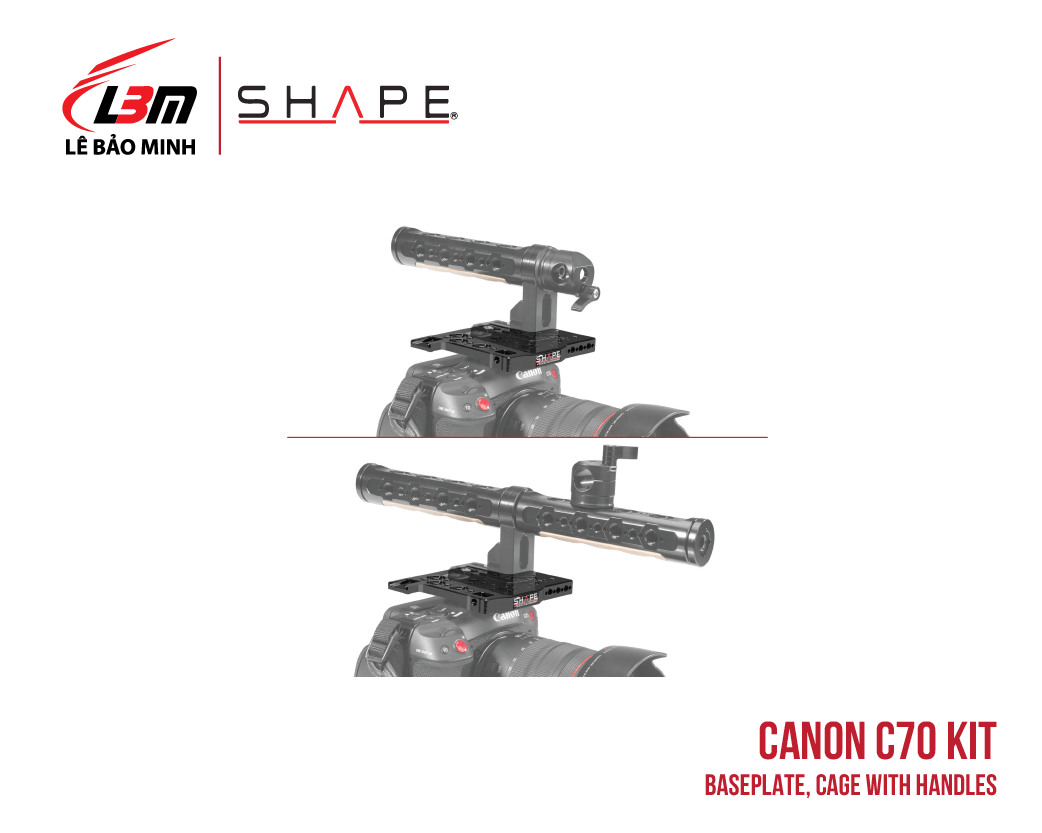

The L-shaped handle features a solid connection to your top plate using mounting screws. It also features the SHAPE Push-Button Technology, enabling you to balance the weight and rotate the handle in the position you need for a 360-degree axis. The handle is constructed from anodized aluminum and it is lined with a smooth, wooden finger grip made from Canadian maple. It features numerous 3/8″-16 ARRI-style anti-twist accessory threads. The front section of the handle features a cold shoe designed to receive a spring-loaded cold shoe foot. This spring-loaded cold shoe foot is designed with a tilting mount bracket with 1/4″-20 threaded screw to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb. Moreover, each end is secured with a knurled locking knob. Once the accessory is mounted, you can tilt it forward or backward and place it at the desired angle. The position is lockable with the included Allen key.
Canon C70 camera cage (C70CAGE)

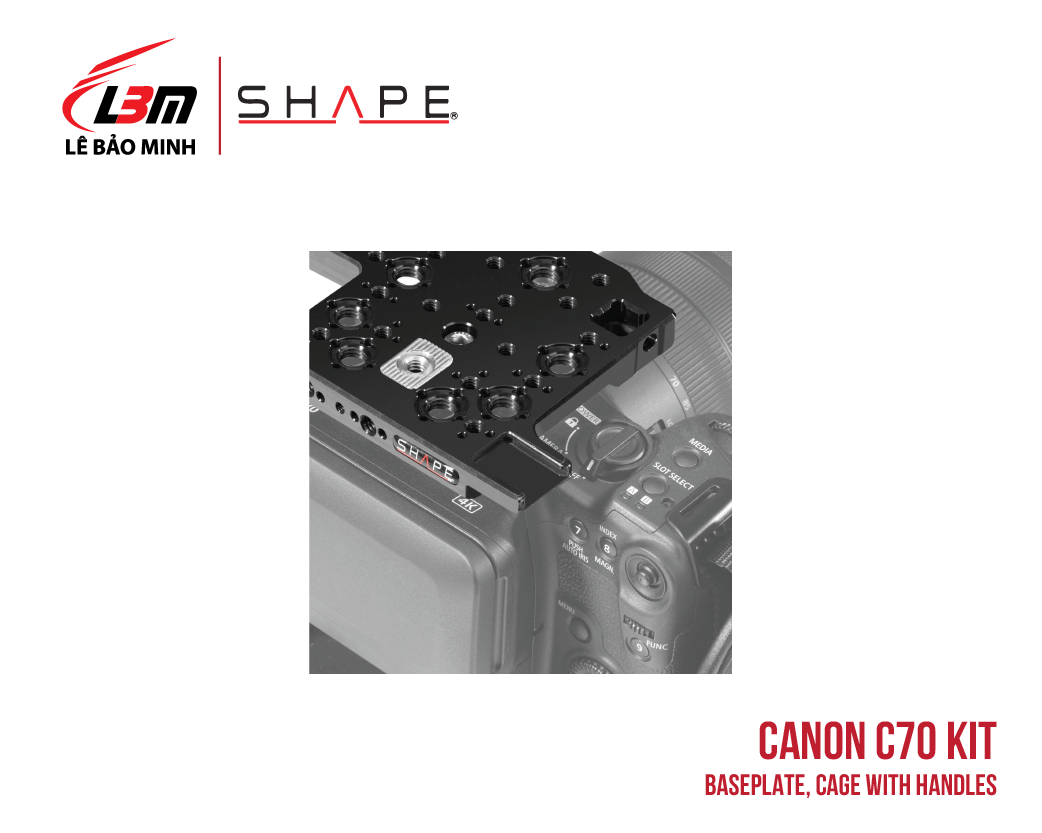

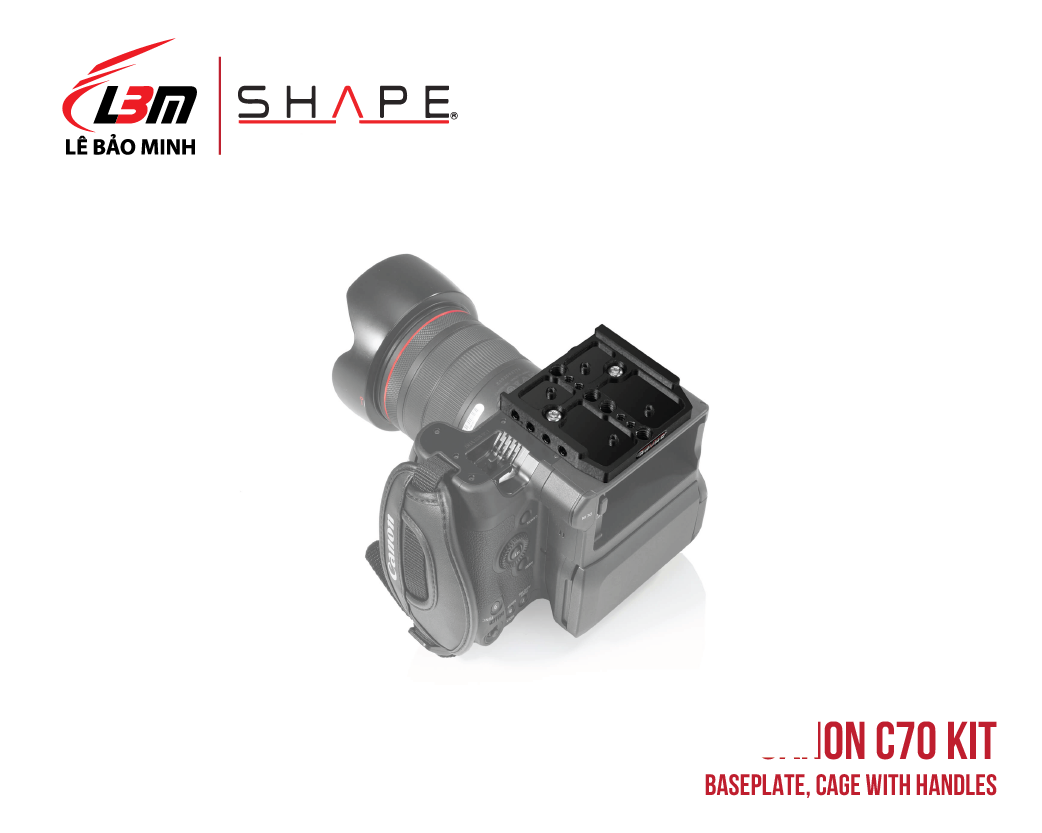

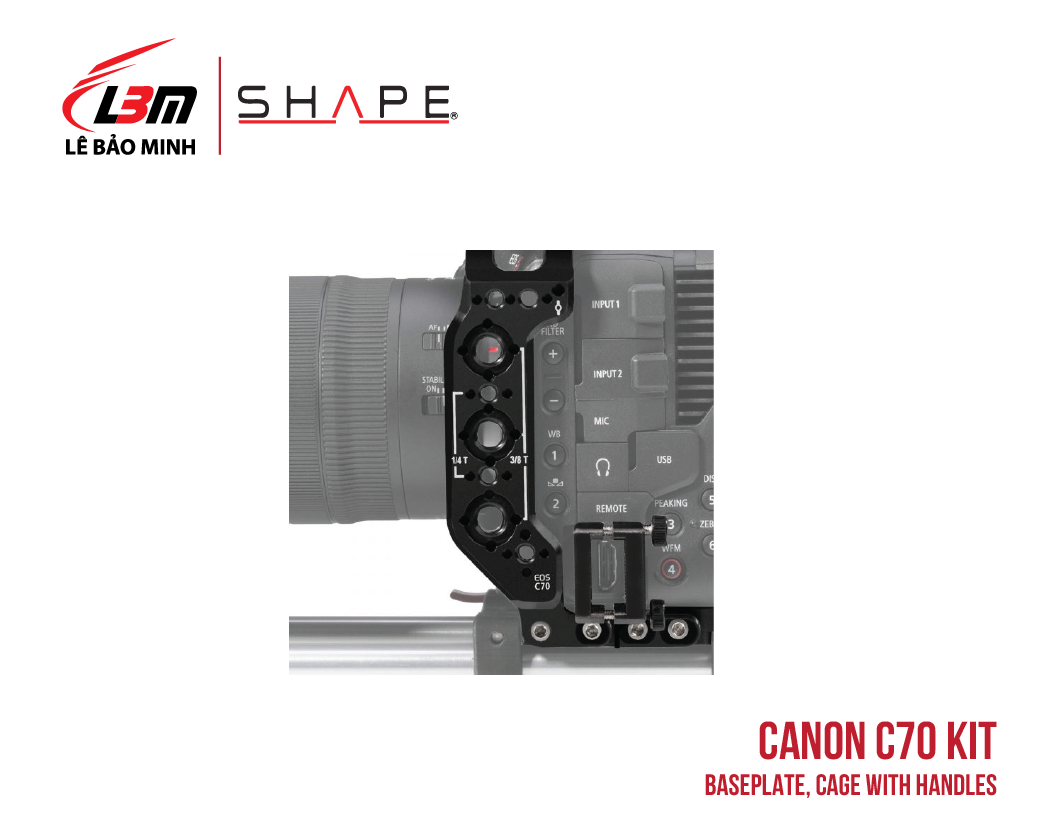

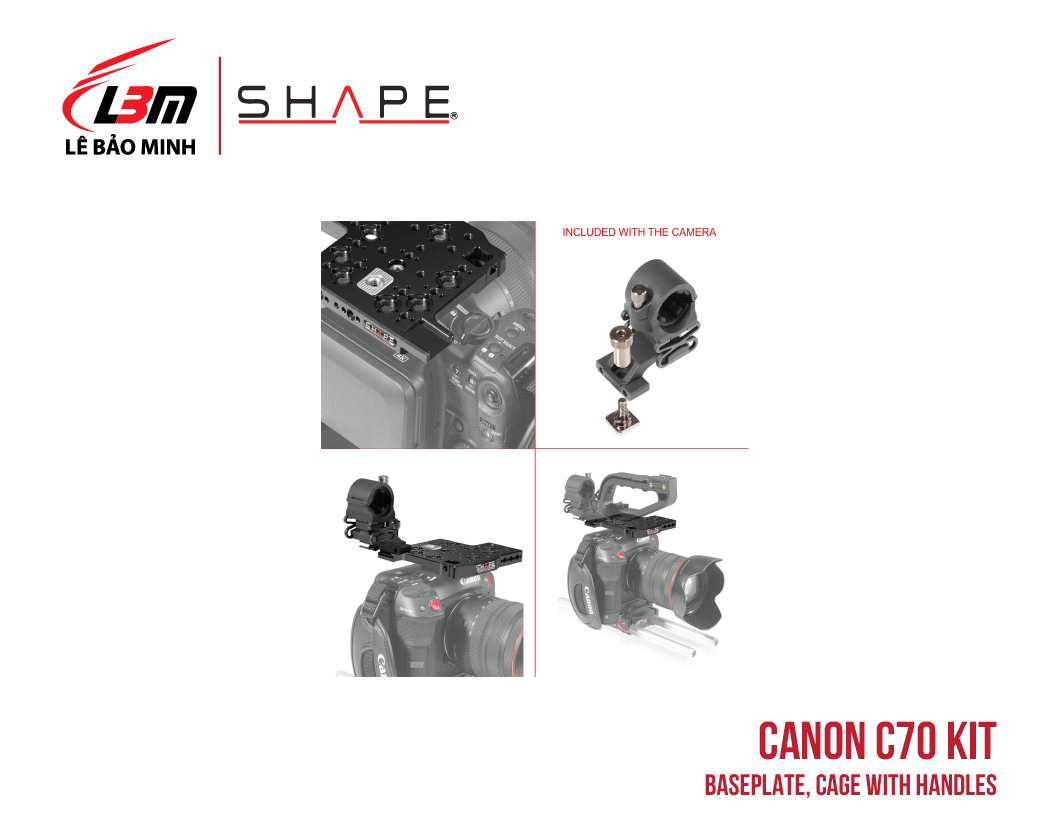

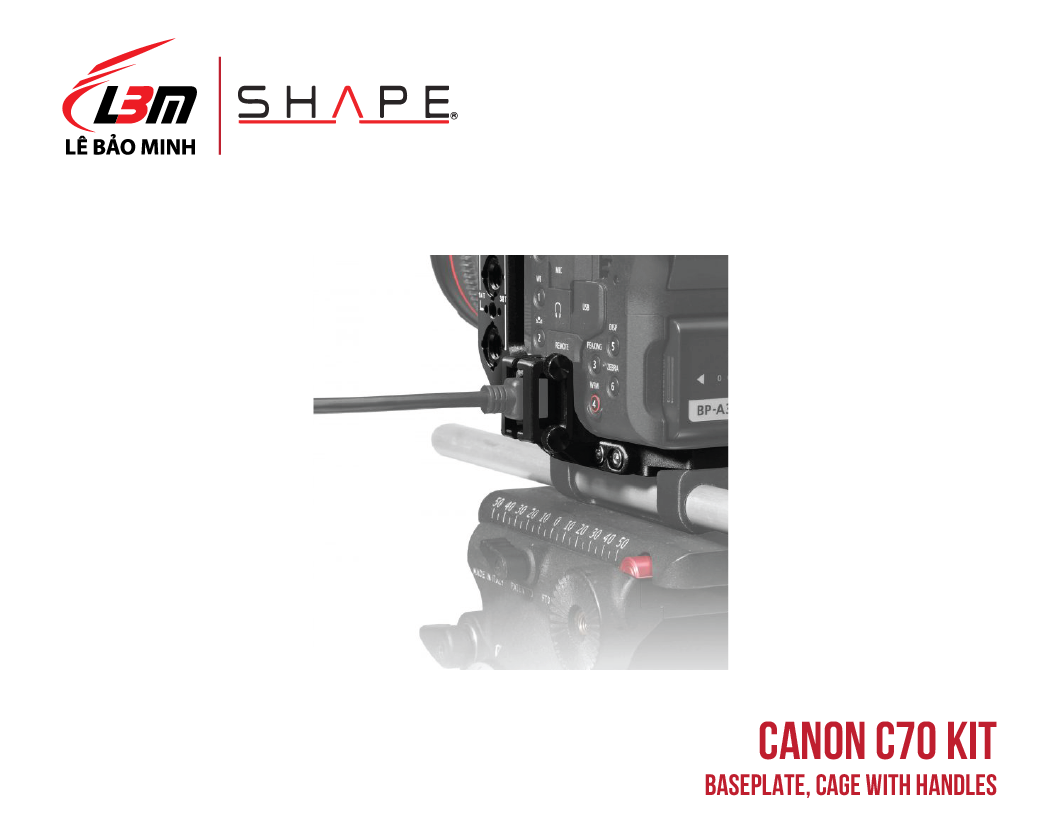

Add accessories and handheld functionality to your Canon C70 camera with this kit made of CNC aluminum. It includes a form fitting side plate, a top plate and the adaptor plate connecting together with the side post to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with ARRI standard anti rotating holes. The top plate is also designed to fit the factory Canon C70 top handle. An offset Cold Shoe fits perfectly the native microphones bracket of the camera. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included. The bottom of the plate features several 1/4″-20 and 3/8″-16 holes for mounting and balancing your camera on equipment like a tripod.Compact REVOLT shoulder baseplate (BP20)
The compact REVOLT shoulder baseplate (BP20) is a lighter, fixed-plate version of the REVOLT VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.Compact quick handle Arri rosette black (HAND15)
One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.15 mm 4" rods (15TUBE4)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 4-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
15 mm 8" rods (15TUBE8)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 8-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
