Tính năng

Form fitting top, side, and bottom plates
L-shaped top handle with Push-Button Technology
Aluminum and Canadian maple top handle with a tilting bracket to mount a monitor, a video light, or a microphone (up to 4.4 lb)
Multiple left-hand (CCW) threaded holes (3/8-16, ¼-20)
Top plate compatible with the factory CANON C70 handle
CNC machined aluminum.
Mounting holes for securing to a tripod plate.
Rubber pads protect your CANON C70.
Quick handle Arri rosette with black Push-button system
Patented Push-button technology
Push, adjust, release to lock.
Aligns with camera’s optical center
Magnetic bracket system allows the baseplate to swivel
2 pairs of 15 mm rods (8”, 4”) included.
2 standard Arri rosettes for handles.
Comfortable shoulder pad made of slip-free material
Tool box stores your extra screws and hex key
Quick release adapter plate for VCT tripod plate mount

Chi tiết

ẨnHiện

Description

The L-shaped handle features a solid connection to your top plate using mounting screws. It also features the SHAPE Push-Button Technology, allowing quick balance adjustments, 360-degrees of rotation, and locking in any position. The handle is constructed from anodized aluminum and is lined with a wooden finger grip made from Canadian maple. It features numerous 3/8″-16 ARRI-style left-hand threaded accessory mount points. The front section of the handle features a cold shoe with a tilting mount bracket with 1/4″-20 threads to mount accessories like a monitor, a video light, or a microphone weighing up to 4.4 lb. Each end is secured with a knurled locking screw. Once the accessory is mounted, it can be tilted and locked at any angle with the included Allen key.

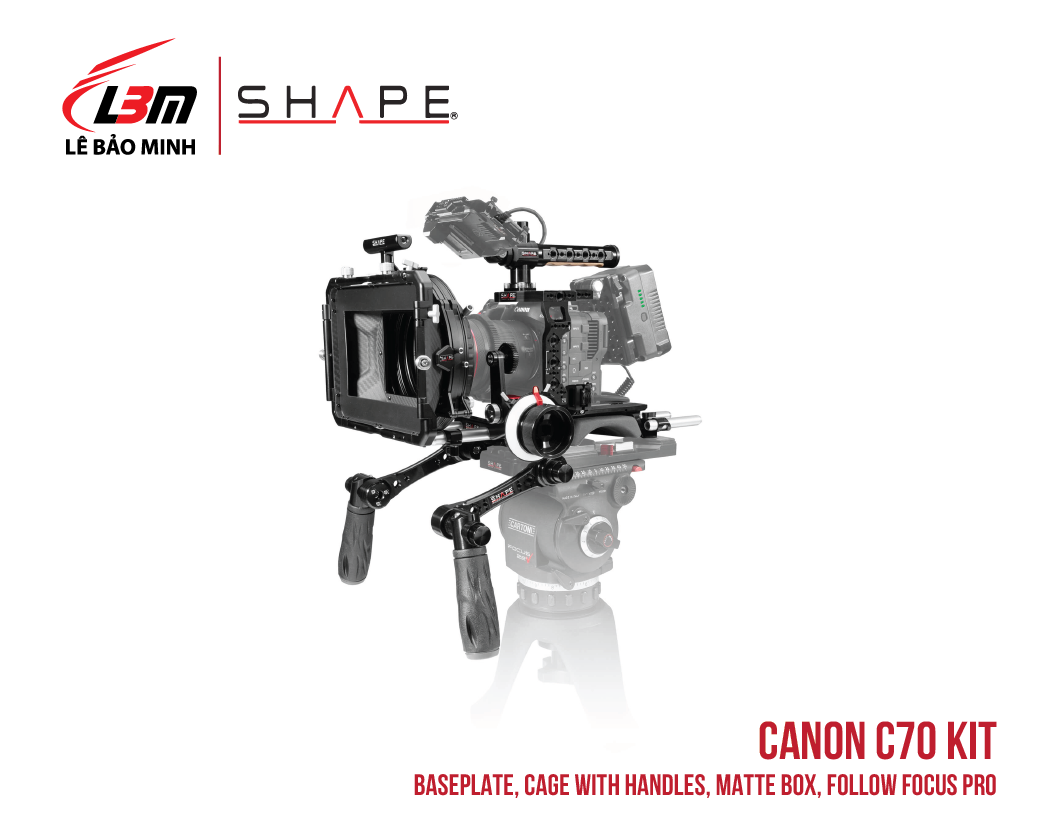

Canon C70 camera cage (C70CAGE)

01 C70cage Product PictureAdd accessories and handheld functionality to your Canon C70 camera with this kit made of CNC aluminum. It includes a form fitting side plate, a top plate and the adaptor plate connecting together with the side post to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with ARRI standard anti rotating holes. The top plate is also designed to fit the factory Canon C70 top handle. An offset Cold Shoe fits perfectly the native microphones bracket of the camera. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included. The bottom of the plate features several 1/4″-20 and 3/8″-16 holes for mounting and balancing your camera on equipment like a tripod.

Compact REVOLT shoulder baseplate (BP20)

01 Shape Bp20 Product PictureThe compact REVOLT shoulder baseplate (BP20) is a lighter, fixed-plate version of the REVOLT VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.

Compact quick handle Arri rosette black (HAND15)

01 Hand15 Shape Product Picture 1One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.

Follow Focus Pro (FFPRO)

Ffpro Shape 01 Product PictureManufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

SHAPE 4 x 5.6 carbon fiber swing-away matte box 15 mm LW and 19 mm Studio rod mount (MCF456)

01 Shape Mcf456 Product PictureAdd filters and light control to your camera rig with the 4 x 5.6 Carbon Fiber Swing-Away Matte Box Set from SHAPE. The lightweight matte box features a 2-stage, 4 x 5.65" 360° rotating filter system and can be mounted on any standard 15mm LWS or 19mm studio rod systems. The two rotating filter stages allow you to insert 4 x 5.65" filters, such as polarizing or graduated ND, and independently rotate them 360° to find just the right look. An 82mm filter ring is also included to utilize round filters. The large 143mm opening provides easy access and the 114mm ARRI-style rubber bellows opening is compatible with standard cine lens sizes. Four lens adapters are included to attach 80, 95, 104, and 114mm telephoto lenses to the matte box. The 15mm LWS and 19mm studio rod adapters are height-adjustable to match the size of your lens. A top flag and two side flags are included to prevent unwanted flare, and a top handle with five threaded holes allows you to mount additional accessories such as lights, extension arms, and adapter shoes. The entire system is built on a hinge so you can easily swing the matte box away for lens and filter changes. All the components are packed in a formfitting foam that can be transferred to a carry case of your choice.
  • Two 4 x 5.65" filter stages independently rotate 360°; an 82mm filter ring is also included
  • Durable, lightweight carbon fiber construction
  • A top flag and side wings reduce unwanted flare
  • Swing-away design allows for quick and easy lens changes
  • Large 143mm opening with 114mm ARRI-style rubber bellows to attach standard cine lenses
  • 80, 95, 104, and 114mm lens adapters are included
  • 15mm LWS and 19mm studio rod adapters attach matte box to standard LWS rod systems
  • Top handle with five threaded screws to add attachments

15 mm 4" rods (15TUBE4)

01 Shape 15tube4 Product PictureOne pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
  • 15-mm diameter
  • 4-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish

15 mm 8" rods (15TUBE8)

01 Shape 15tube8 Product PictureOne pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
  • 15-mm diameter
  • 8-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish
