Designed to match the Canon C70 optical center
Comes with an adapter plate
Comes with (1 pair) 15 mm 12″ rods
Mounting holes for securing the camera to a tripod plate
Ratchet key knobs to secure rods
Rubber pads at the top of the base to protect your CANON C70

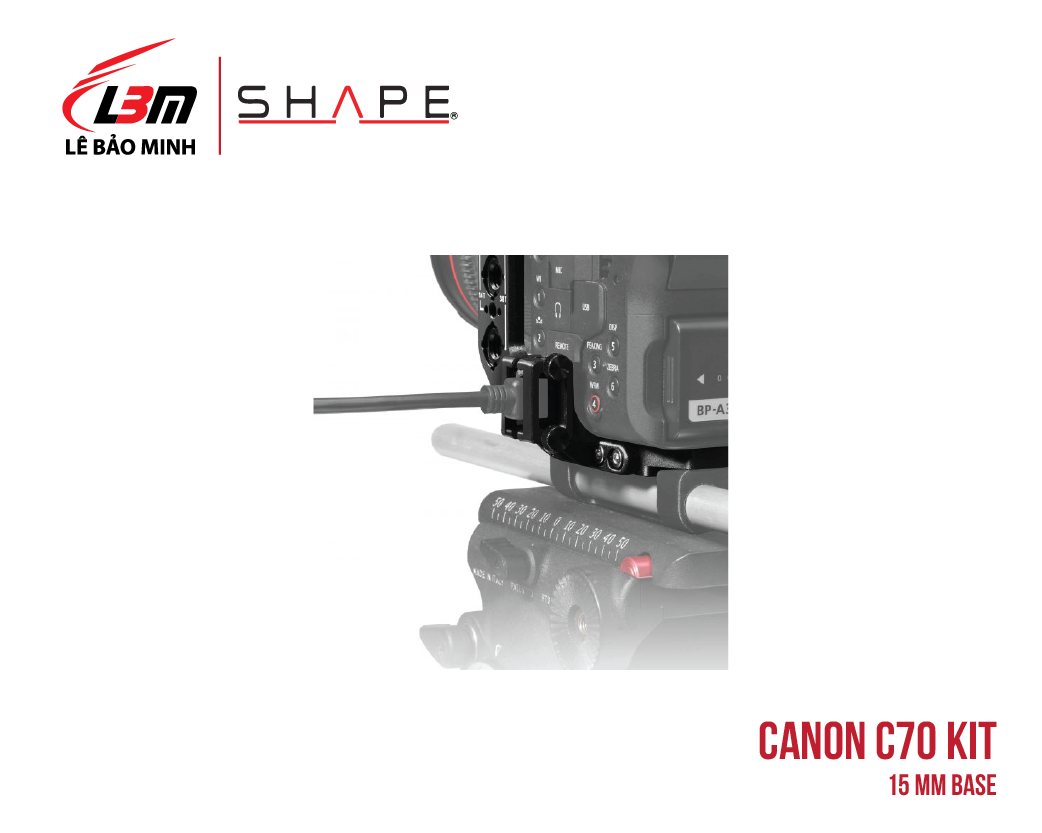

Integrated HDMI Cable Clamp
Made of CNC aluminum
Description

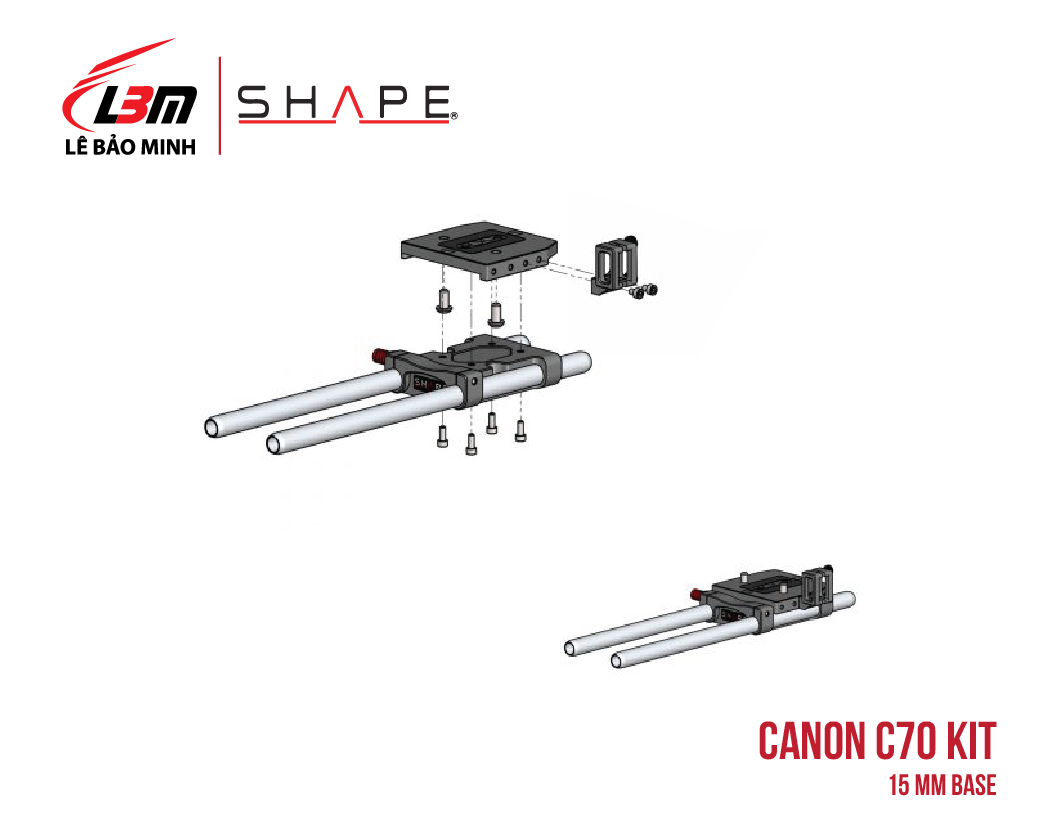

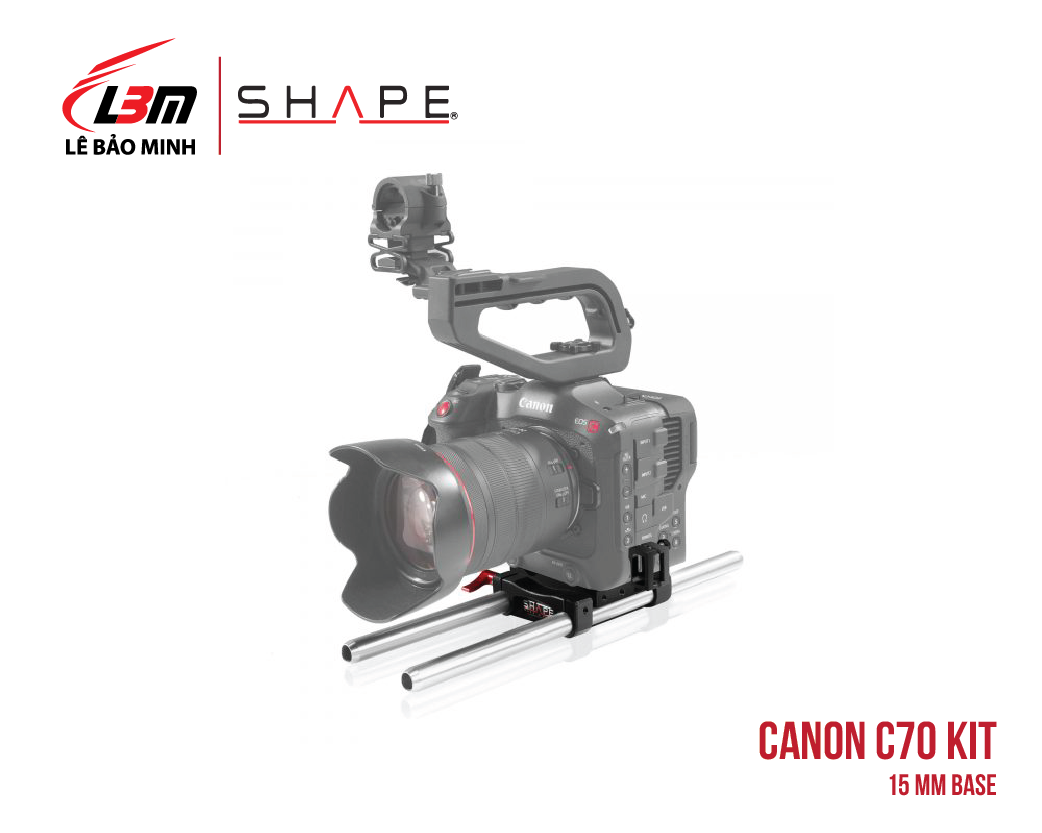

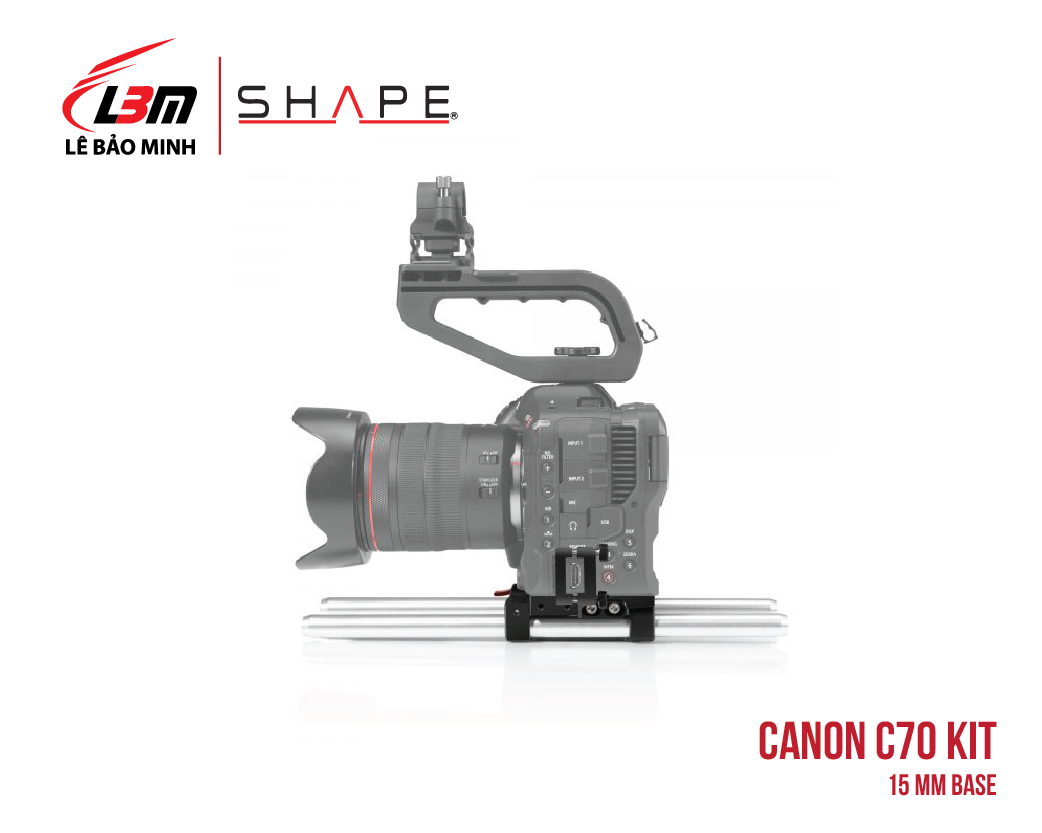

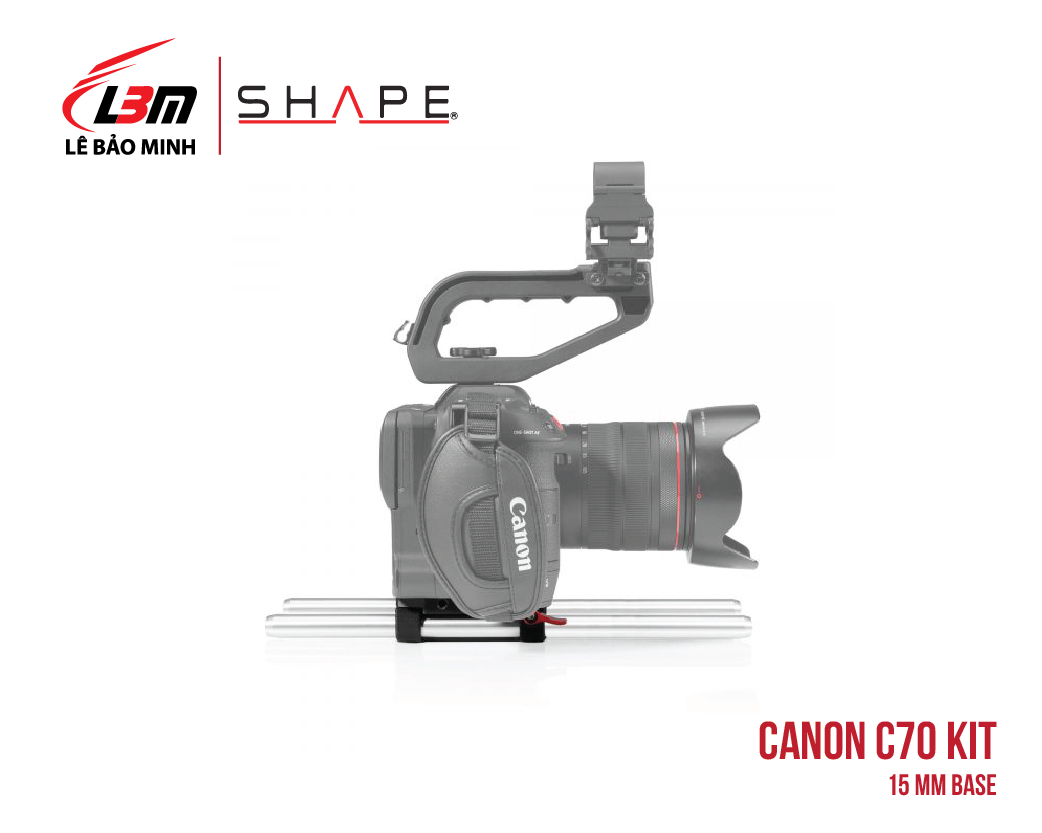

The 15 mm LW Baseplate system is designed to match the CANON C70 optical center. The two pieces base plate features an adapter plate and a 15 mm lws rod base. Strongly mounted with two 1/4-20 screws. The 15 mm LW baseplate comes with a pair of 15 mm rods 12” and the bottom of the plate features several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod. A detachable lock system to secure and hold in place your 4K FULL HDMI cable is included.
15 mm 12" rods (15TUBE12)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 12-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
