Match Canon EOS C500 Mark II optical center
Bracket system with magnet let you swivel the baseplate
Protective rubber pads to protect your camera

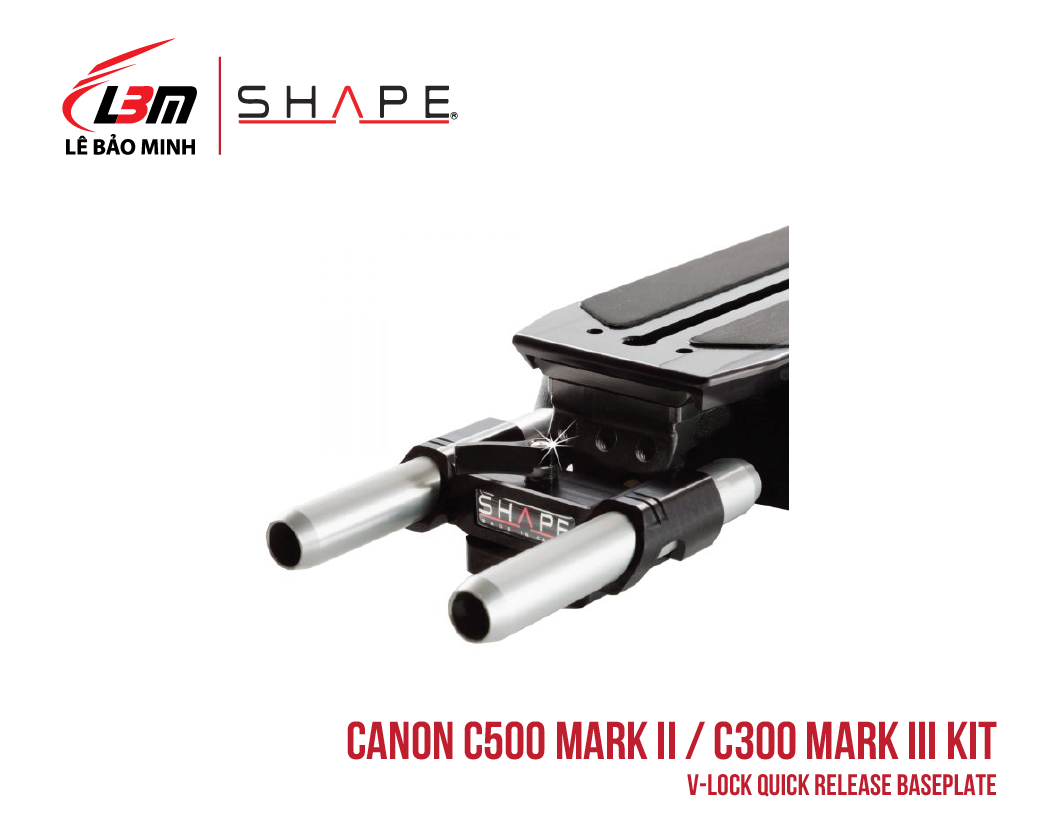

Front and rear 15 mm rod bloc system with safety ratchet knob
Come with 2 pairs of 15 mm rods (8”, 4”)
Designed with 2 standard Arri rosettes for handles mount

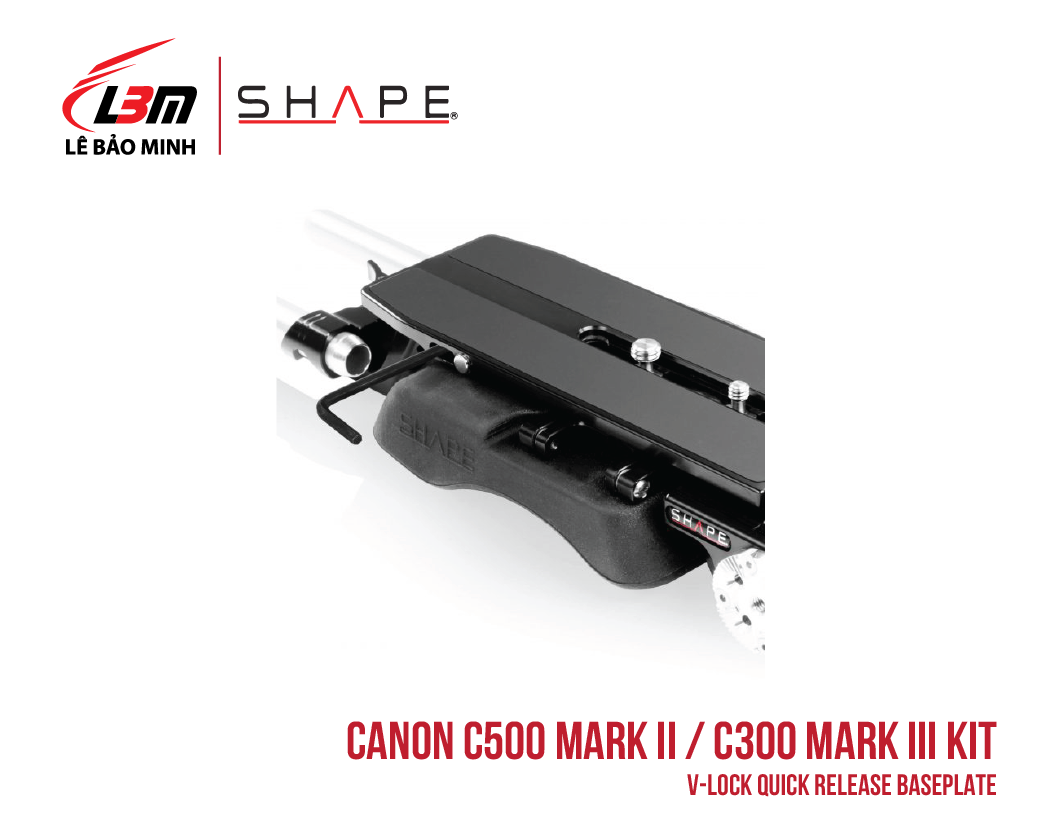

Comfortable shoulder pad made of slip-free material
Sophisticated tool box to store your extra screws and Allen key
Quick release adapter plate for VCT tripod plate mount
Made of CNC Machined Aluminum
Description
Compact REVOLT shoulder baseplate (BP20)
The compact REVOLT shoulder baseplate (BP20) is a lighter, fixed-plate version of the REVOLT VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.
15 mm 4" rods (15TUBE4)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 4-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
15 mm 8" rods (15TUBE8)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 8-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
