Tính năng

Compatible with C500M2 optical center and native handle
Can be tripod or shoulder mounted
Form fitting cage with Arri rosette mount
Cage features 3/8-16 & ¼-20 threaded holes with anti rotating holes
Cage features an adapter plate and a top plate
Shoulder baseplate with Arri rosettes features (2 pairs) 15mm 8”& 4” rods
Top plate features (1 pair) 15mm rods 4”
Left handle with Arri rosette and Push-Button Technology

Chi tiết

ẨnHiện

Description

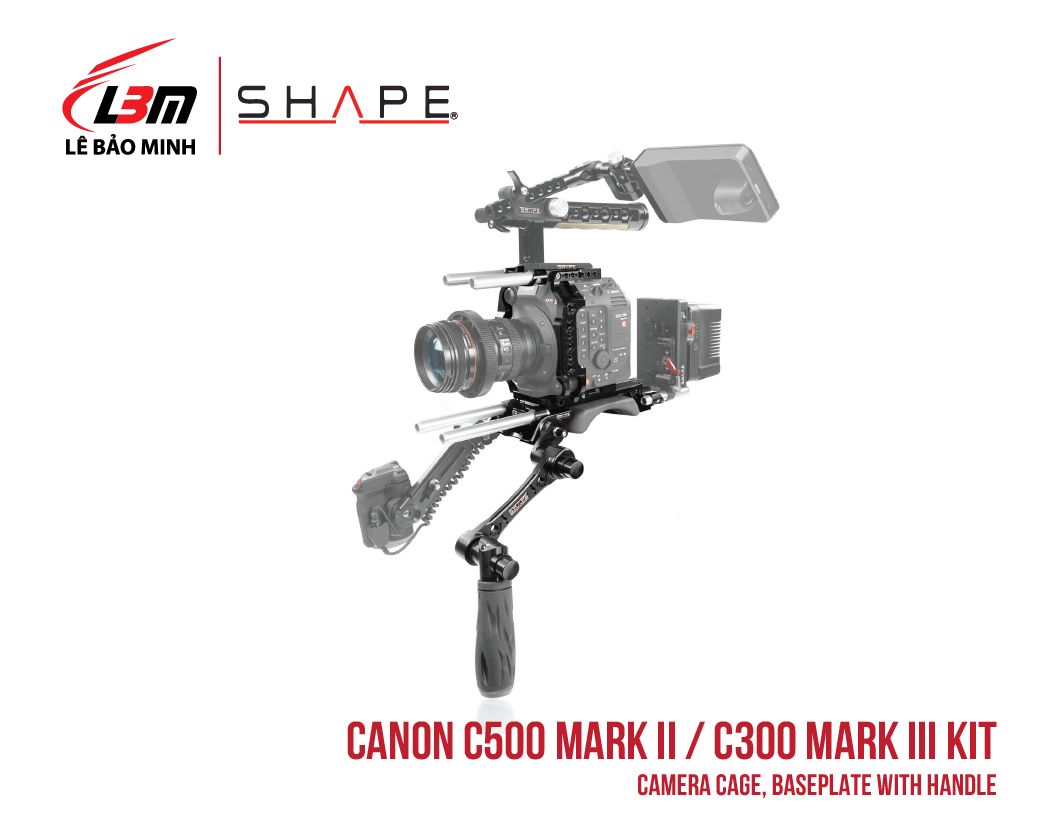

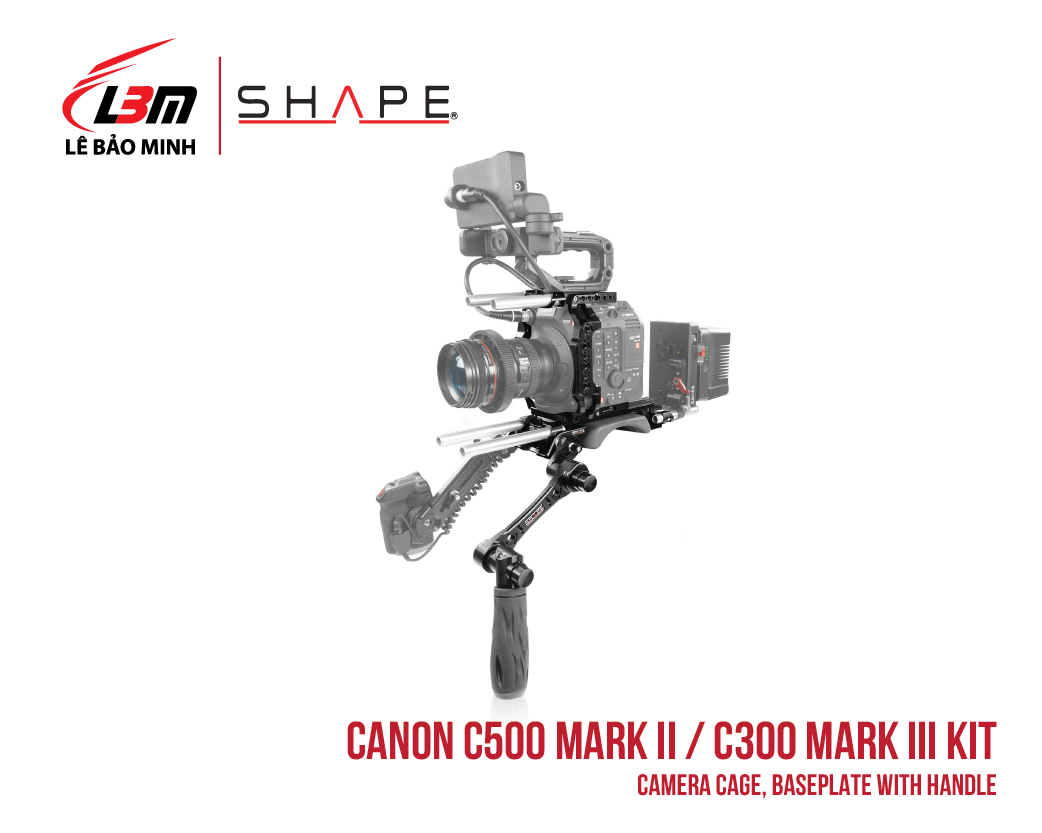

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this Pro Shoulder Rig Kit from SHAPE. This kit includes a shoulder mount baseplate with 15mm rod system, a form fitting cage with Arri rosette and a rosette handle with black push-button. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The bottom of the cage attaches to the rear of the camera to support it on the baseplate. The 15mm rods allow you to mount additional accessories like a matte box and follow focus. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position.

Canon C500 Mark II, C300 Mark III V-lock quick release baseplate (C52BP)

01 Shape C52bp Product Picture

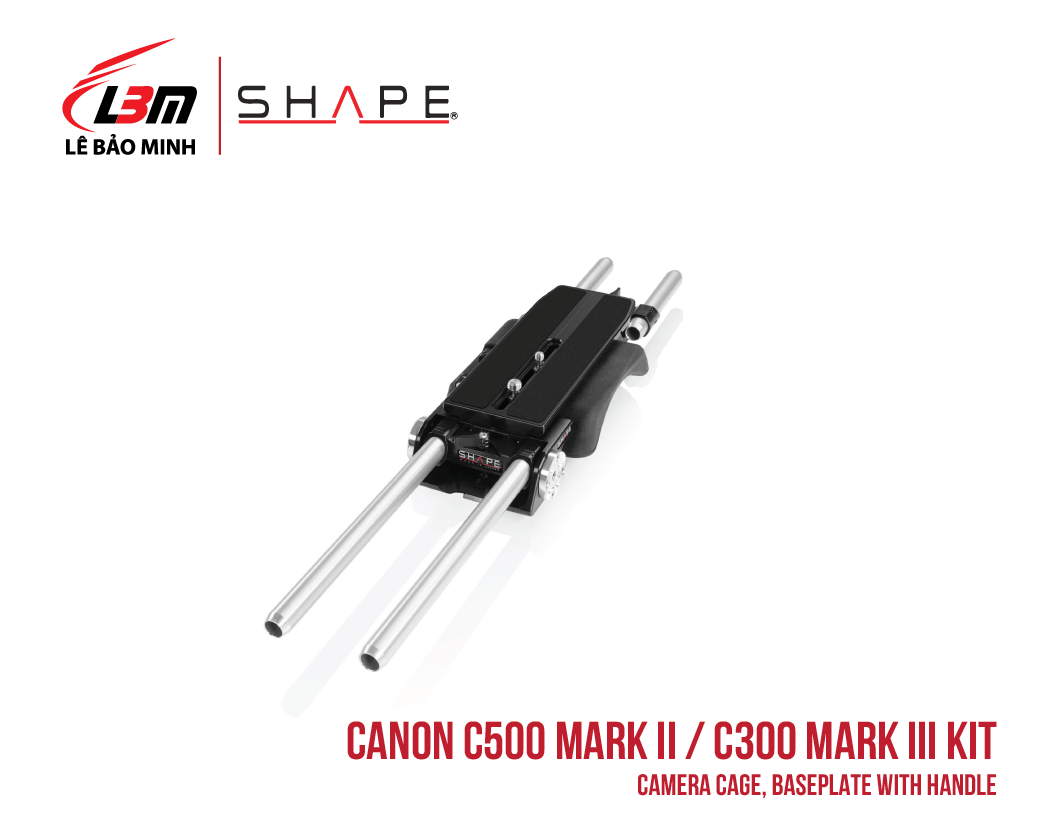

Compact REVOLT shoulder baseplate (BP20)

01 Shape Bp20 Product Picture

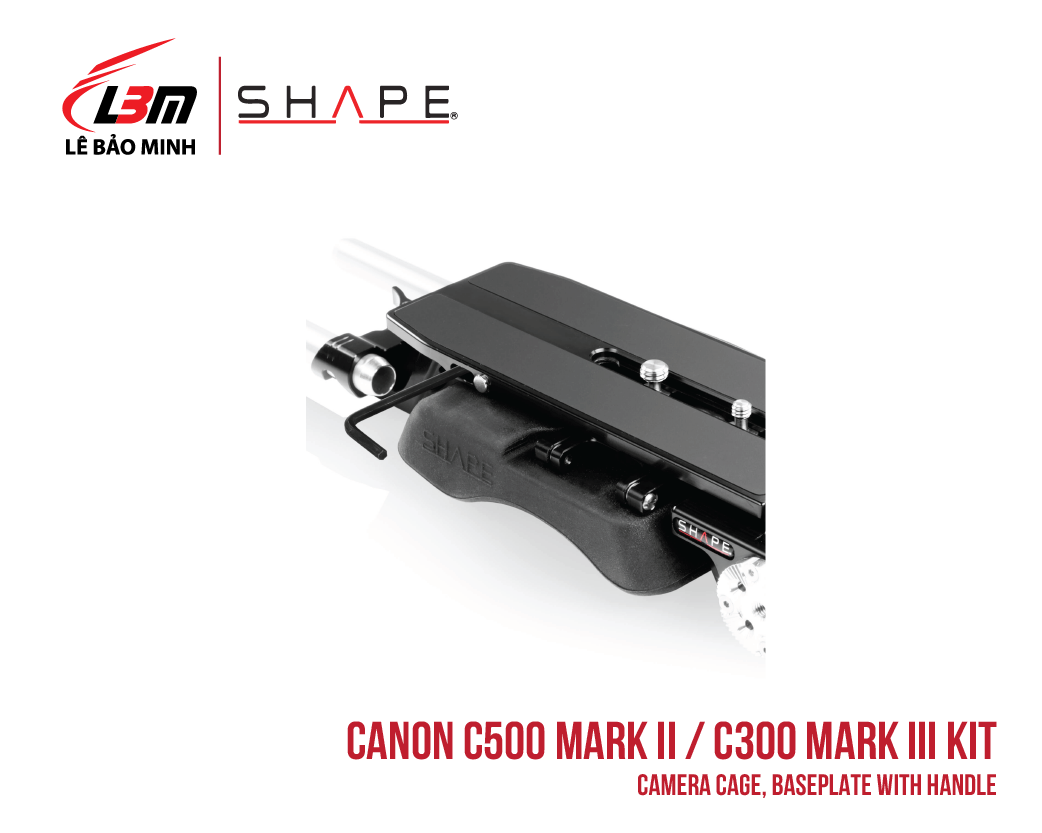

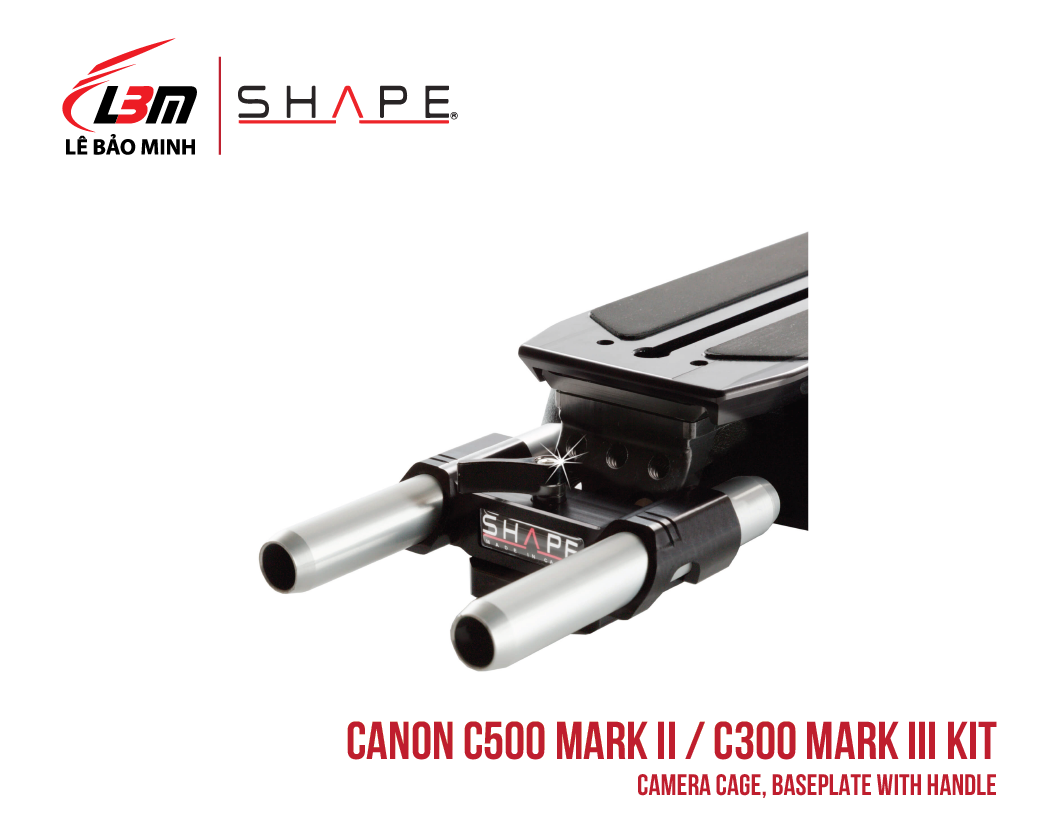

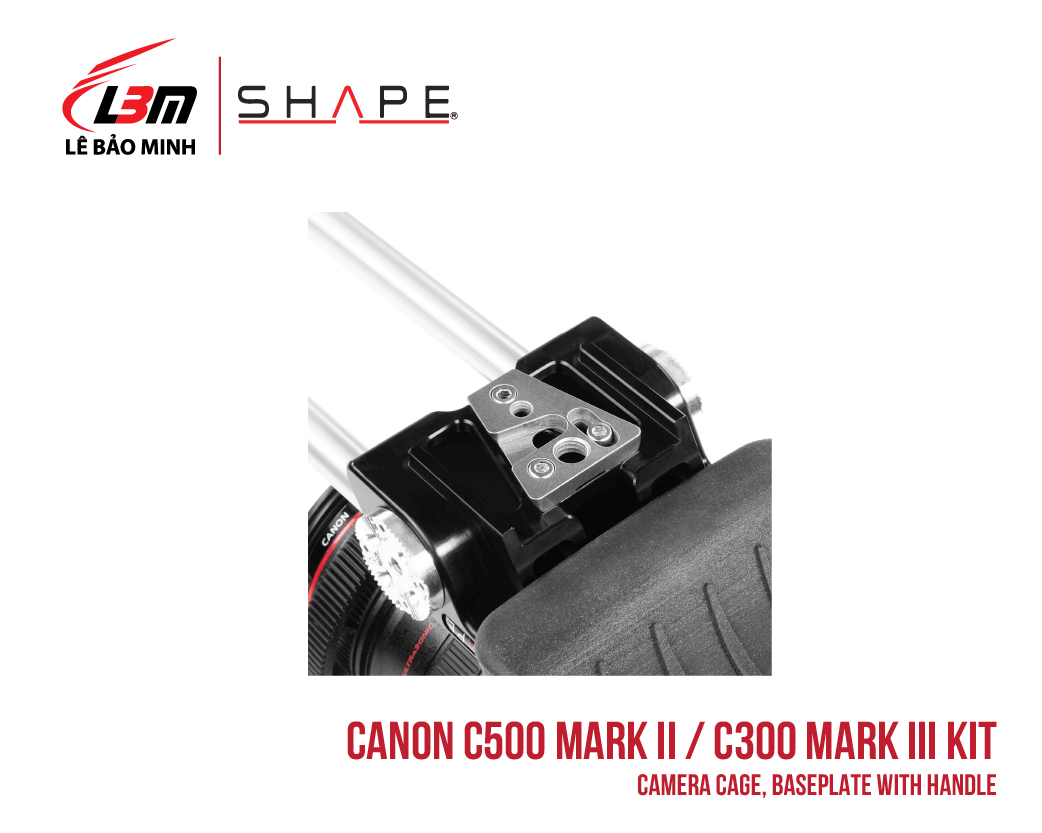

The compact REVOLT shoulder baseplate (BP20) is a lighter, fixed-plate version of the REVOLT VCT universal baseplate (BP10) with a magnetic bracket system that swivels the baseplate to the left for easy access to the camera screws. It includes 2 standard ARRI rosettes for handles and a standard quick release adapter compatible with most VCT tripod plates. Rubber pads on the top of the plate protect your camera. Two 15 mm lightweight rod blocks can be fixed to the front and rear of the baseplate, allowing you to install additional camera accessories. The thick gel shoulder pad keeps you comfortable on set all day long, even off the tripod. The baseplate incorporates a tool box to store your extra screws and magnetic retention for a hex key.

15 mm 4" rods (15TUBE4)

01 Shape 15tube4 Product Picture

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

  • 15-mm diameter
  • 4-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish

15 mm 8" rods (15TUBE8)

01 Shape 15tube8 Product Picture

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

  • 15-mm diameter
  • 8-in length
  • Hollow, non-threaded
  • Tapered ends for easy connection to a rod block
  • Aluminum coated with a clear finish

Canon C500 Mark II, C300 Mark III top plate (C52TP)

01 Shape C52tp

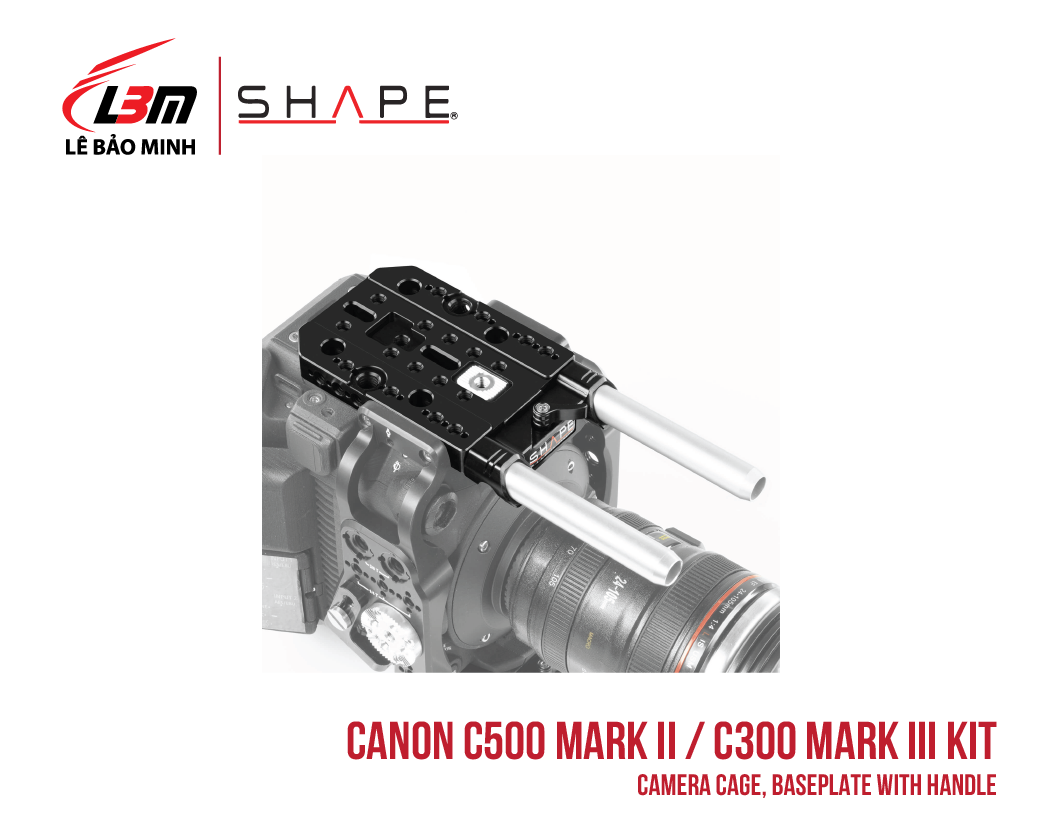

Lightweight and robust CNC machined aluminum top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and  3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrenche and (4) captive screws ¼-20 3/8 to attach the top plate to the camera

  • Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes
  • Top side: (18) ¼-20 threaded holes
  • Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

Canon C500 Mark II, C300 Mark III camera cage (C52CAGE)

02 Shape C52cage Product Picture

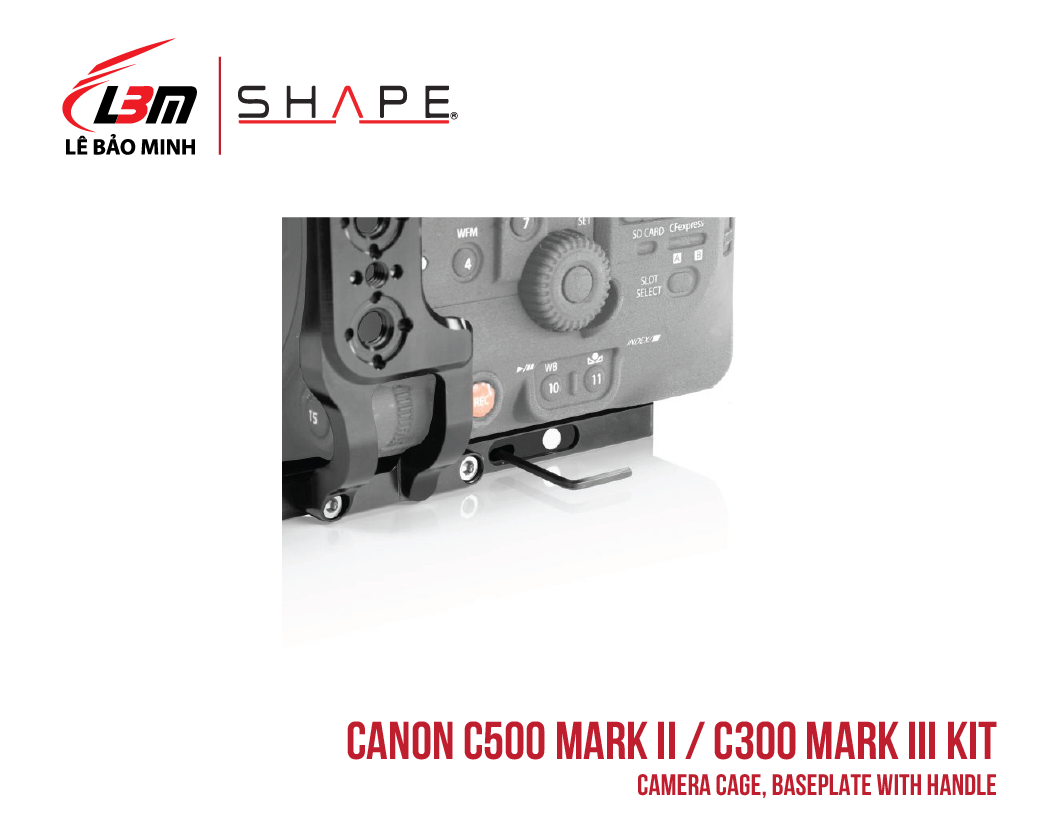

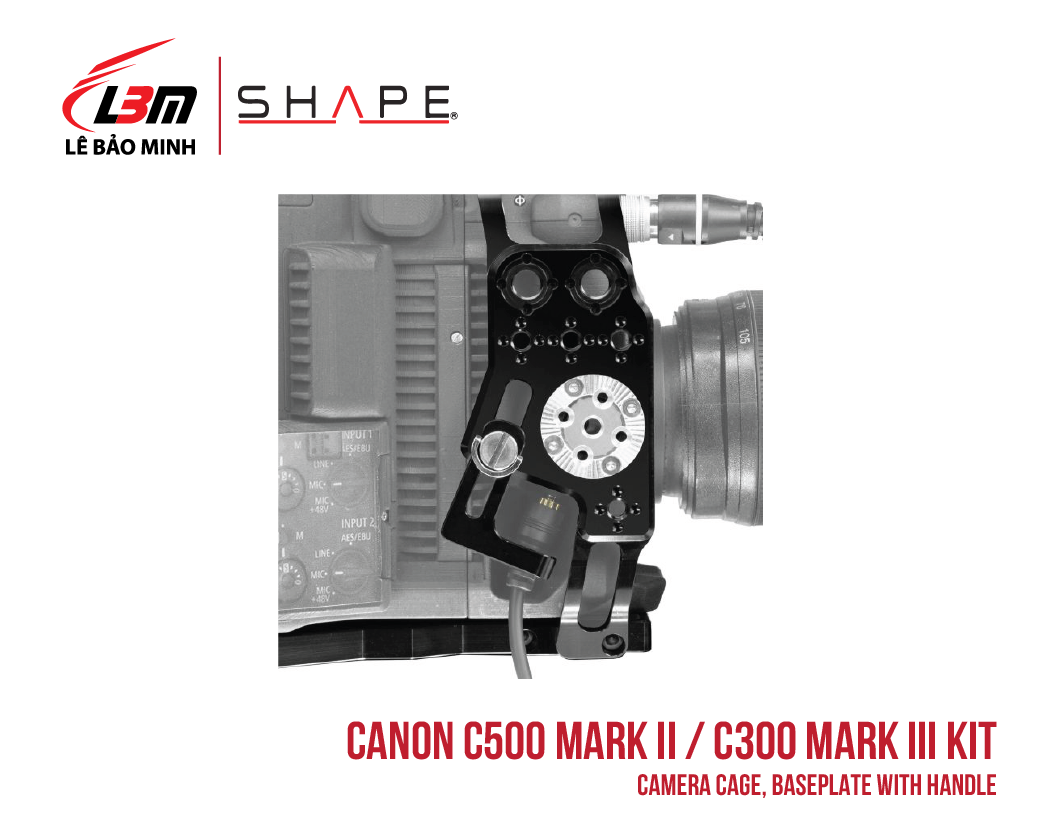

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.

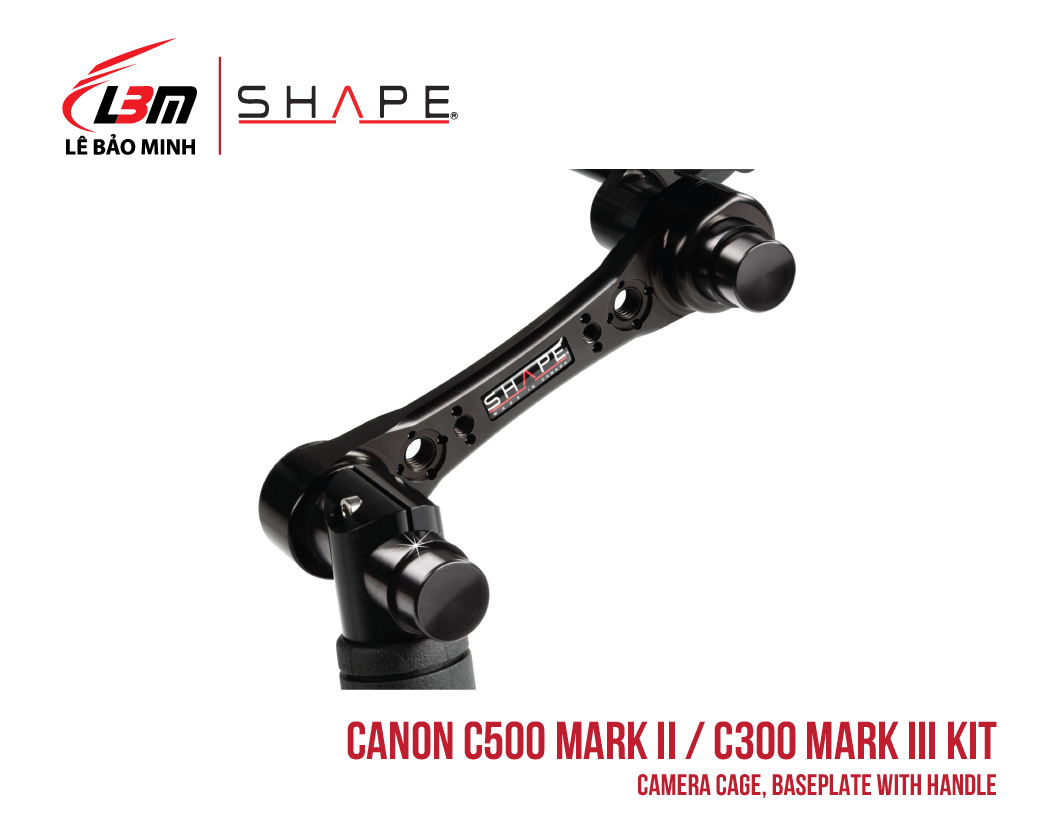

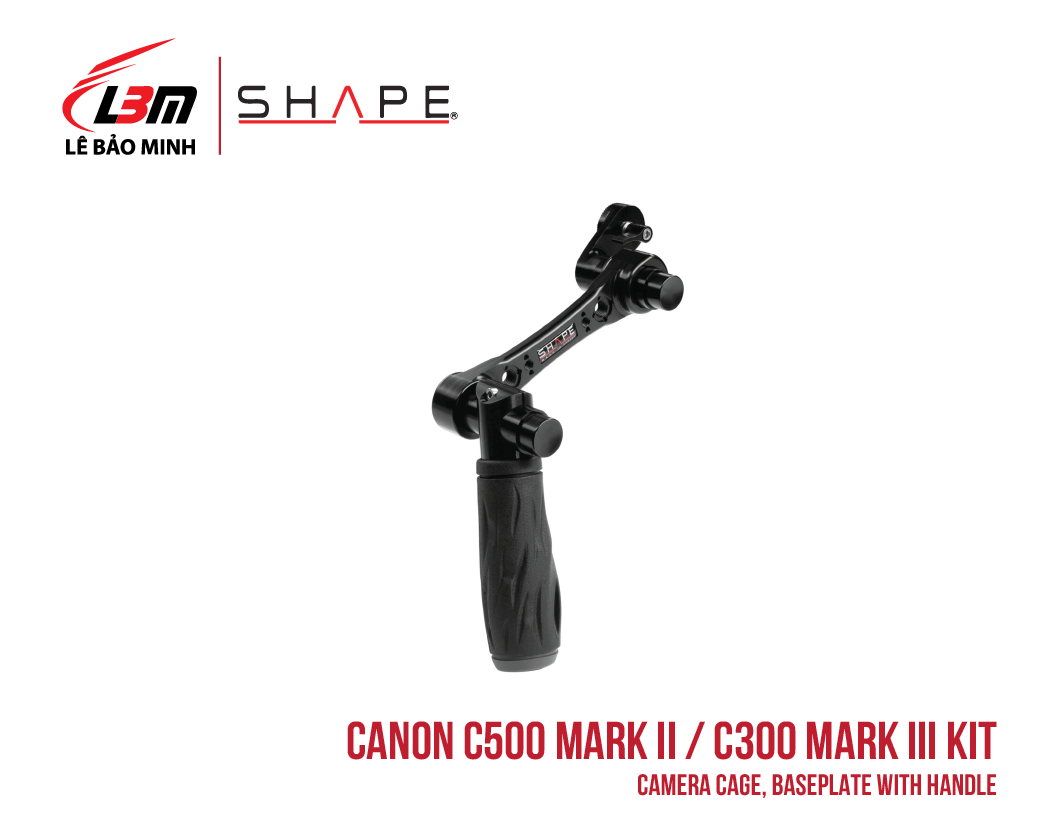

DOUBLE QUICK HANDLE ARRI ROSETTE SINGLE SHADOW (HAND2S)

03 Hand2s

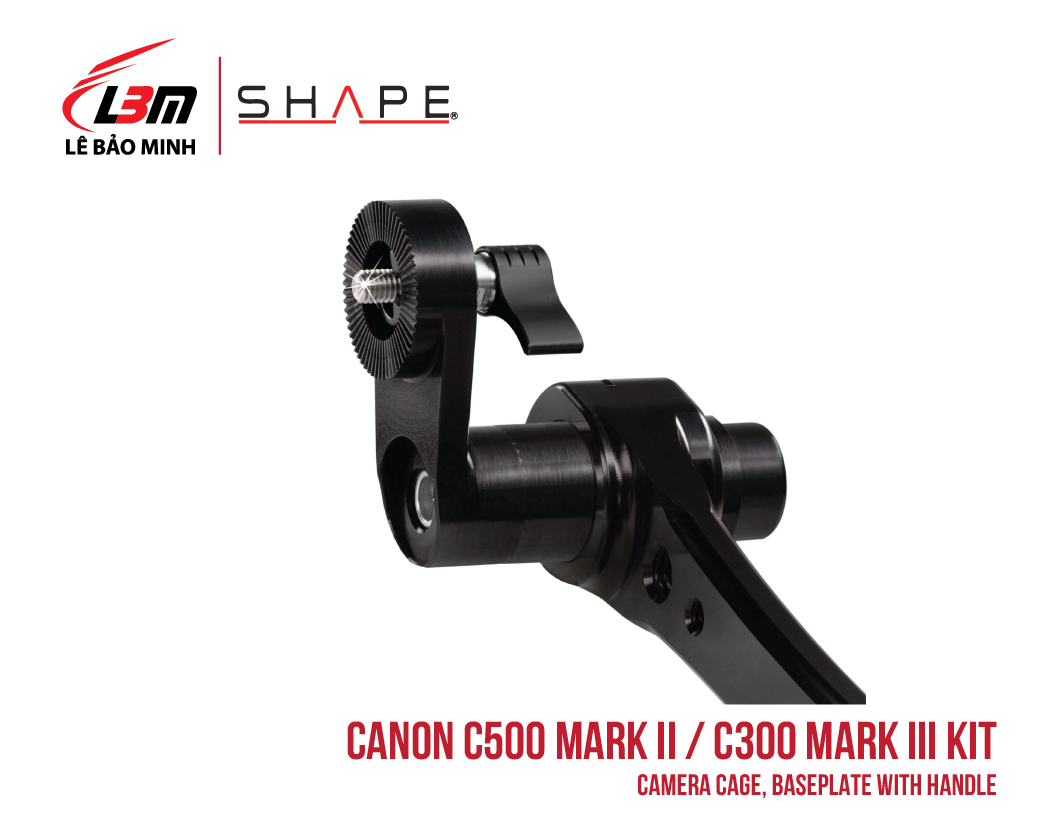

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.
