Tính năng
-
Thông số kỹ thuật
Compatible with Canon EOS C500 Mark II
Formfitting cage with Arri rosette and mounting options
Baseplate with Arri rosette, shoulder mount and 15 mm rod system
Left handle with Arri rosette and Push-Button Technology
Follow Focus pro
Description

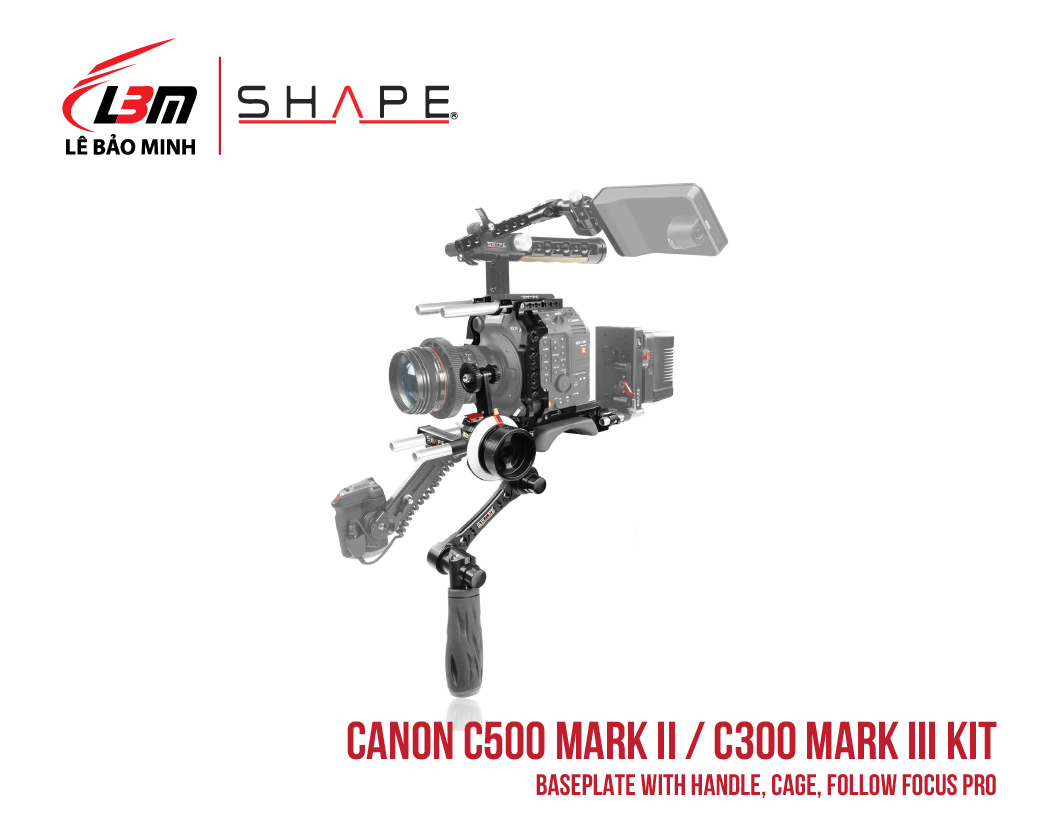

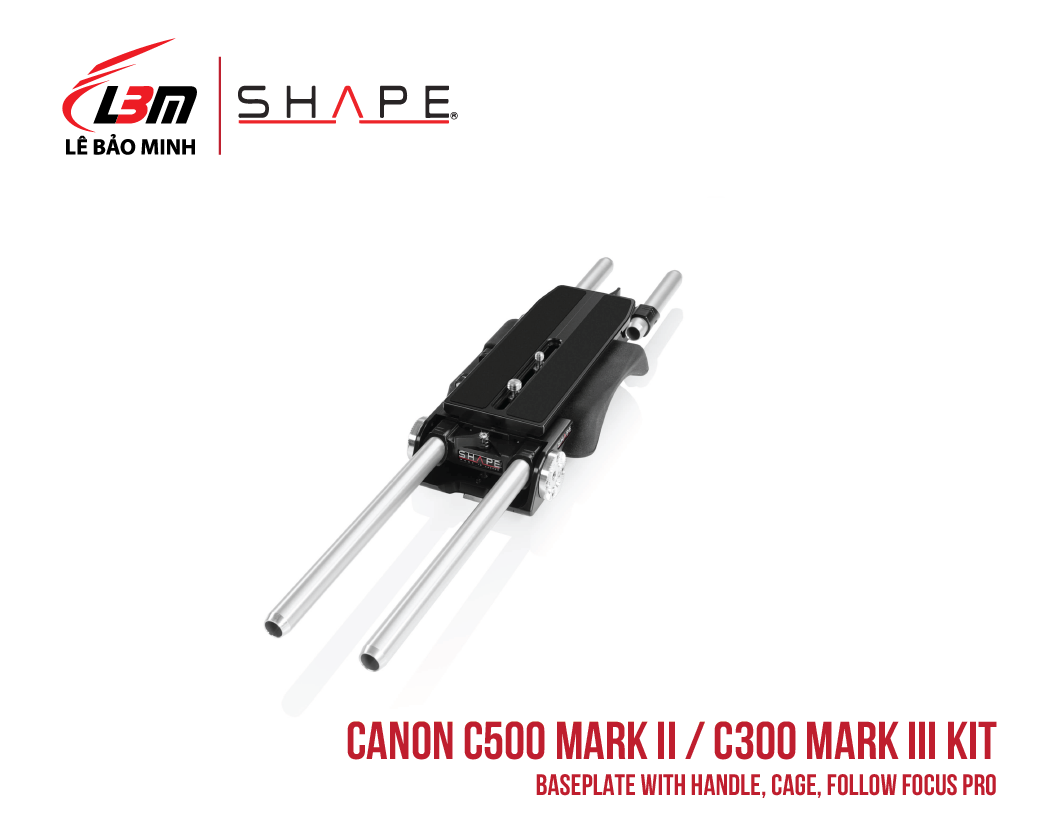

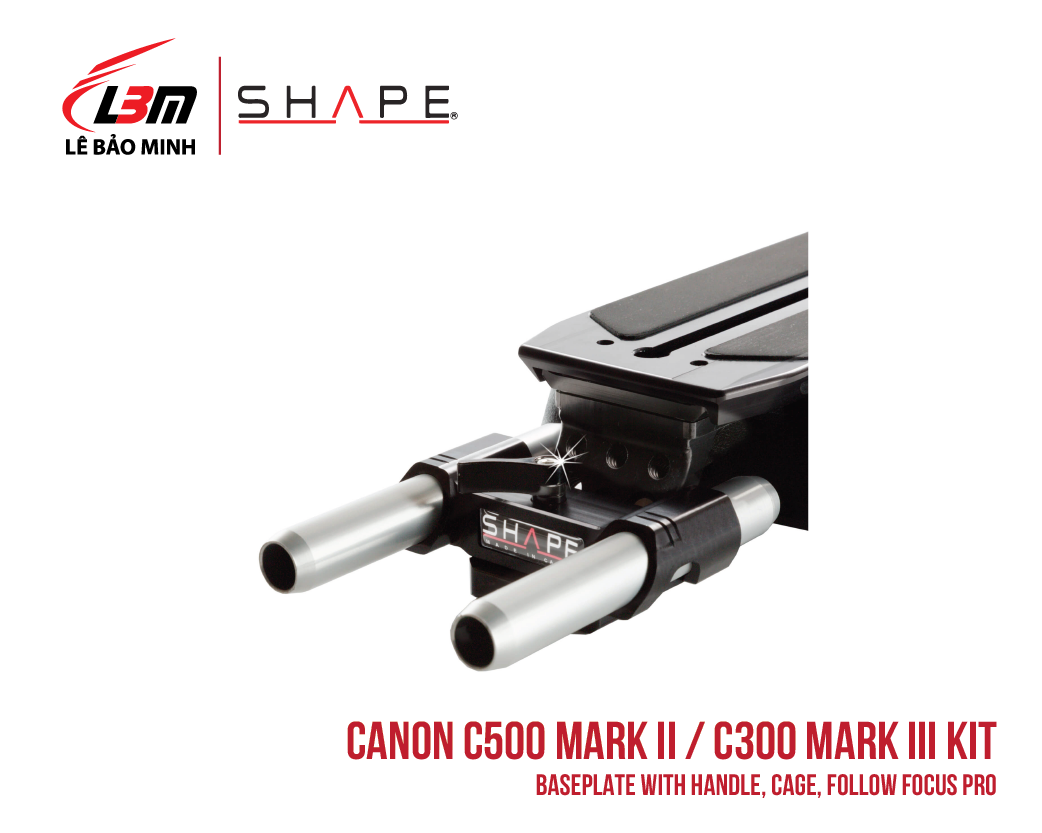

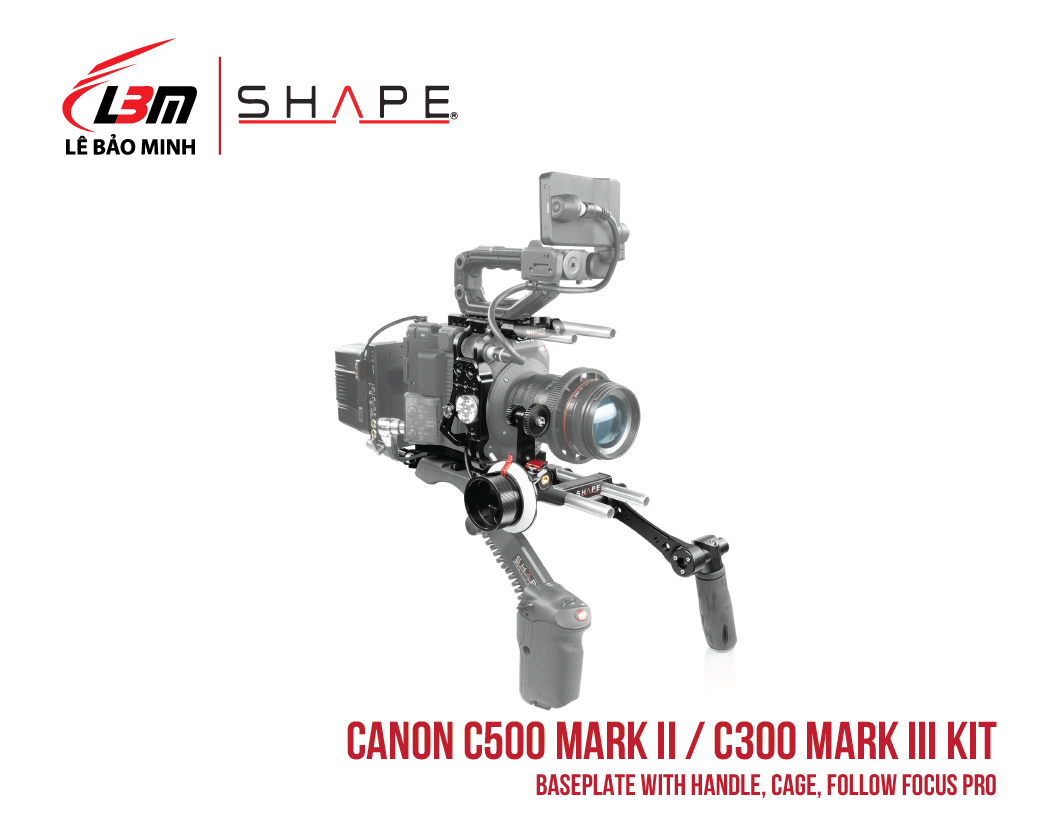

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this Pro Shoulder Rig Kit from SHAPE. This kit includes a shoulder mount baseplate with 15mm rod system, a form fitting cage with Arri rosette , a rosette handle with black push-button, and a follow focus pro. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The bottom of the cage attaches to the rear of the camera to support it on the baseplate. The 15mm rods allow you to mount additional accessories like a matte box and follow focus. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position.

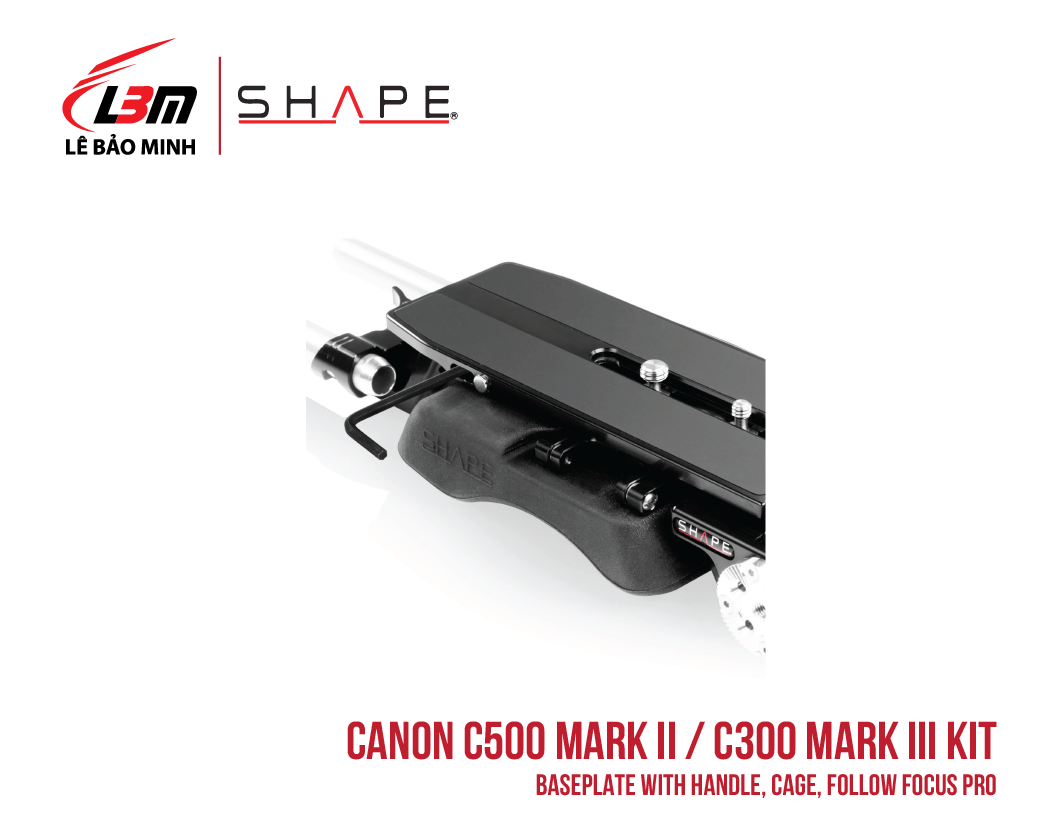

Canon C500 Mark II, C300 Mark III V-lock quick release baseplate (C52BP)

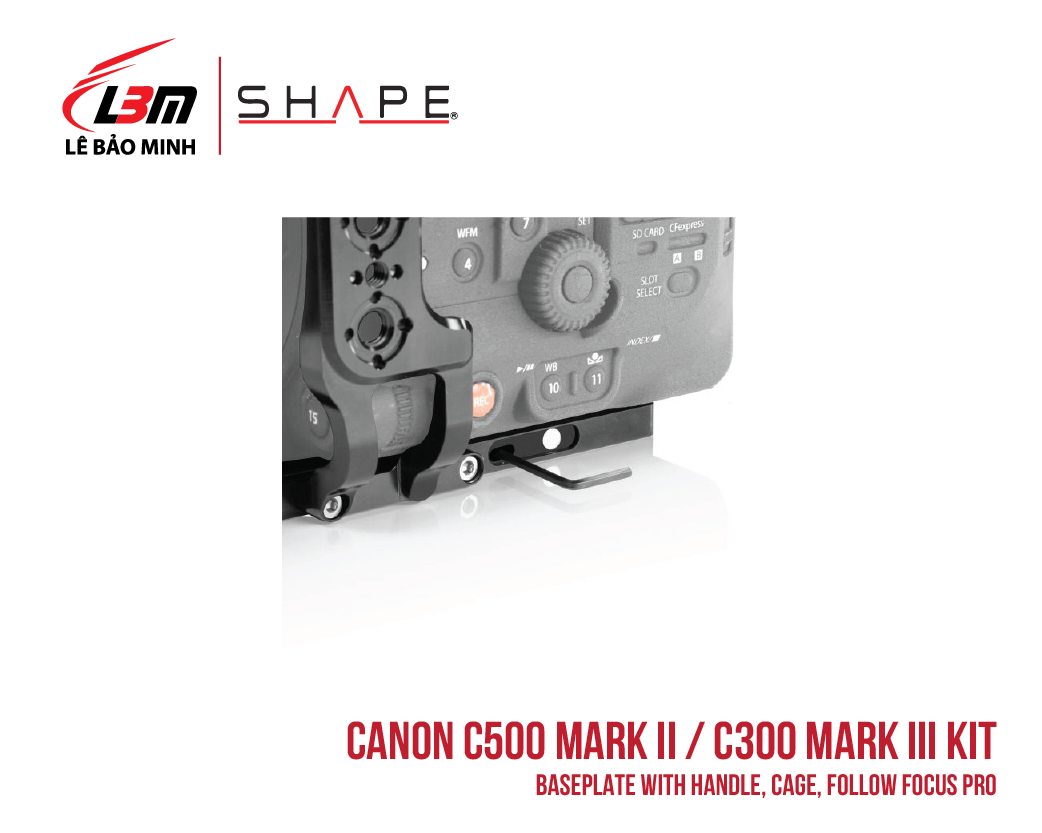

Canon C500 Mark II, C300 Mark III camera cage (C52CAGE)
Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.Canon C500 Mark II, C300 Mark III adapter plate (C52AP)

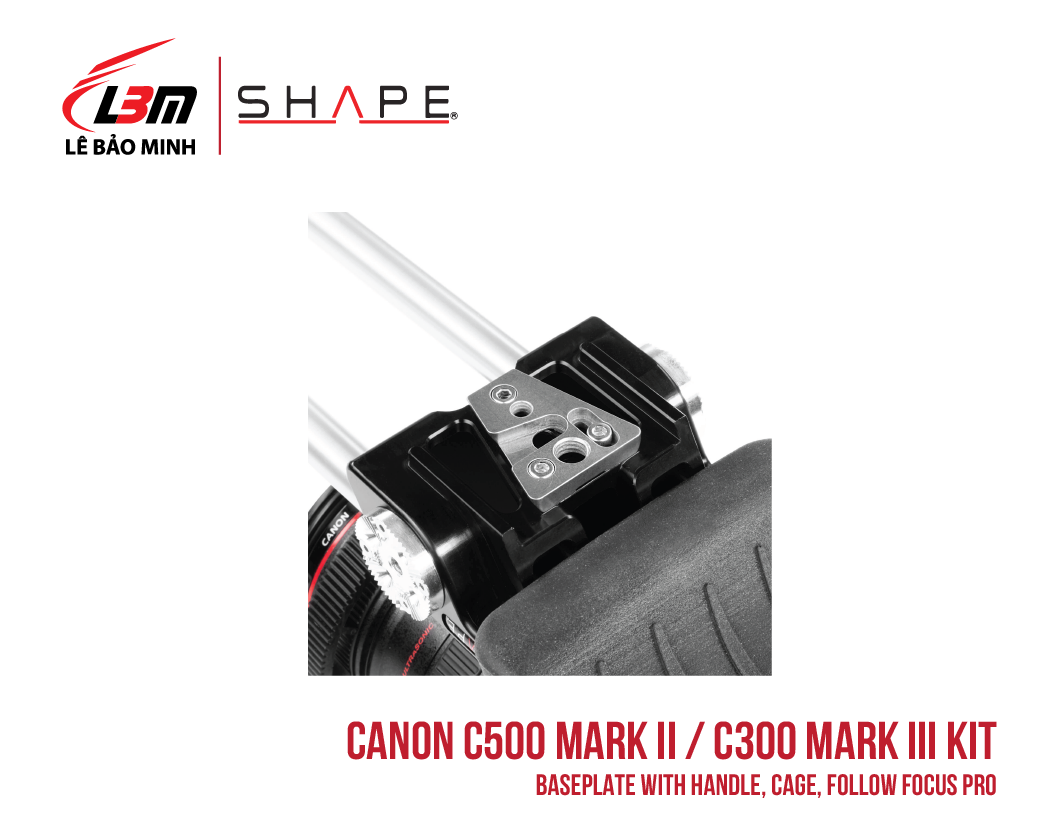

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.Canon C500 Mark II, C300 Mark III top plate (C52TP)

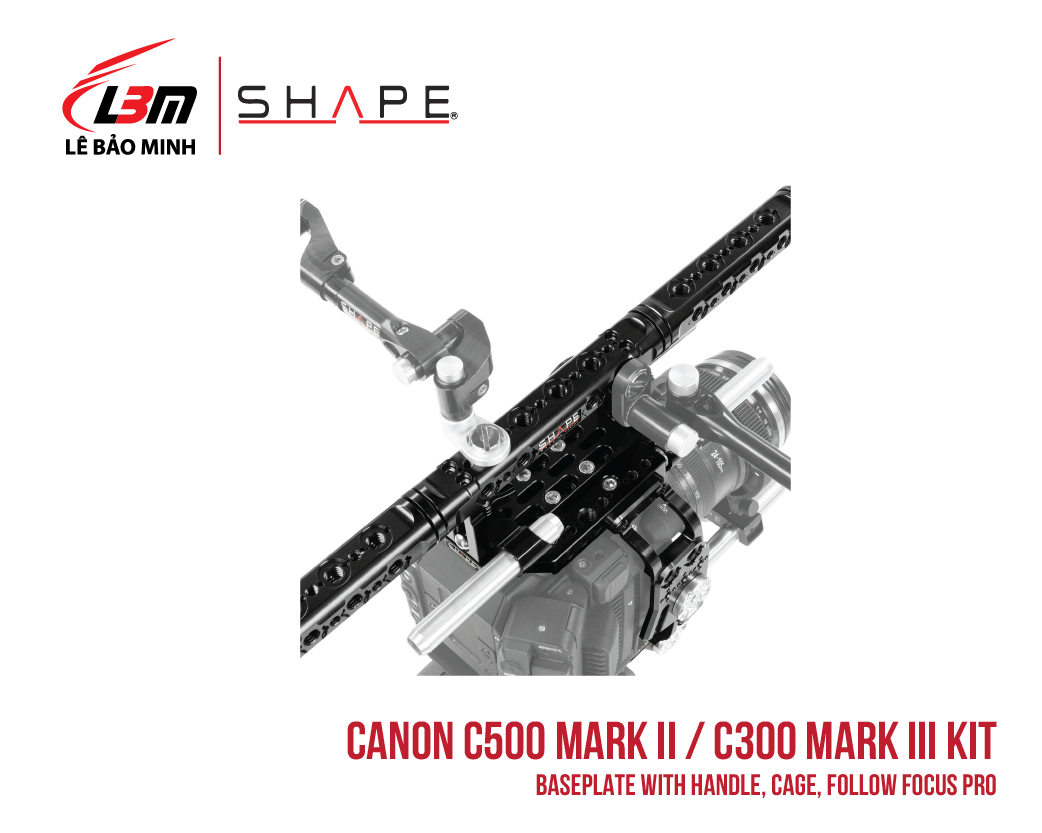

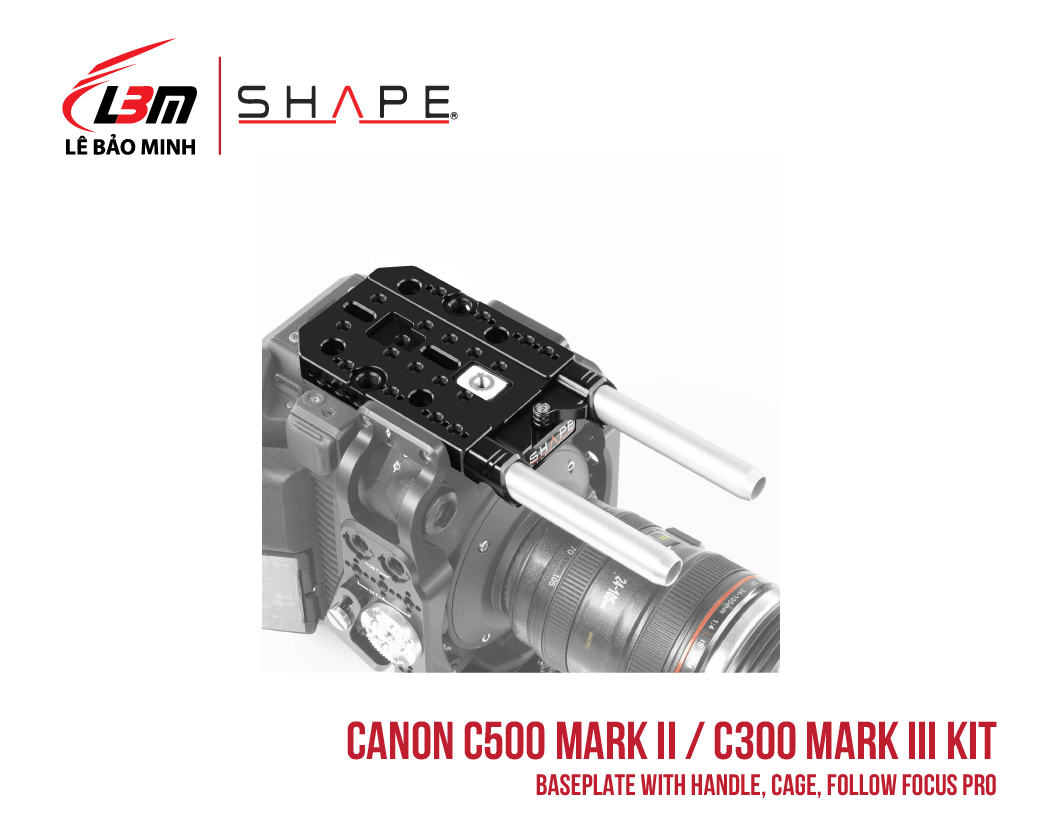

Lightweight and robust CNC machined aluminum top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and 3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrenche and (4) captive screws ¼-20 3/8 to attach the top plate to the camera
- Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes
- Top side: (18) ¼-20 threaded holes
- Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

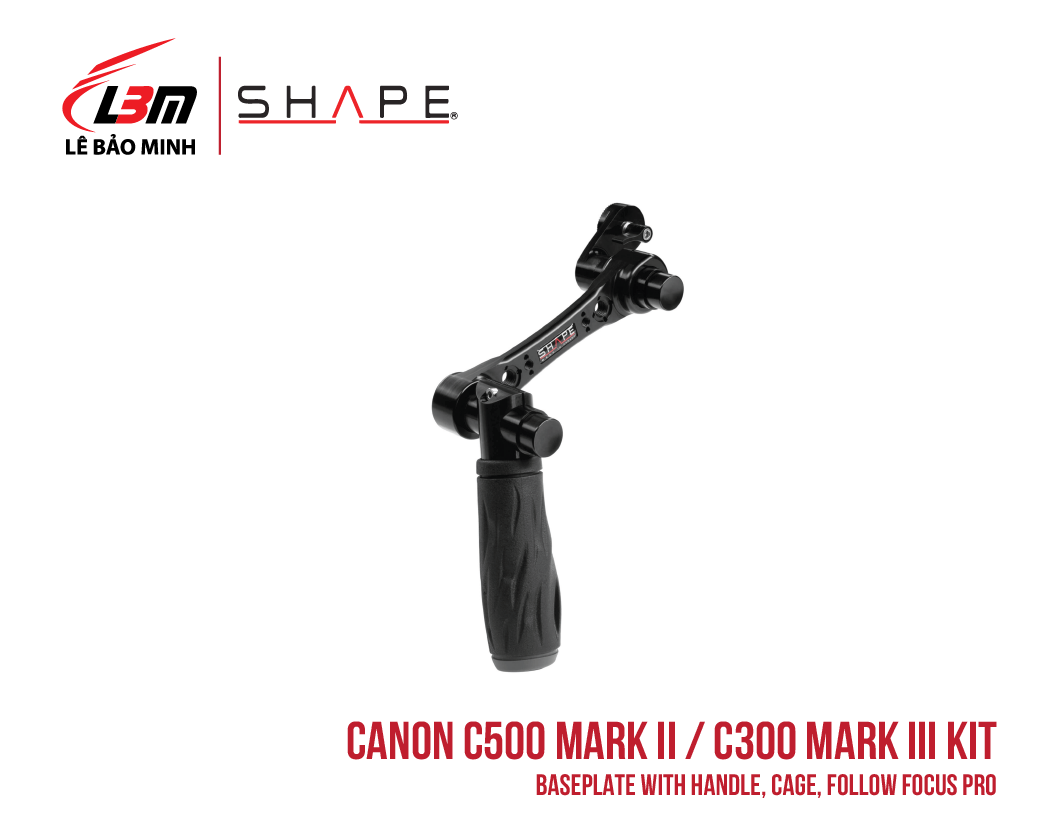

DOUBLE QUICK HANDLE ARRI ROSETTE SINGLE SHADOW (HAND2S)

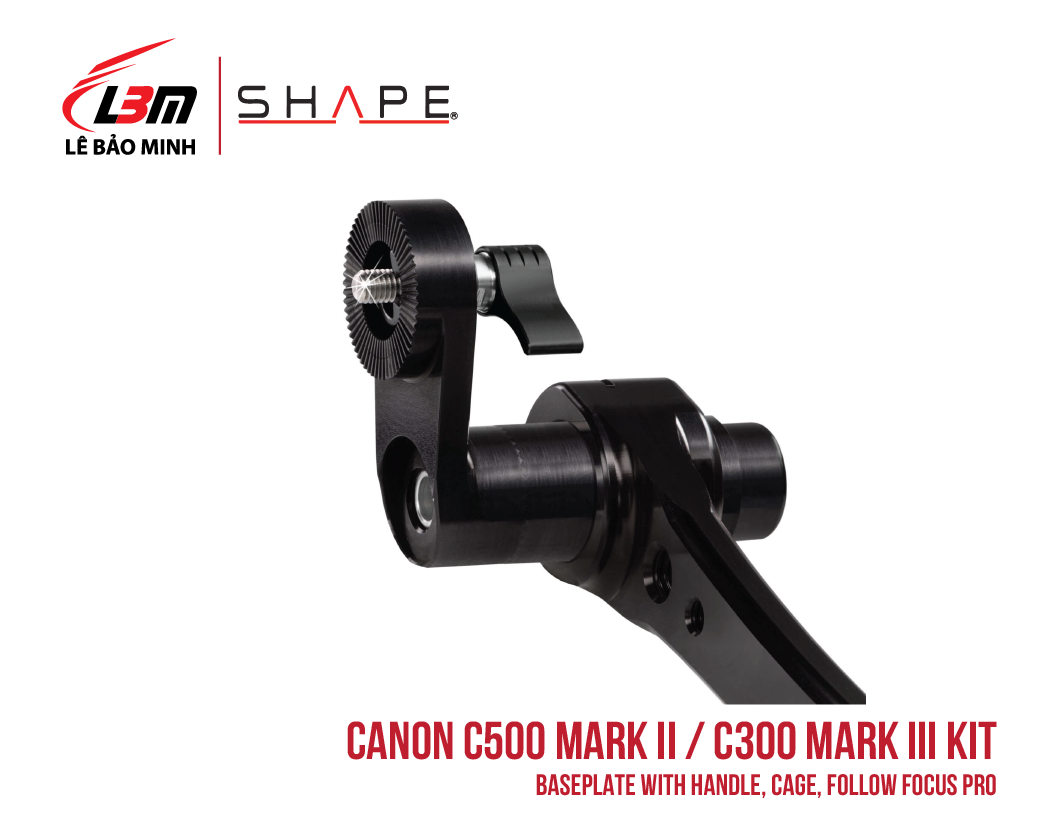

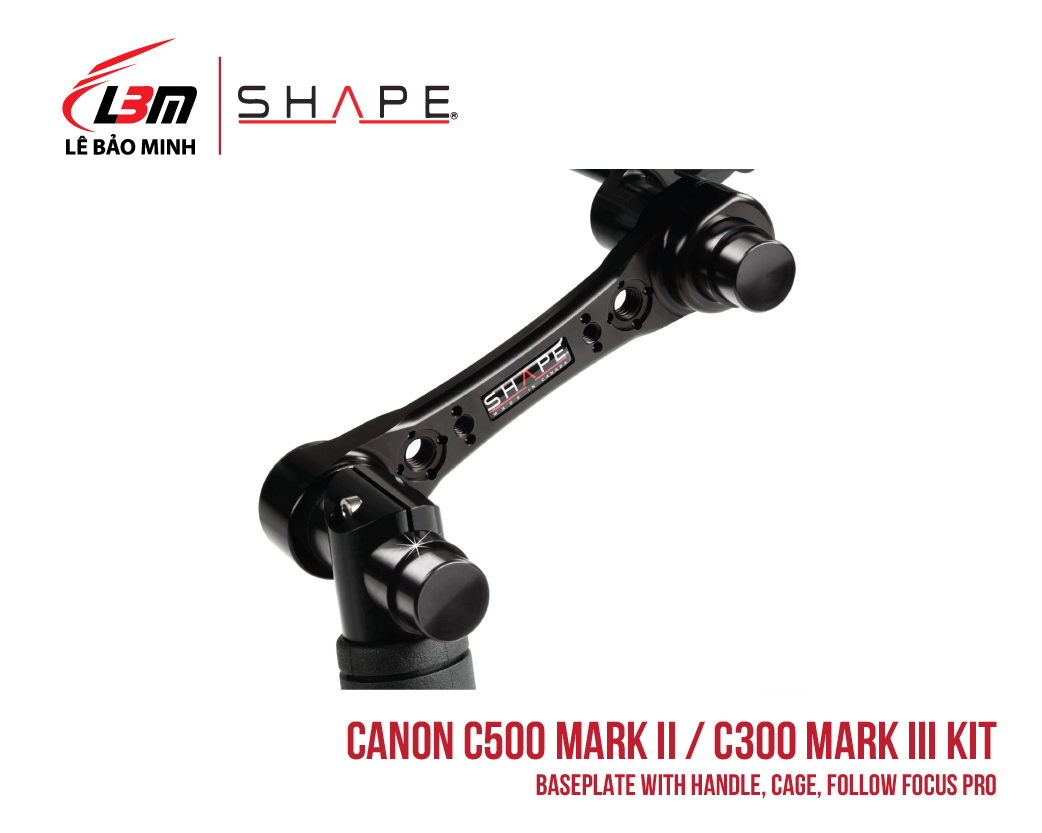

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.Follow Focus Pro (FFPRO)

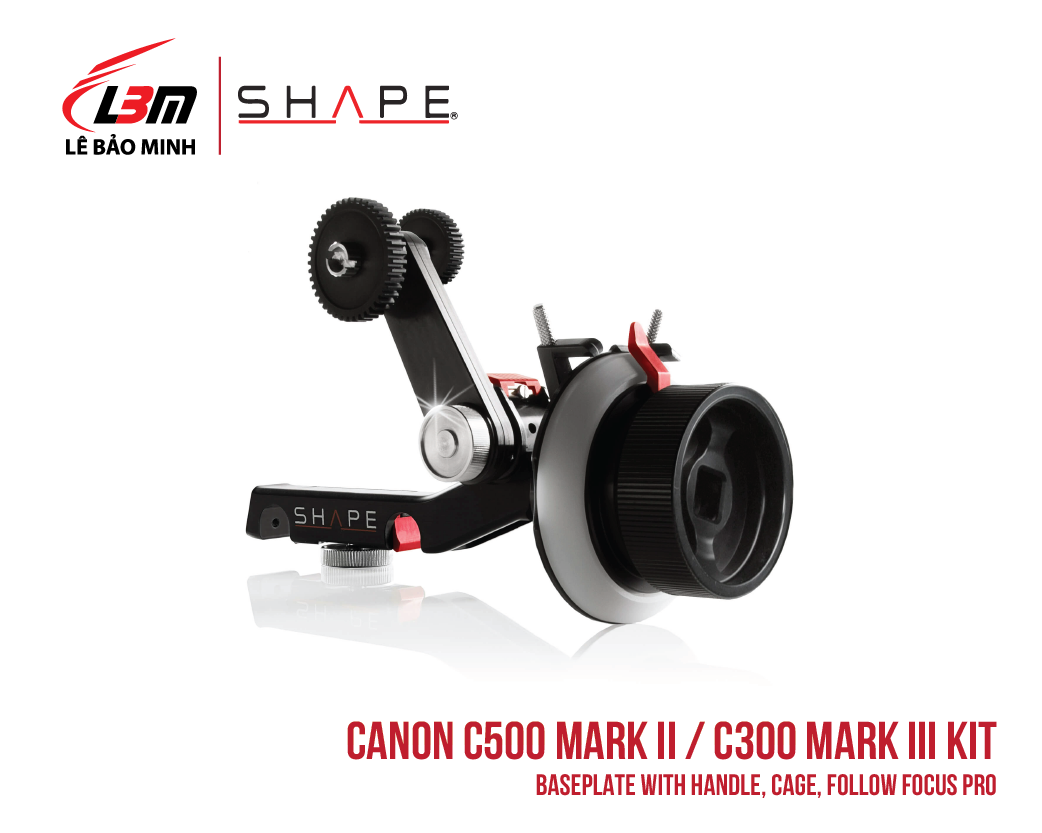

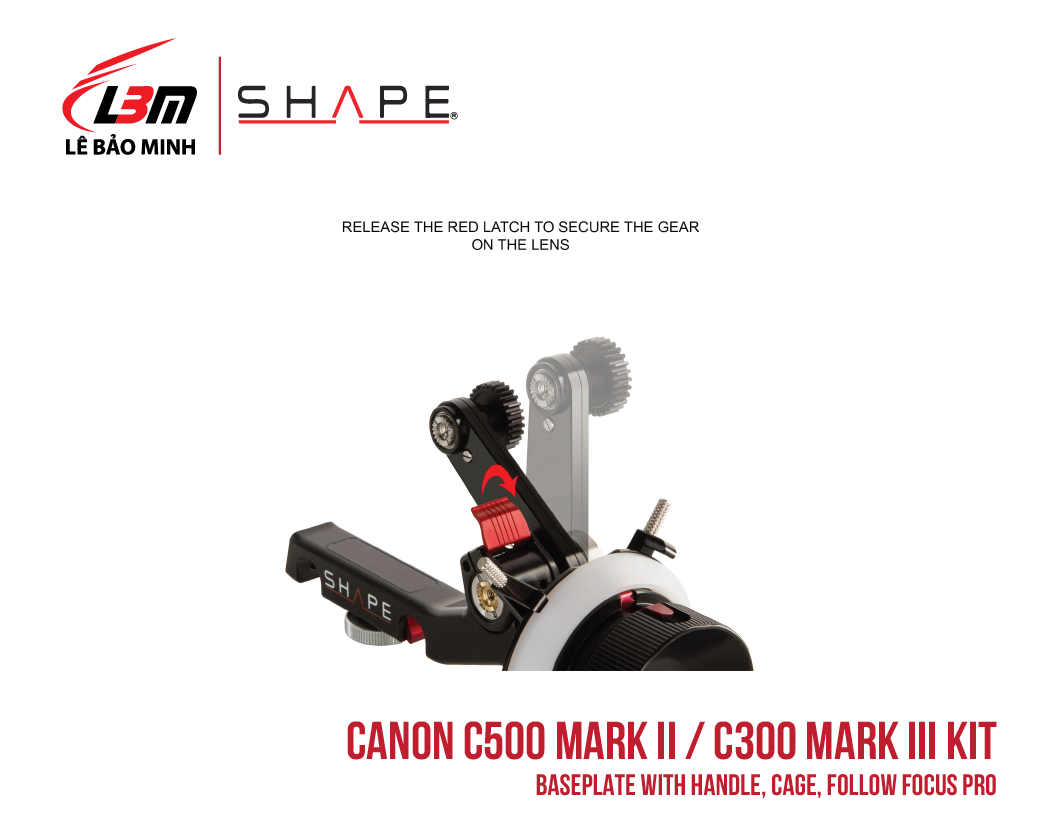

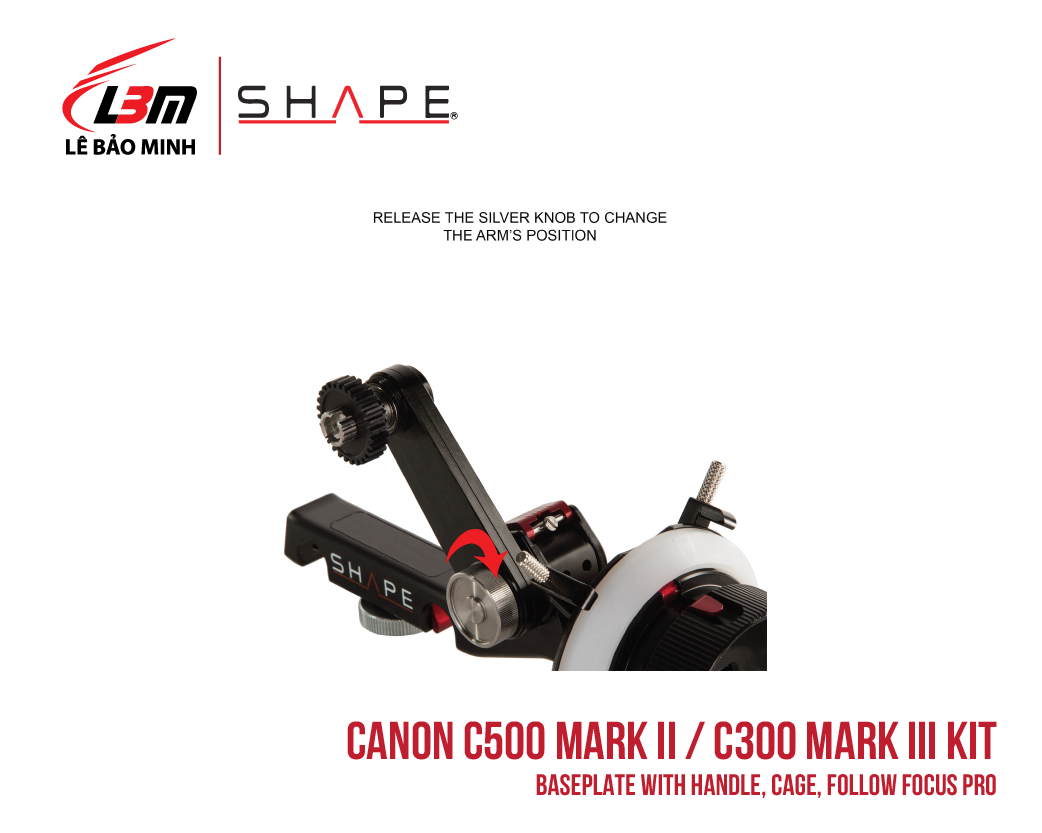

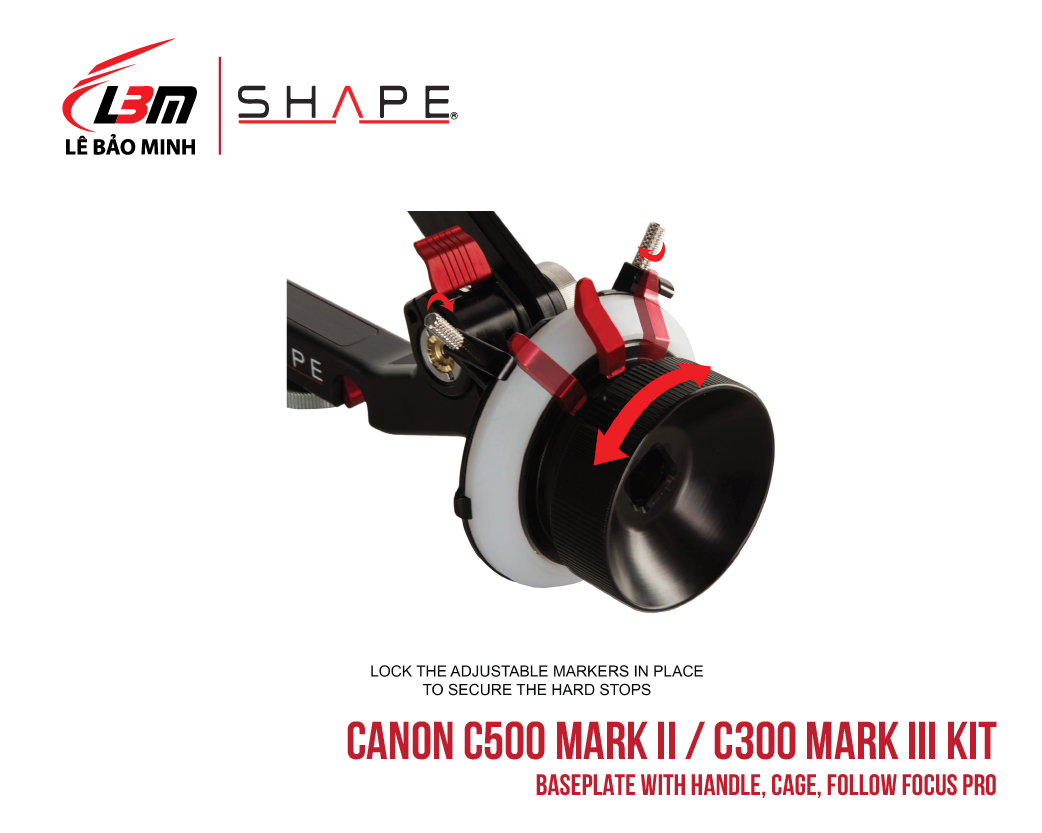

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.15 mm 8" rods (15TUBE8)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 8-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
15 mm 4" rods (15TUBE4)
One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.
- 15-mm diameter
- 4-in length
- Hollow, non-threaded
- Tapered ends for easy connection to a rod block
- Aluminum coated with a clear finish
