Extendable & Sophisticated Top Handle
View Finder Bracket Arm with (2) Push-Button technology
C200 Top Plate

Chi tiết

ẨnHiện

Description

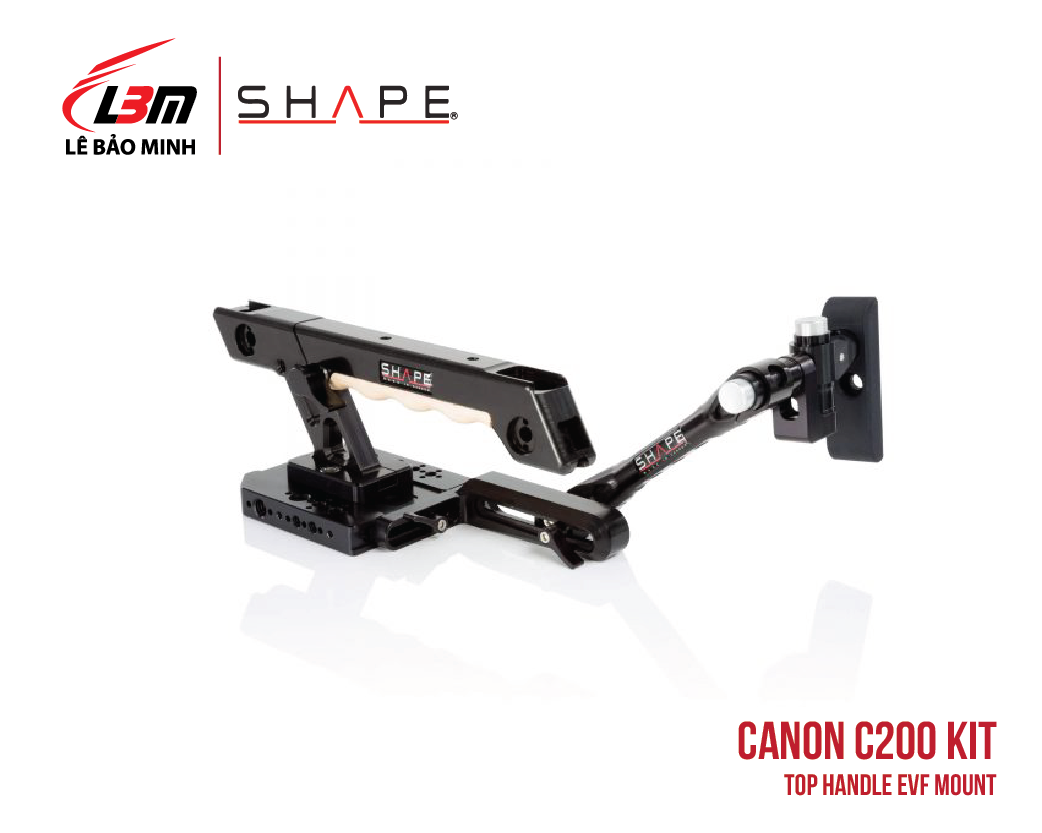

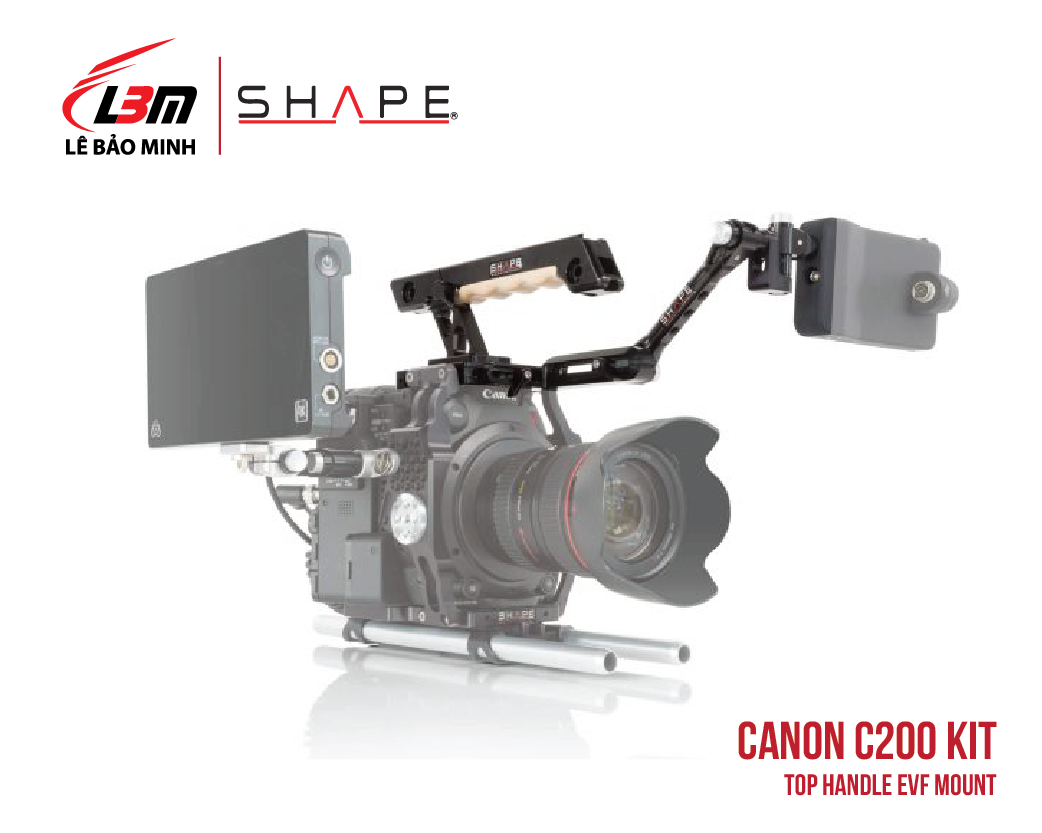

Lightweight and robust CNC machined aluminum top plate  and top handle designed to give you a solid and comfortable grip for the manipulation of your camera. The top plate offers an array of 1/4″ and 3/8″ threads which can be used to attach options around the camera, for example, our top handle and EVF mount bracket (also compatible with Canon’s C200 original top handle).

The top handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. You can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your camera to your lens type. The Extendable & Sophisticated Camera Top Handle is designed with a socket to attach a 15 mm rod clamp (15CTH), perfect  to insert the view finder bracket arm. The view finder bracket arm feature SHAPE patented push-button technology. By simply pressing the button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock. In addition, the view finder L-Bracket is designed with two ratchet knobs for horizontal and vertical adjustment of your view finder.

The handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. You can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your camera to your lens type. The top handle also features six threaded holes perfect to attach and manipulate more camera accessories like our Push-Button arm (RPB2A).

  • A ‘15 mm Rod Clamp’ (15CTH) can be mounted in the front section of the Top Handle, allowing you to attach our ‘15 mm Push-Button View Finder Bracket Arm’ or any other 15 mm LW stud
  • Several threaded holes to optimize your rig with our ‘ REVOLT Push-Button Magic Arm Series,’ designed to attach and manipulate your camera monitor or other camera accessories
  • (4) Four ¼-20 threaded holes (Front). Perfect for more attachment options
  • (2) Two Hot Shoe Brackets (Front and Back of Handle).
  • View finder bracket arm designed with SHAPE patented push-button technology
